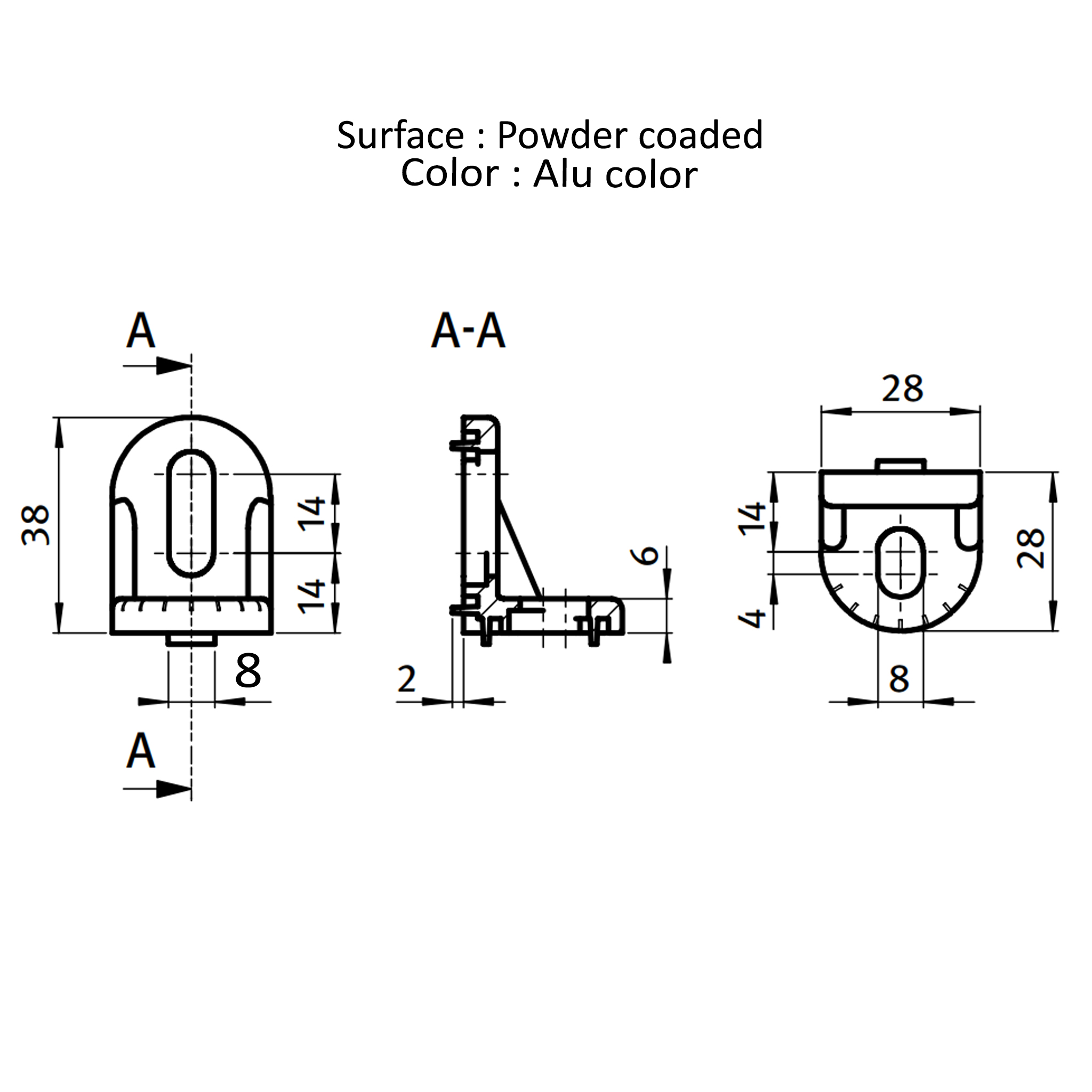

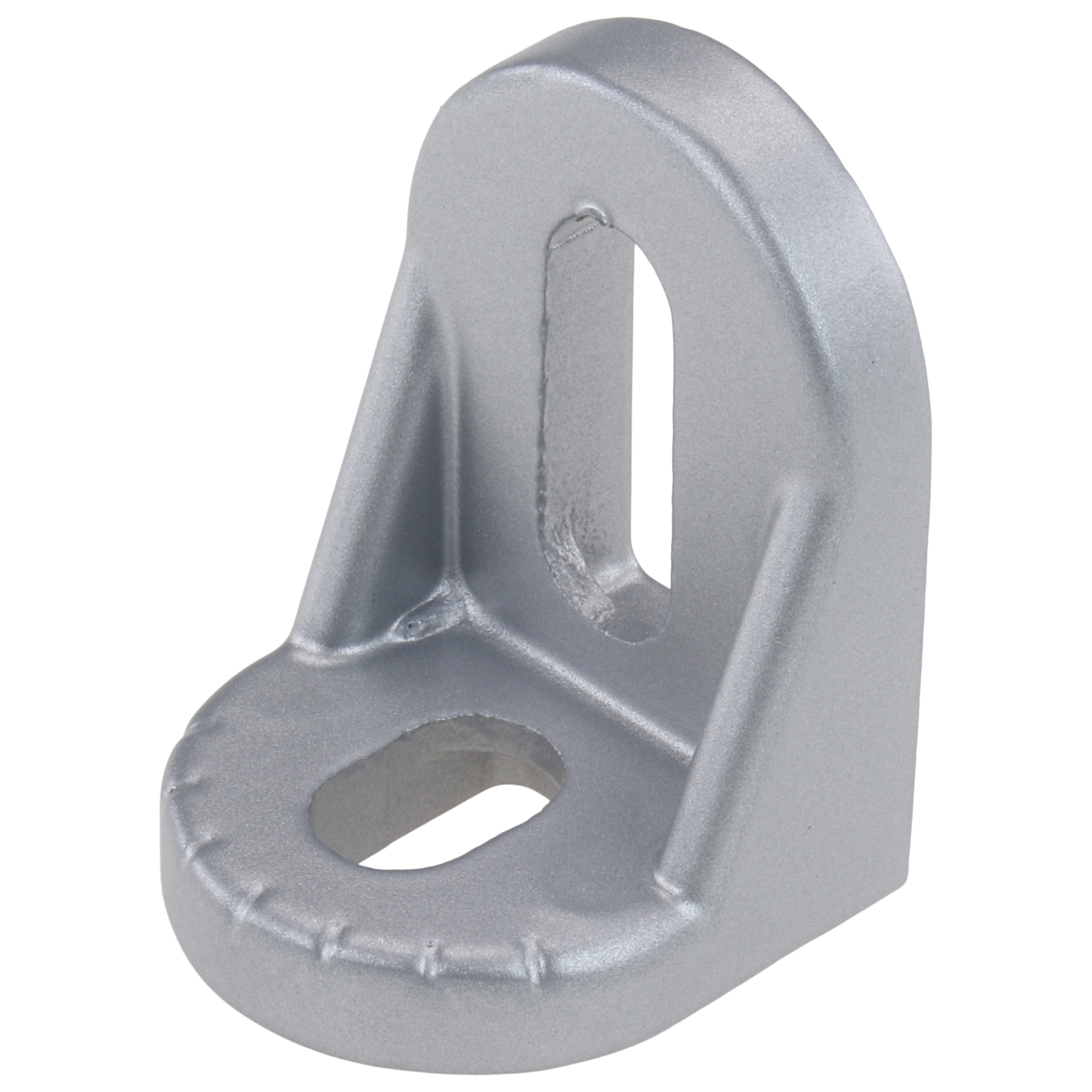

Angle, Turning Angle, 28x28x38, Aluminum die-cast, powder-coated, aluminum colored
Product number:
12785
EAN:
4054775127857
Angle, Turning Angle, 28x28x38, Aluminum die-cast, powder-coated, aluminum colored, To connect aluminum profiles at angle between 0° to 180°
| Colour: | aluminum colored |
|---|---|
| Compatibility: | Type I / B |
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| F Article No.: | 127707 |
| Grid dimension: | 30 mm |
| Location - Mounting: | screw-on |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Aluminium die-cast |
| Selection Number: | 093WG302N08S04 |
| Setinfo: | without screw(s) |
| Size (in mm): | 28x28x38 |
| Slot: | 8 |
| Surface: | powder coated |
| Technical property: | swiveling |
| Weight (in g): | 17 |
