Automatic Butt-Connector, Slot 10, Type B, light profile, Steel, zink plated
Product number:
15701
EAN:
4054775157014

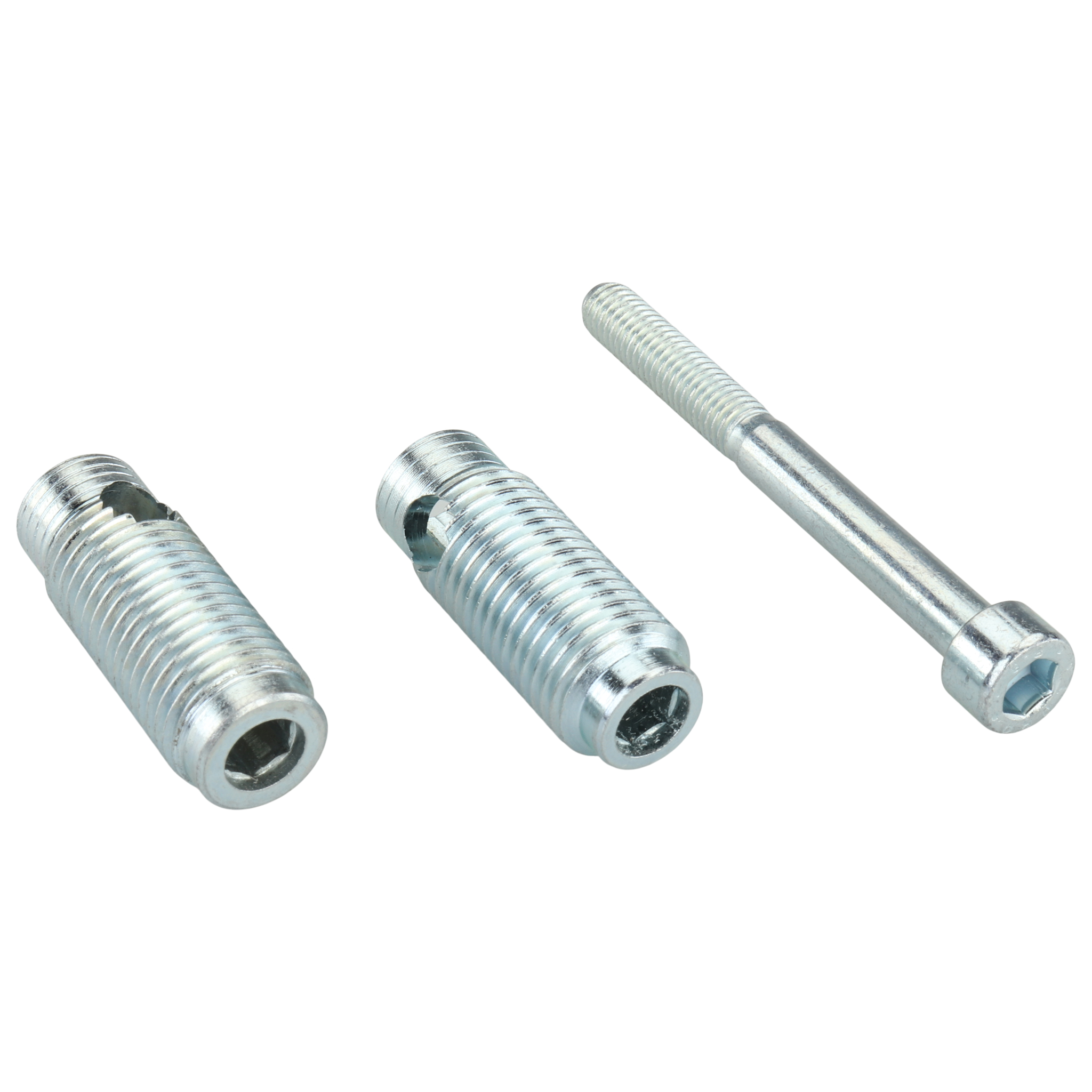

Automatic Butt-Connector, 70x13x13, Steel, zink plated, For fast, universal and stable connection of aluminum profiles at the front. The automatic butt connector is screwed into two opposing profile grooves on the face side, whereby the thread is cut by itself.
No machining of the profile necessary
Self-cutting thread
No machining of the profile necessary
Self-cutting thread
| Additional Property: | wrench size 5 |
|---|---|
| Compatibility: | Type B |
| Compatible 3D Article No.: | 3DMC30087, 3DMC30087, 3DMC30097, 3DMC30107 |
| Compatible F Part No.: | 099G103M6 |
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Grid dimension: | 45 mm |
| Location - Mounting: | self aligning turn-in |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Steel |
| Model: | for light profile |
| Setinfo: | complete |
| Size (in mm): | 70x13x13 |
| Slot: | 10 |
| Surface: | zinc plated |
| Technical property: | self cutting |
| Weight (in g): | 57 |
