Automatic Butt-Connector, Slot 6, Type I, Stainless steel, blanc
Product number:
15696
EAN:
4054775156963

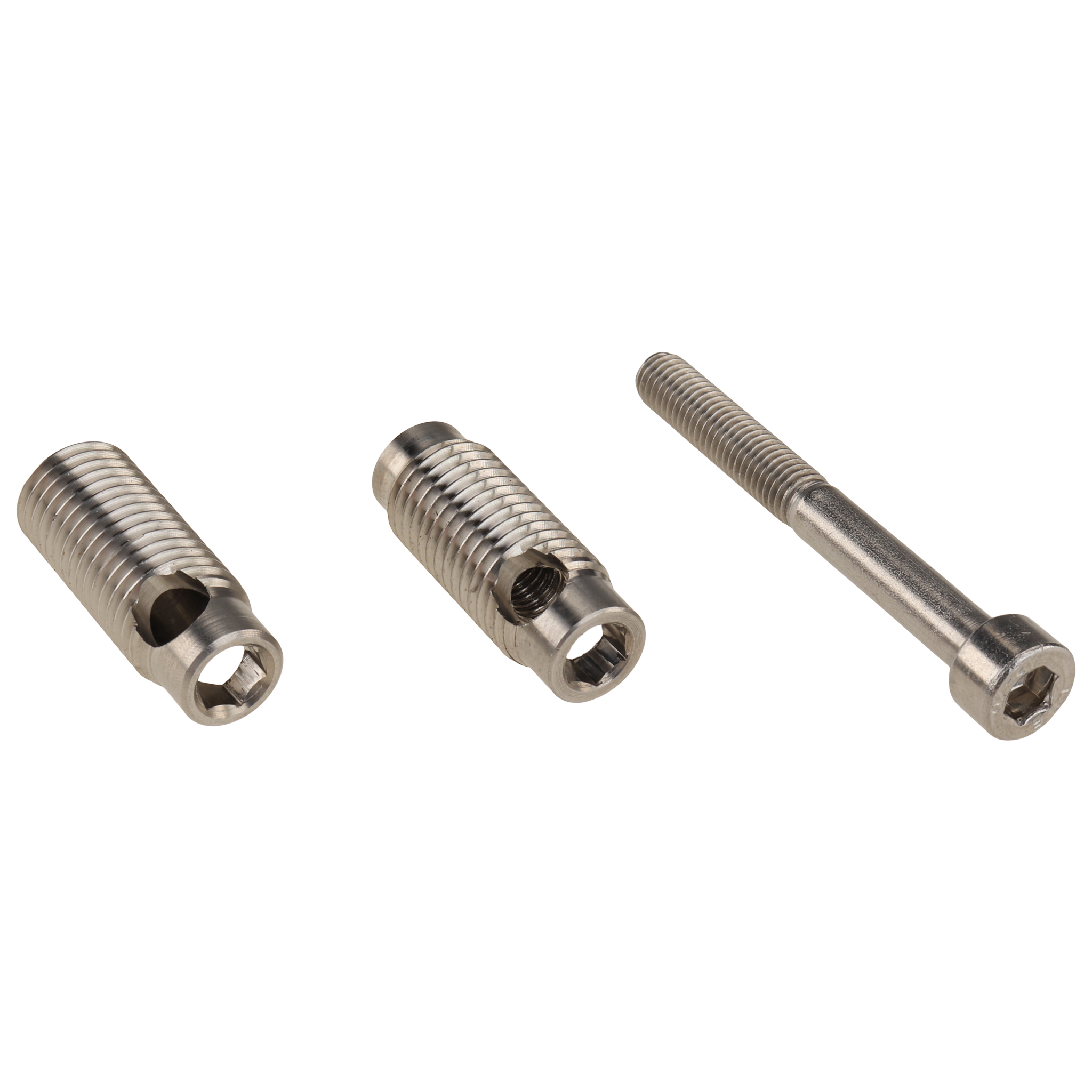

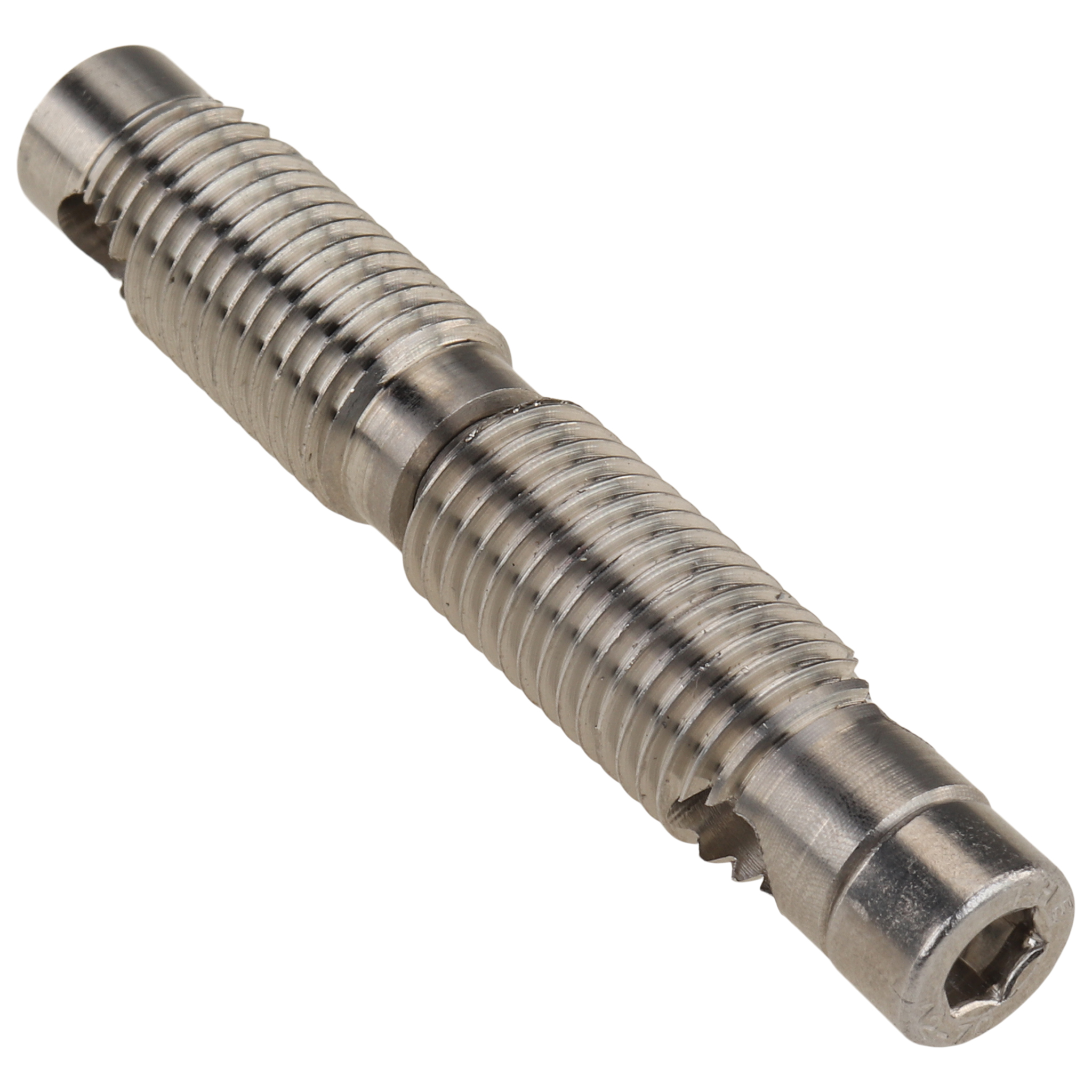

Automatic Butt-Connector, 54x10x10, Stainless steel, blanc, For fast, universal and stable connection of aluminum profiles at the front. The automatic butt connector is screwed into two opposing profile grooves on the face side, whereby the thread is cut by itself.
No machining of the profile necessary
Self-cutting thread
No machining of the profile necessary
Self-cutting thread
| Additional Property: | wrench size 5 |
|---|---|
| Compatibility: | Type I |
| Compatible 3D Article No.: | 3DMC30082, 3DMC30082, 3DMC30092, 3DMC30102 |
| Compatible F Part No.: | 099G061M5E |
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Grid dimension: | 30 mm |
| Location - Mounting: | self aligning turn-in |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Stainless steel |
| Setinfo: | complete |
| Size (in mm): | 54x10x10 |
| Slot: | 6 |
| Surface: | blanc |
| Technical property: | self cutting |
| Weight (in g): | 24 |
