Automatic Fastener, Slot 8, Type B, Steel, zink plated
Product number:
15491
EAN:
4054775154914

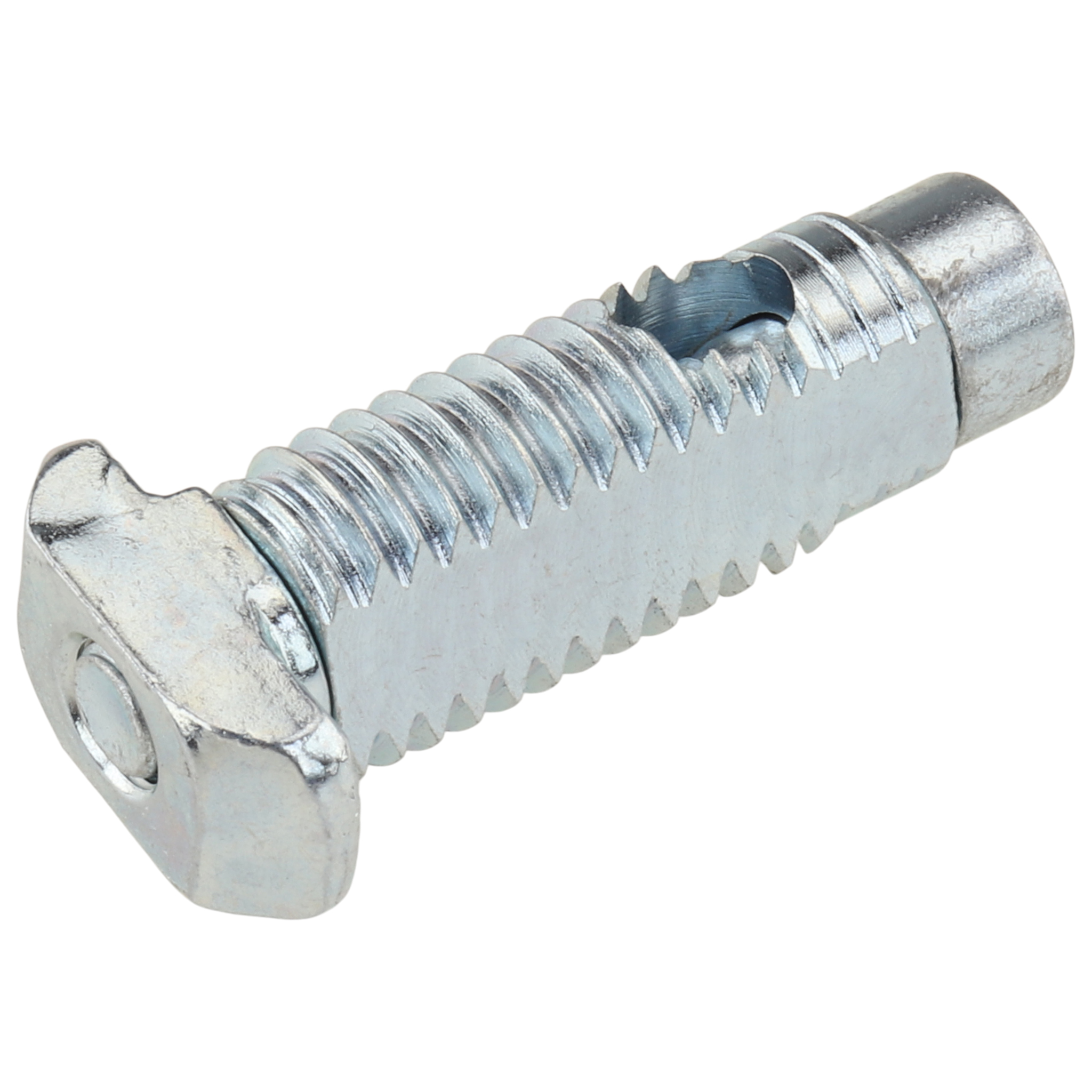

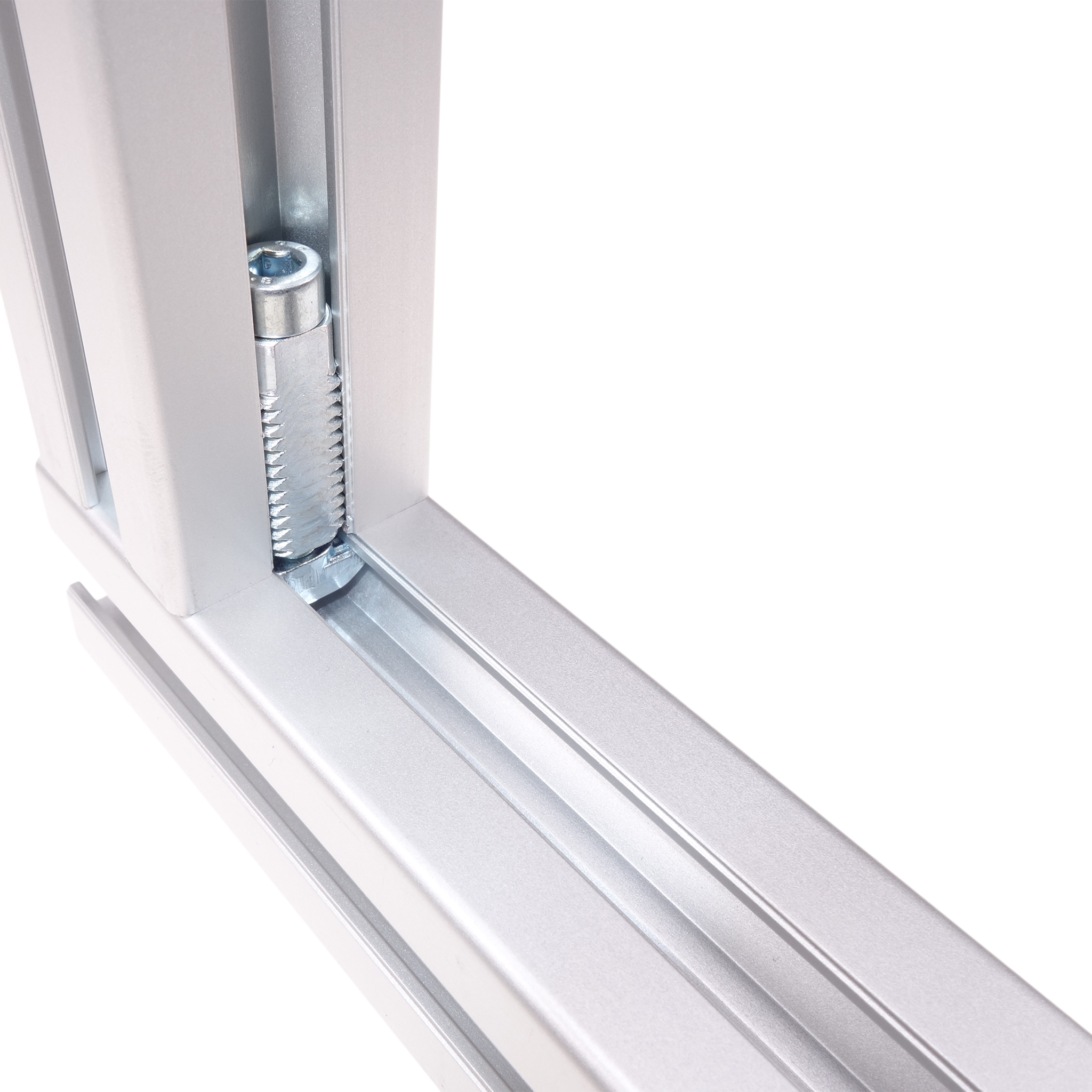

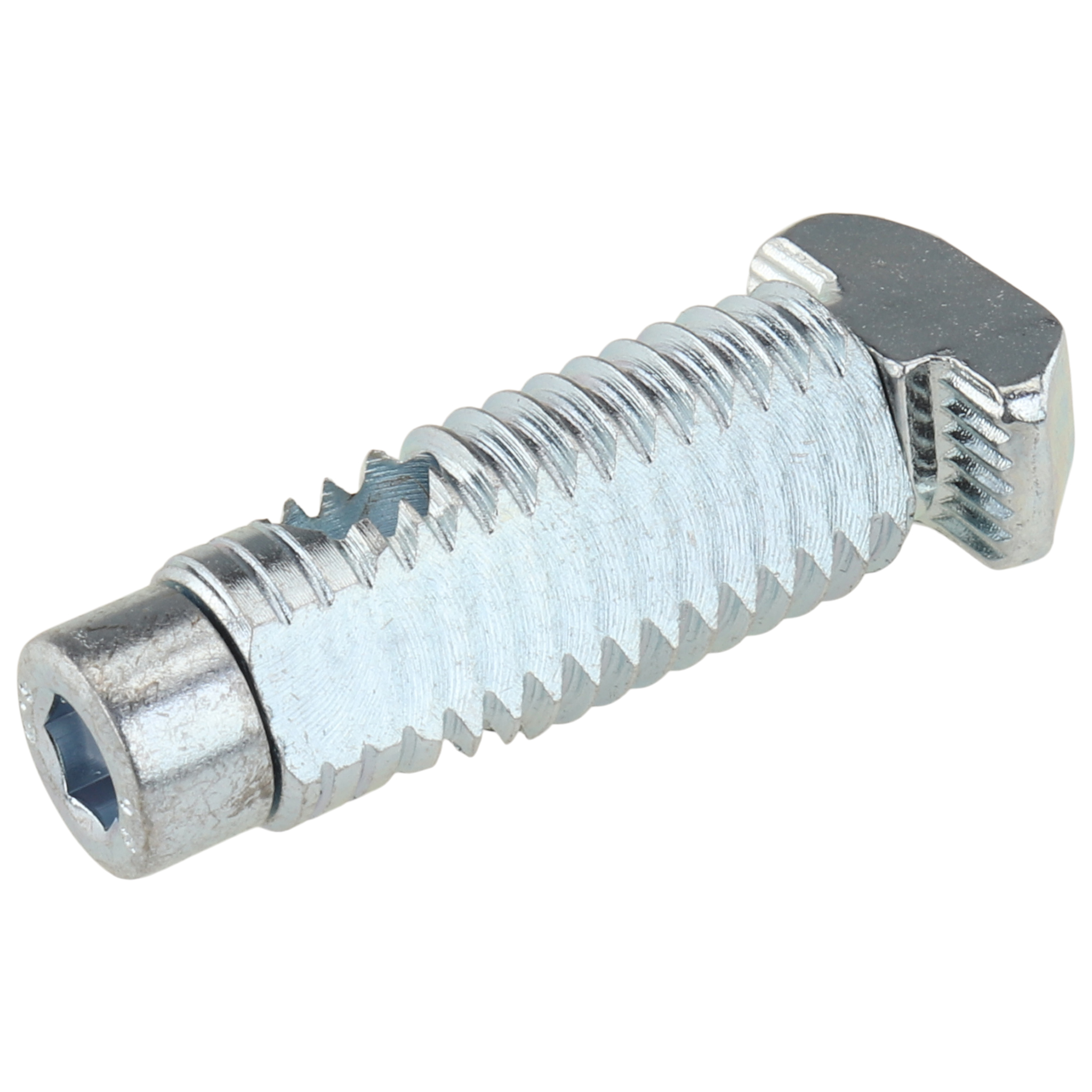

Connector, Automatic Fastener, 36x16x11, Steel, zink plated, For fast, universal and stable connection of aluminium profiles. The automatic connector is screwed into a profile slot on the front side, cutting the thread itself.
No machining of the profile necessary
Self-tapping thread
Left-hand thread
Subsequent installation in existing constructions possible
Only hexagon wrenches SW 4 and 5 required.
Cylinder head screw M5x30
No machining of the profile necessary
Self-tapping thread
Left-hand thread
Subsequent installation in existing constructions possible
Only hexagon wrenches SW 4 and 5 required.
Cylinder head screw M5x30
| 3DMC Article No.: | 3DMC30031, 3DMC30031, 3DMC30041, 3DMC30051 |
|---|---|
| Compatibility: | Type B |
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| F Article No.: | 129449 |
| Grid dimension: | 30 mm |
| Location - Mounting: | self aligning turn-in |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Steel |
| Selection Number: | 099G084 |
| Setinfo: | with screw and hammer nut |
| Size (in mm): | 36x16x11 |
| Slot: | 8 |
| Surface: | zinc plated |
| Technical property: | self cutting |
