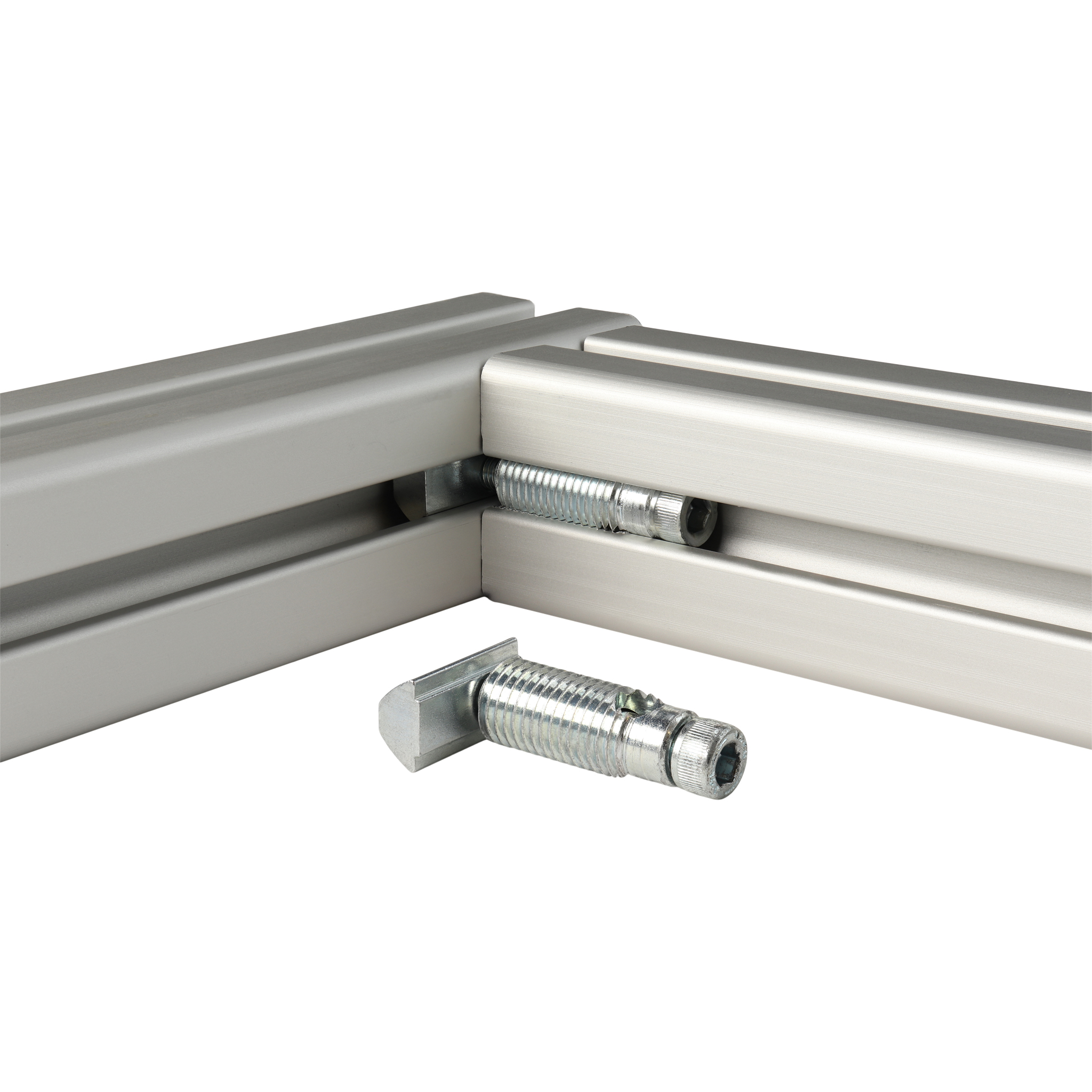

Automatic Fastener, Slot 8, Type I, Steel, zink plated
Product number:
15496
EAN:
4054775154969
Connector, Automatic Fastener, 48.3x13.5x22, Steel, zink plated, For fast, universal and stable connection of aluminium profiles. The automatic connector is screwed into a profile slot on the front side, cutting the thread itself.
No machining of the profile necessary
Self-tapping thread
Left-hand thread
Subsequent installation in existing constructions possible
Only hexagon wrenches SW 5 and 6 required.
Cylinder head screw M6x40
No machining of the profile necessary
Self-tapping thread
Left-hand thread
Subsequent installation in existing constructions possible
Only hexagon wrenches SW 5 and 6 required.
Cylinder head screw M6x40
| 3DMC Article No.: | 3DMC30036, 3DMC30036, 3DMC30046, 3DMC30056 |
|---|---|
| Compatibility: | Type I |
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| F Article No.: | 125299 |
| Grid dimension: | 40 mm |
| Location - Mounting: | self aligning turn-in |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Steel |
| Selection Number: | 099G081 |
| Setinfo: | with screw(s) and T-slot nut(s) |
| Size (in mm): | 48.3x13.5x22 |
| Slot: | 8 |
| Surface: | zink plated |
| Technical property: | self cutting |
