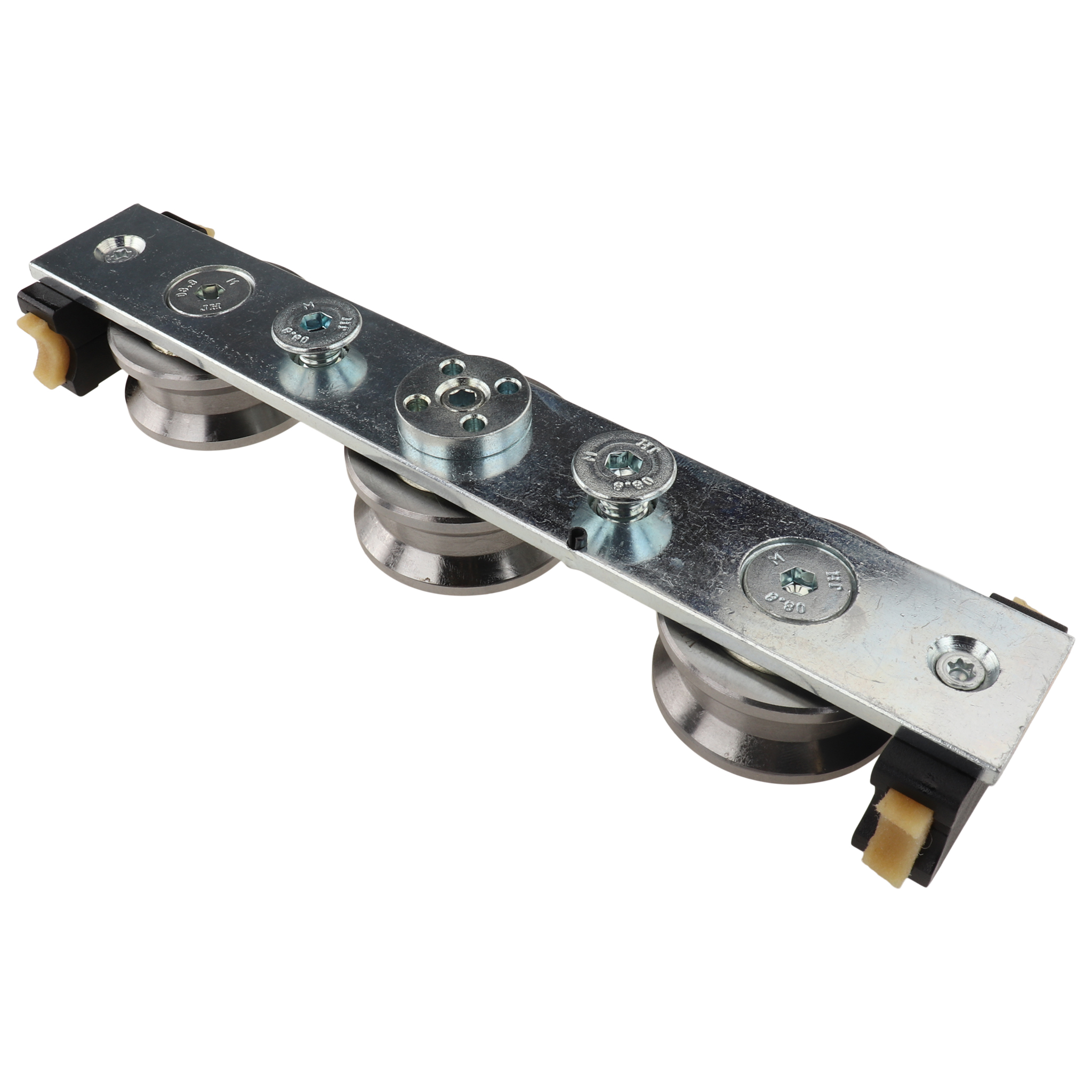

Bearing Set, 199x31x46, Steel, zink plated
Bearing Set, 199x31x46, Steel, zink plated, For the construction of bearing units
Assembly with machining to C-slide profile I
To linearly guide loads
Steel rollers with ball bearings runs directly on shaft D=14 mm
To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washer
Assembly with machining to C-slide profile I
To linearly guide loads
Steel rollers with ball bearings runs directly on shaft D=14 mm
To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washer
| Compatibility: | Type I |
|---|---|
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| F Article No.: | 146939 |
| Location - Mounting: | screw-on |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Steel |
| Selection Number: | 093CID14S199S01 |
| Setinfo: | complete |
| Size (in mm): | 199x31x46 |
| Surface: | zinc plated |
| Technical property: | Ball Bearing |
| Weight (in g): | 274 |
