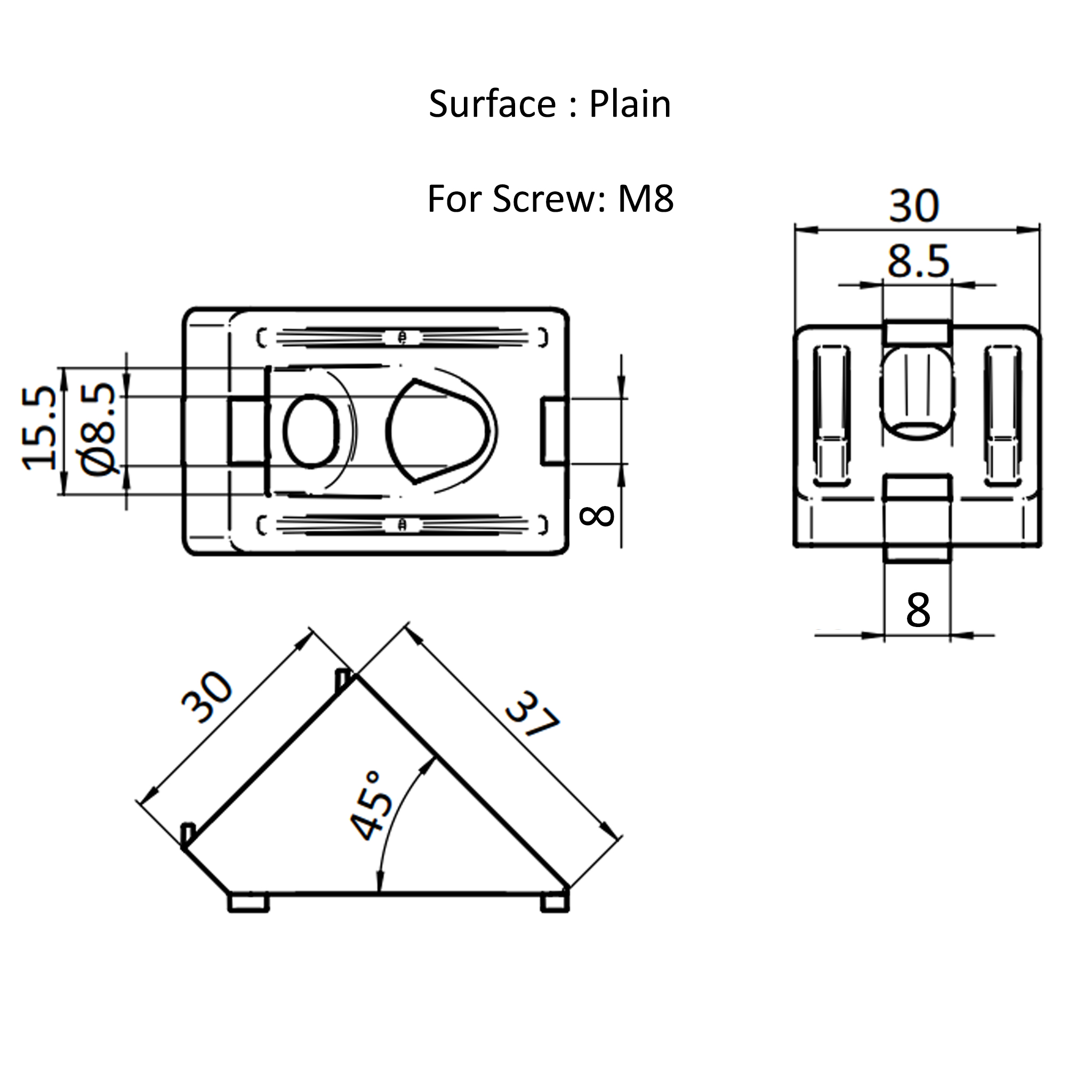

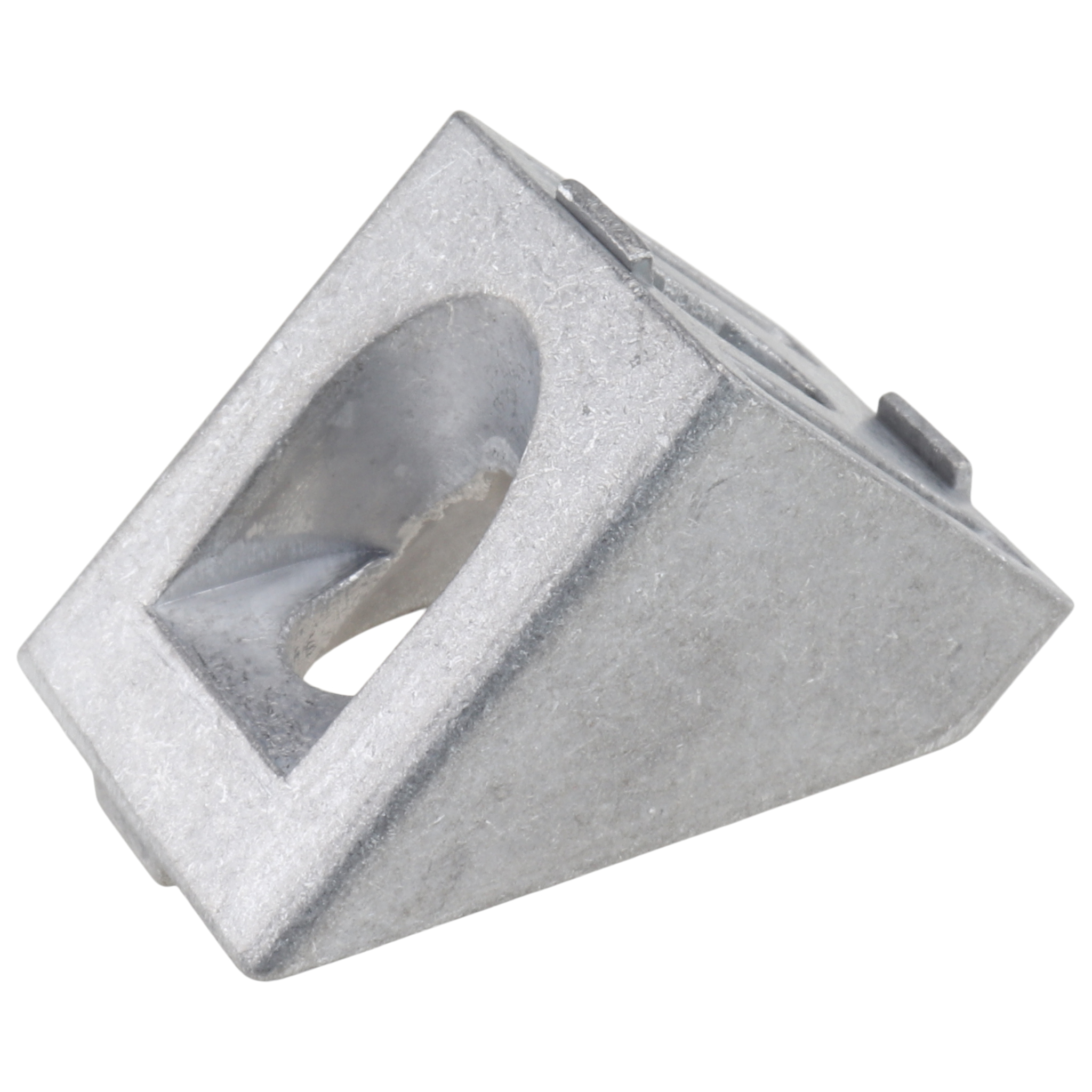

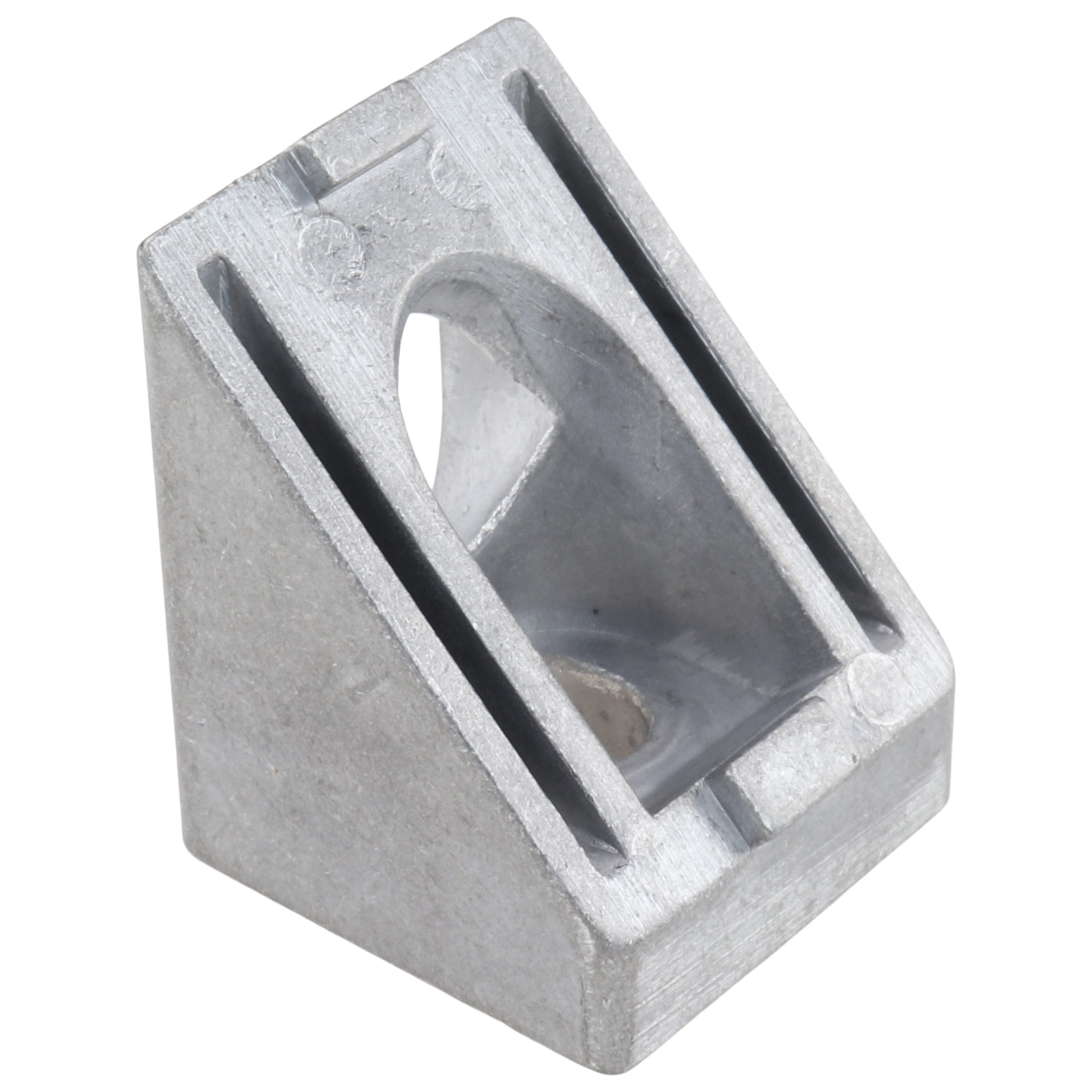

Connector, Angle Connector 45°, 30x30x30, Aluminum die-cast, powder-coated, aluminum colored
Product number:
12585
EAN:
4054775125853
Connector, Angle Connector 45°, 30x30x30, Aluminum die-cast, powder-coated, aluminum colored, To connect two aluminum profiles at 45°
| Additional Property: | for screw M8 |
|---|---|
| Colour: | aluminum colored |
| Compatibility: | Type B |
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| F Article No.: | 136933 |
| Grid dimension: | 30 mm |
| Location - Mounting: | screw-on |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Aluminiumdruckguß |
| Selection Number: | 093WS30245N08 |
| Setinfo: | without screw(s) |
| Size (in mm): | 30x30x30 |
| Slot: | 8 |
| Surface: | powder-coated |
| Technical property: | 45° |
| Weight (in g): | 34 |
