Connector, Central Connector, 33x19x11, Steel, zink plated
Product number:
12394
EAN:
4054775123941

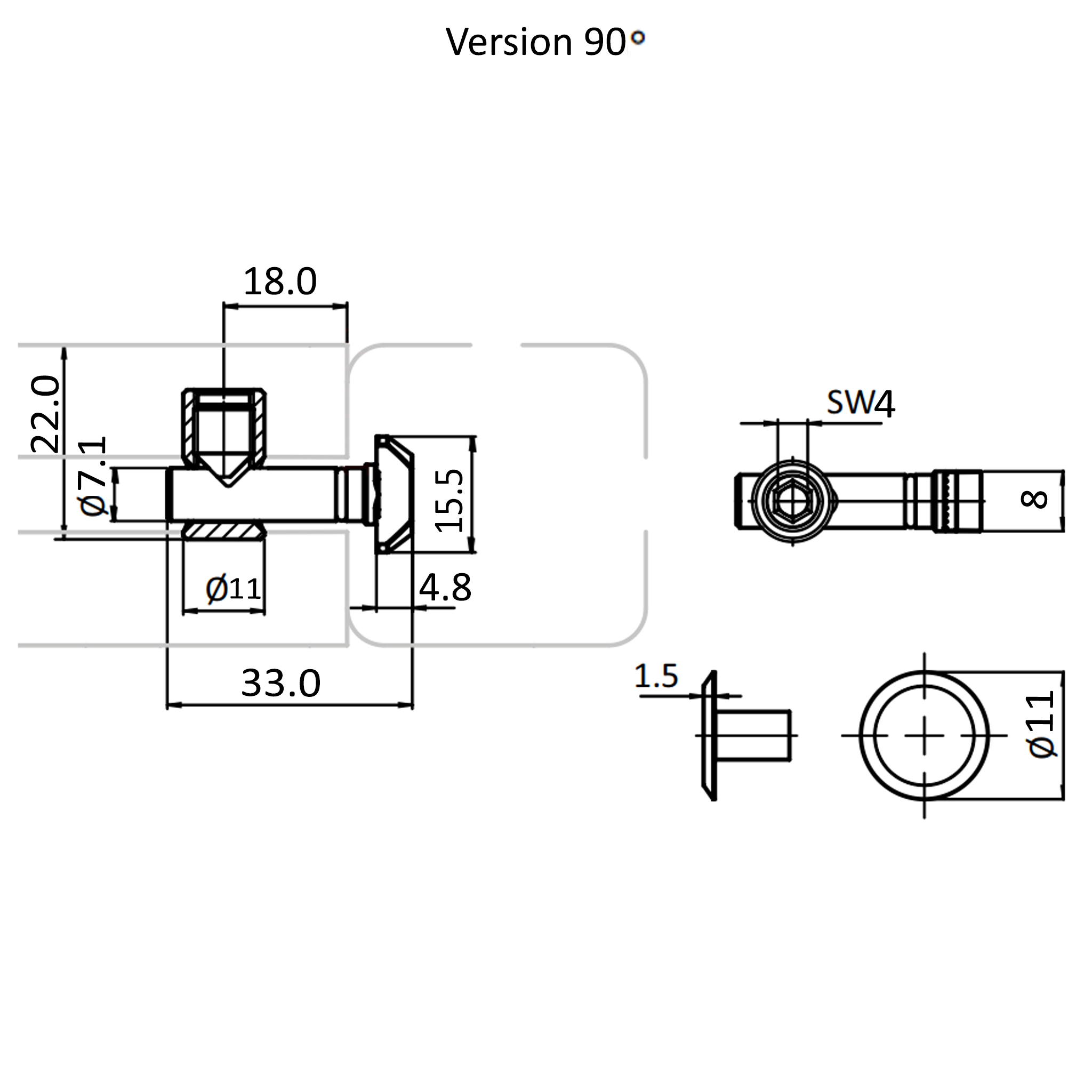

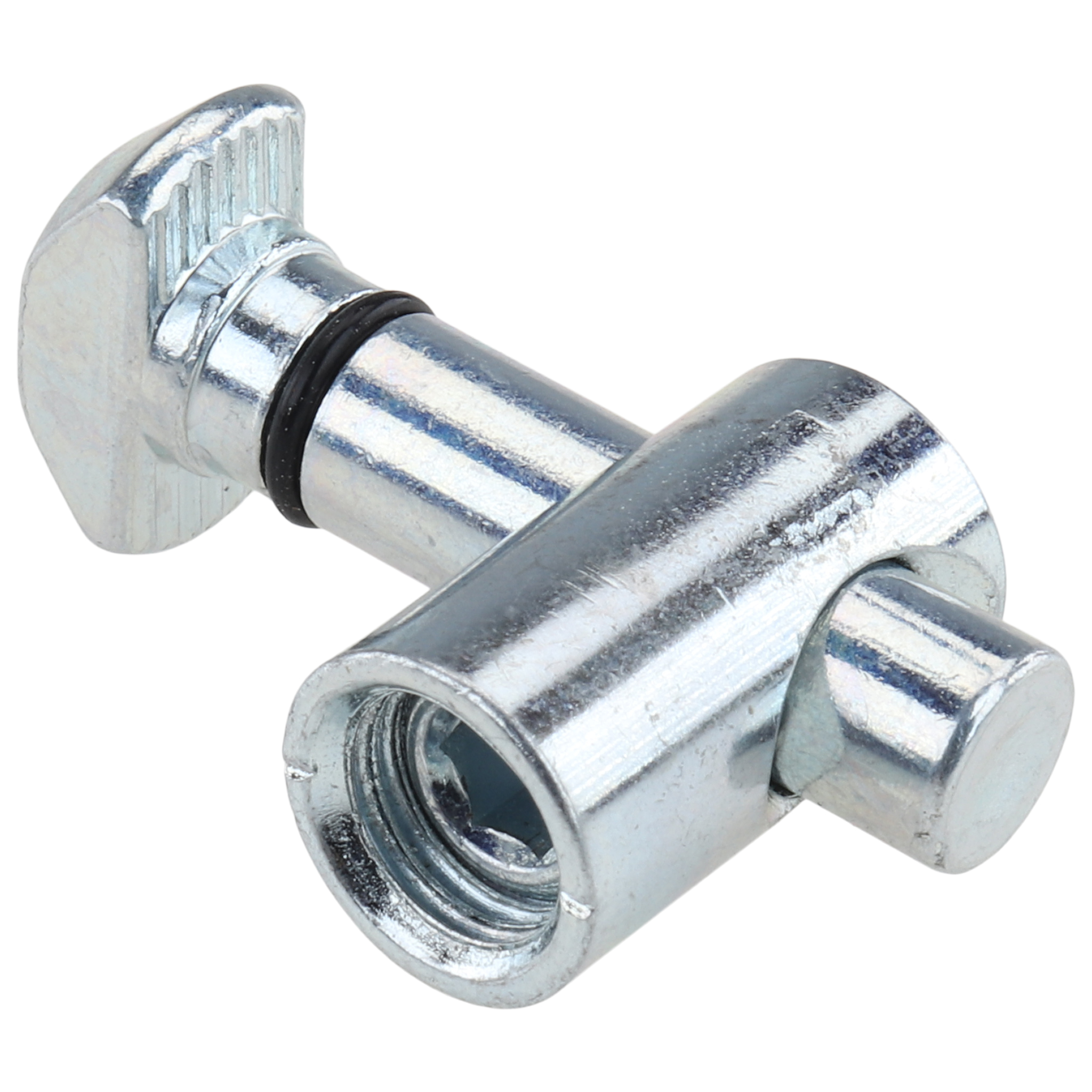

Connector, Central Connector, 33x19x11, Steel, zink plated, To connect two aluminum profiles at right angles
a blind or through hole must be drilled through one of the profiles to provide access to the tightening screw
a blind or through hole must be drilled through one of the profiles to provide access to the tightening screw
| Additional Property: | wrench size 4 |
|---|---|
| Compatibility: | Type B |
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| F Article No.: | 112704 |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Steel |
| Selection Number: | 099B08110790 |
| Setinfo: | without cover cap |
| Size (in mm): | 33x19x11 |
| Slot: | 8 |
| Surface: | zink plated |
| Weight (in g): | 20 |
