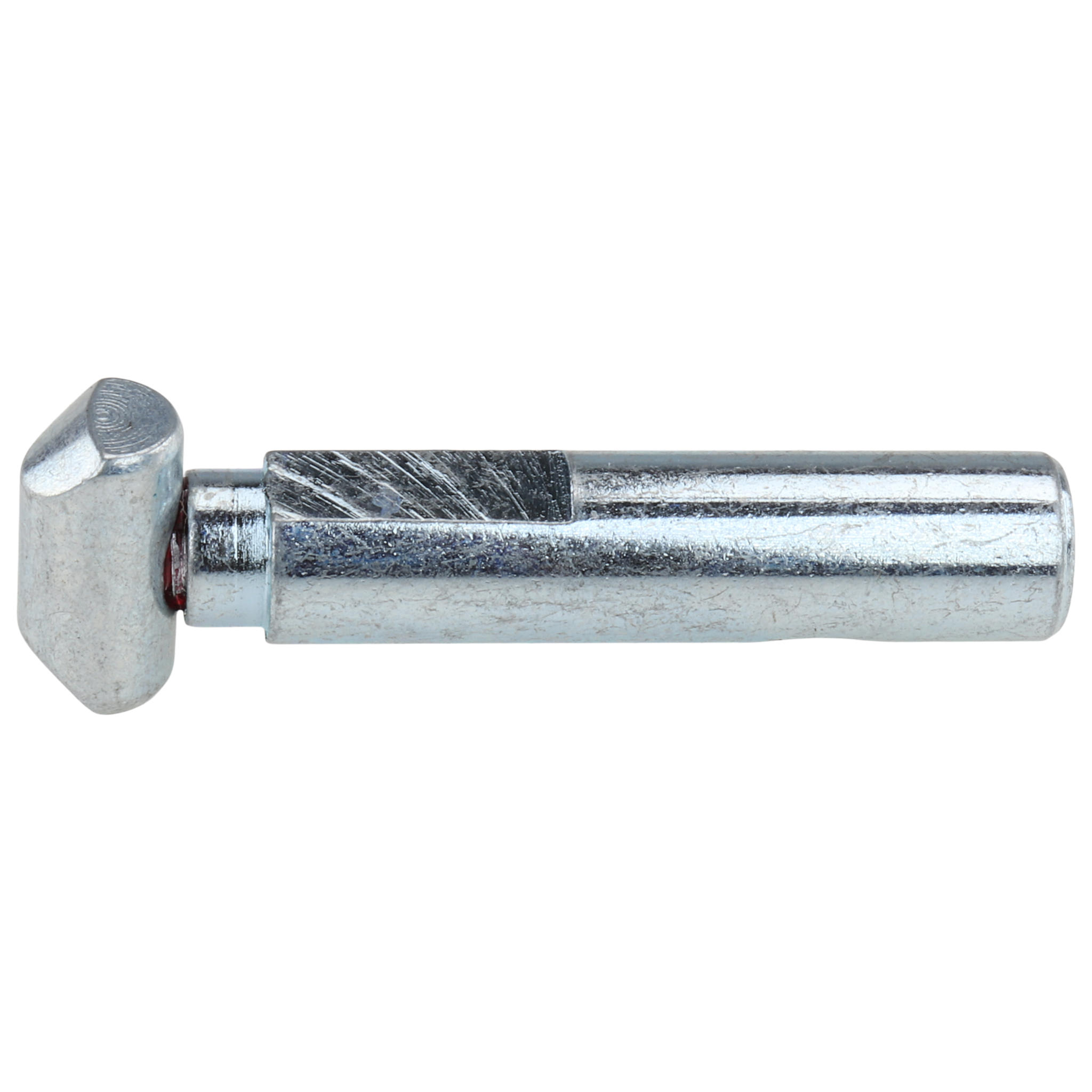

Connector, Mitre Connector, 53x34x20, Steel, zink plated
Product number:
12801
EAN:
4054775128014
Connector, Mitre Connector, 53x34x20, Steel, zink plated, End-to-end connection of an aluminum profile with a mitre cut (cut 45° - 90°) to another aluminumprofile
before the application a hole with D 8.2 mm lateral must be drilled
with T-slot nut and threaded pin with AF 4
before the application a hole with D 8.2 mm lateral must be drilled
with T-slot nut and threaded pin with AF 4
| Compatibility: | Type B |
|---|---|
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| F Article No.: | 137886 |
| Grid dimension: | 45 mm |
| Location - Mounting: | screw-on |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Steel |
| Selection Number: | 099BG10081090 |
| Setinfo: | complete |
| Size (in mm): | 53x34x20 |
| Slot: | 10 |
| Surface: | zink plated |
| Weight (in g): | 57 |
