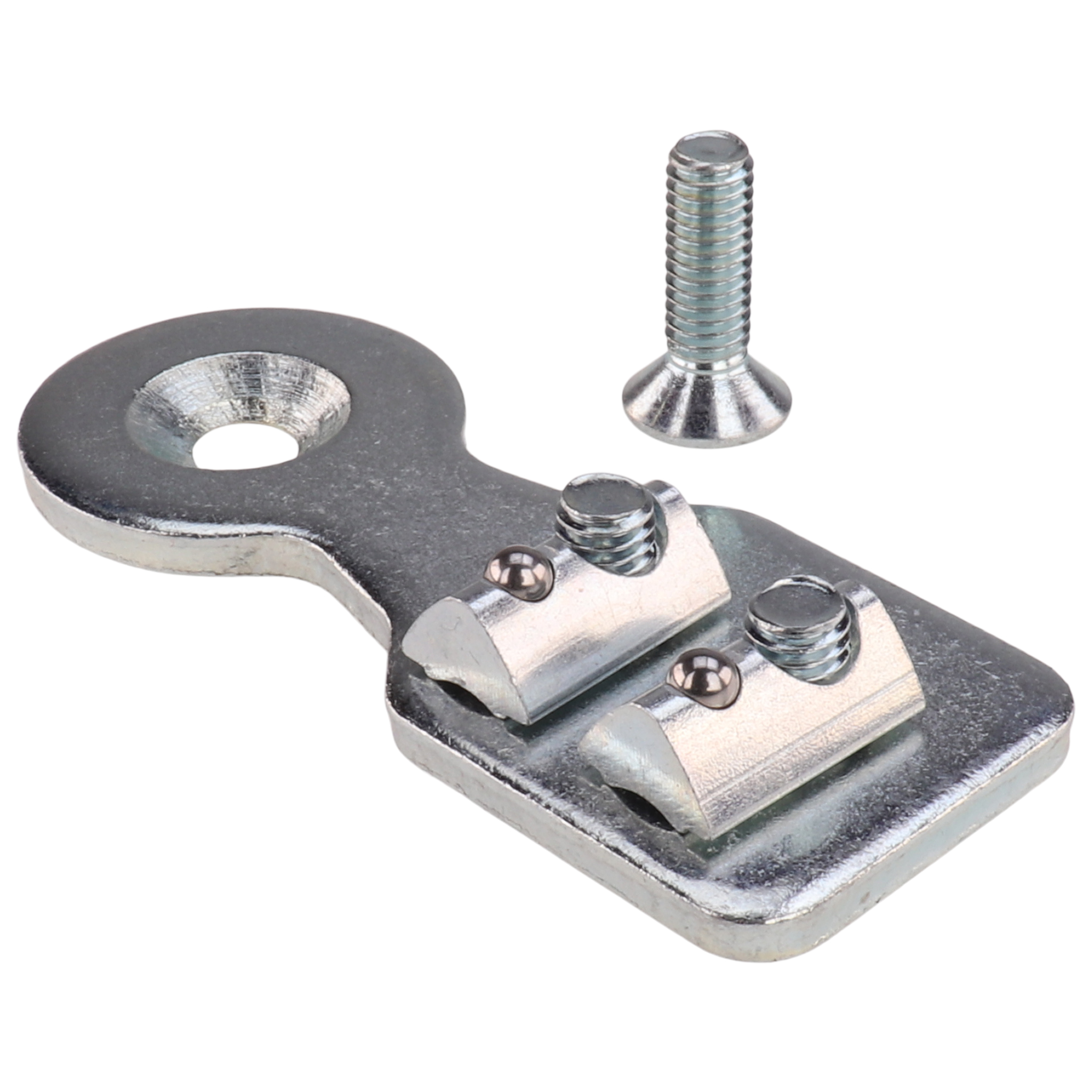

Connector Plate, 75x50x4, Steel, zink plated
Product number:
11661
EAN:
4054775116615
Connector Plate, 75x50x4, Steel, zink plated, To connect a tubular frame profile with D 30 mm outer diameter with an aluminum profile at right angles
Screw connetion to the core hole M6 of the tubular frame profile D 30 mm or to the threaded sleeve ALD30 M6 for tubular frame profiles
Screw connetion to the core hole M6 of the tubular frame profile D 30 mm or to the threaded sleeve ALD30 M6 for tubular frame profiles
| Compatibility: | Type I |
|---|---|
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| F Article No.: | 146463 |
| Grid dimension: | D30 mm |
| Location - Mounting: | screw-on |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Steel |
| Selection Number: | 093VAD30V |
| Setinfo: | 1 T-Verbinderplatte D301 Doppelnutenstein - Nut 8 - 2x M62 Schrauben DIN 7991 - M6 x 141 Schraube DIN 7991 - M6 x 20 |
| Size (in mm): | 75x50x4 |
| Surface: | zink plated |
| Technical property: | 90° |
| Weight (in g): | 71 |
