Double System Arm I40L 695, 695x40x110, Aluminum, anodized, aluminum colored
| Quantity | Unit price |
|---|---|
| To 9 |
€571.87*
|
| To 99 |
€486.09*
|
| From 100 |
€315.96*
|
Product number:
11733
EAN:
4054775117339

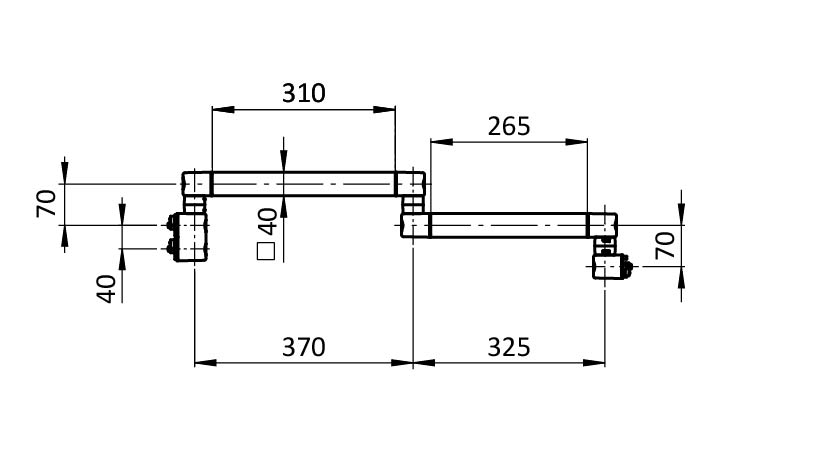

Double System Arm I40L 695, 695x40x110, Aluminum, anodized, aluminum colored, Stable double pivot arm with a reach of approximately 695 mm and various connection options
pivotable360°
pre-assembled System arm can be attached lateral, transverse, or on the face of the profile
if attached on the front'face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
pivotable360°
pre-assembled System arm can be attached lateral, transverse, or on the face of the profile
if attached on the front'face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
| Additional Property: | Friction Torque: 3,0 Nm |
|---|---|
| Colour: | aluminum colored |
| Compatibility: | Type I |
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| F Article No.: | 148284 |
| Grid dimension: | 40 mm |
| Location - Mounting: | screw-on |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Aluminium |
| Max. load (in kg): | 12 |
| Selection Number: | 6FG40ND40L695N08 |
| Setinfo: | complete |
| Size (in mm): | 695x40x110 |
| Slot: | 8 |
| Surface: | anodized |
| Weight (in g): | 3419 |
