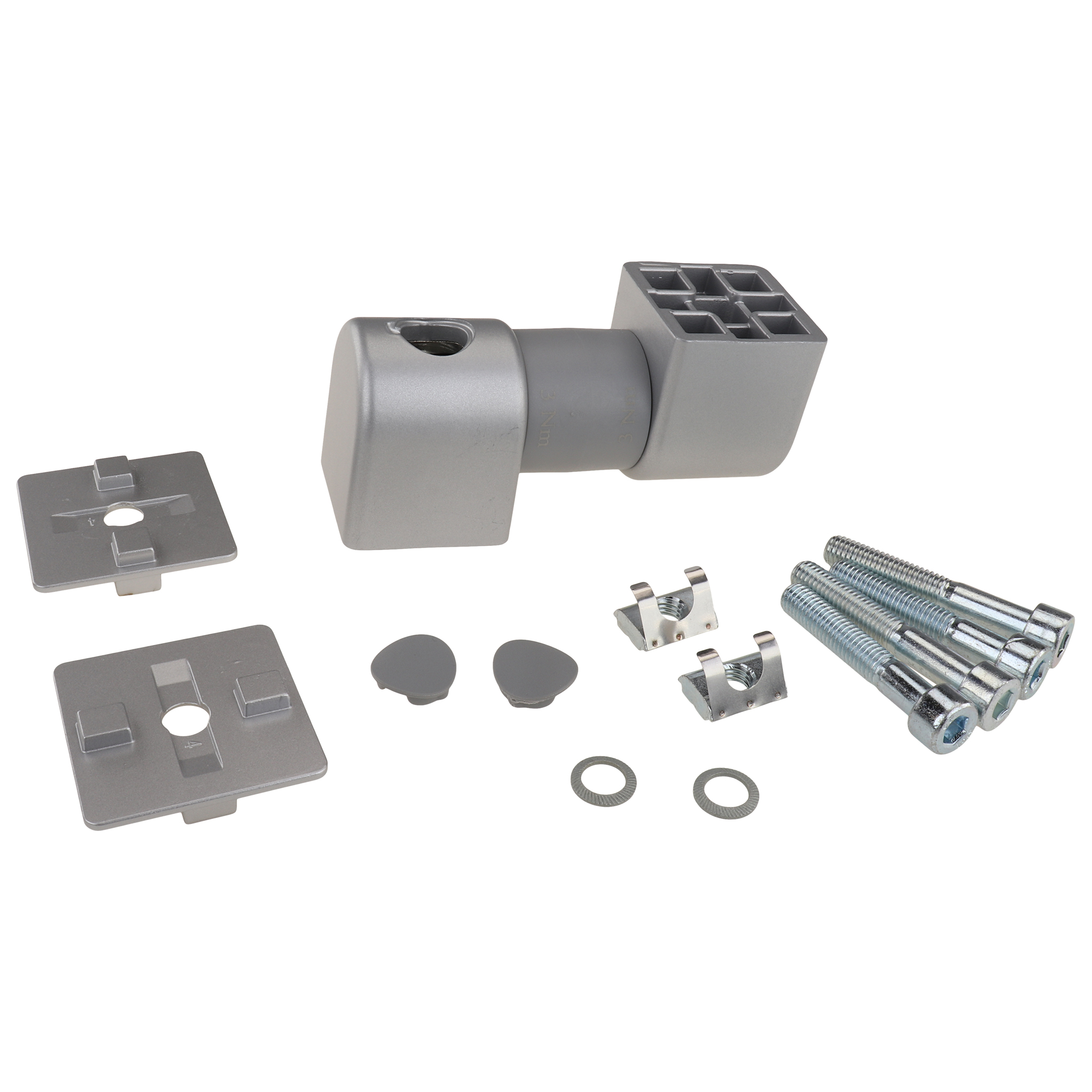

Friction Joint, 40x40x110, Aluminum die-cast, laquered, aluminum colored
| Quantity | Unit price |
|---|---|
| To 9 |
€150.49*
|
| To 99 |
€127.92*
|
| From 100 |
€83.15*
|
Product number:
12676
EAN:
4054775126768
Friction Joint, 40x40x110, Aluminum die-cast, laquered, aluminum colored, Connection joint with friction for the creation of system arms using profile pieces
pivotable 360°
Friction joint can be attached lateral, transverse, or on the face of the profile
if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
pivotable 360°
Friction joint can be attached lateral, transverse, or on the face of the profile
if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
| Colour: | aluminum colored |
|---|---|
| Compatibility: | Type B |
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Grid dimension: | 40 mm |
| Location - Mounting: | screw-on |
| MA max. (in Nm): | 45 |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Aluminiumdruckguß |
| Selection Number: | 061FGN40LN10 |
| Setinfo: | complete |
| Size (in mm): | 40x40x110 |
| Slot: | 10 |
| Surface: | laquered |
| Technical property: | swiveling |
| W (Nm): | 3,0 |
| Weight (in g): | 775 |
