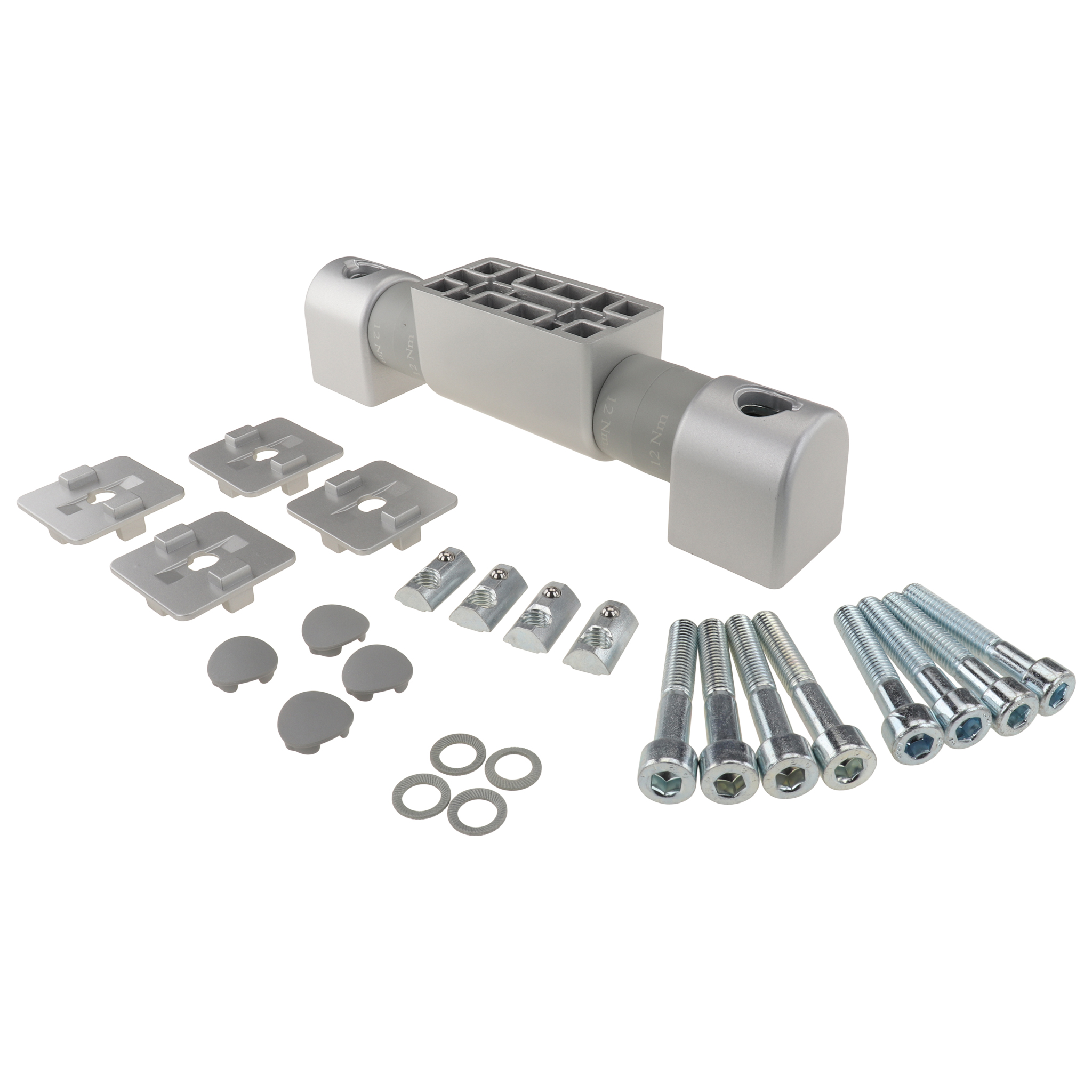

Friction Joint, 40x40x220, Aluminum die-cast, laquered, aluminum colored
| Quantity | Unit price |
|---|---|
| To 9 |
€270.89*
|
| To 99 |
€230.26*
|
| From 100 |
€149.67*
|
Product number:
12714
EAN:
4054775127147
The Sophisticated Friction Joint by 3d24
Introduction
The friction joint with dimensions 40x40x220, made from die-cast aluminum and painted in an elegant aluminum color, is a prime example of engineering excellence. Developed by 3d24, it meets the highest standards of functionality and design. This exceptional product is perfect for applications where precision and durability are paramount.Product Features
The friction joint impresses with its compact design and the use of high-quality materials. The dimensions 40x40x220 allow for optimal integration into various constructions. The aluminum color coating not only gives the product a unique appearance but also provides additional protection against external influences. The core made of die-cast aluminum ensures stability and durability, even under demanding conditions.Advantages
By choosing the friction joint from 3d24, you opt for a solution that impresses with its high precision and load capacity. The use of high-quality die-cast aluminum guarantees exceptional longevity. Thanks to precise manufacturing, smooth movements and easy adjustments are ensured. These characteristics make the product the preferred choice for engineers and designers who rely on reliability.Quality
The quality of the friction joint is unmatched. Every component is carefully inspected to meet the high standards of 3d24. The manufacturing process is subject to strict controls to ensure that each joint meets the requirements of demanding projects. The combination of advanced technology and robust materials makes this product a must for professional applications.Applications
The friction joint is ideally suited for use in industry, mechanical engineering, and the manufacturing of precision devices. Its compact form and versatility make it a flexible component in a wide range of areas. Whether for installation in complex systems or as part of movable structures this product offers the necessary stability and adaptability.Conclusion
The friction joint by 3d24 is more than just a connecting element. It is a solution that convinces with unique quality and sophisticated design. With its combination of functionality, aesthetics, and reliability, it sets new standards in the industry. Choose this joint and benefit from a product developed for the challenges of modern technology. Trust in 3d24 and invest in a product that exceeds your expectations.| Colour: | aluminum colored |
|---|---|

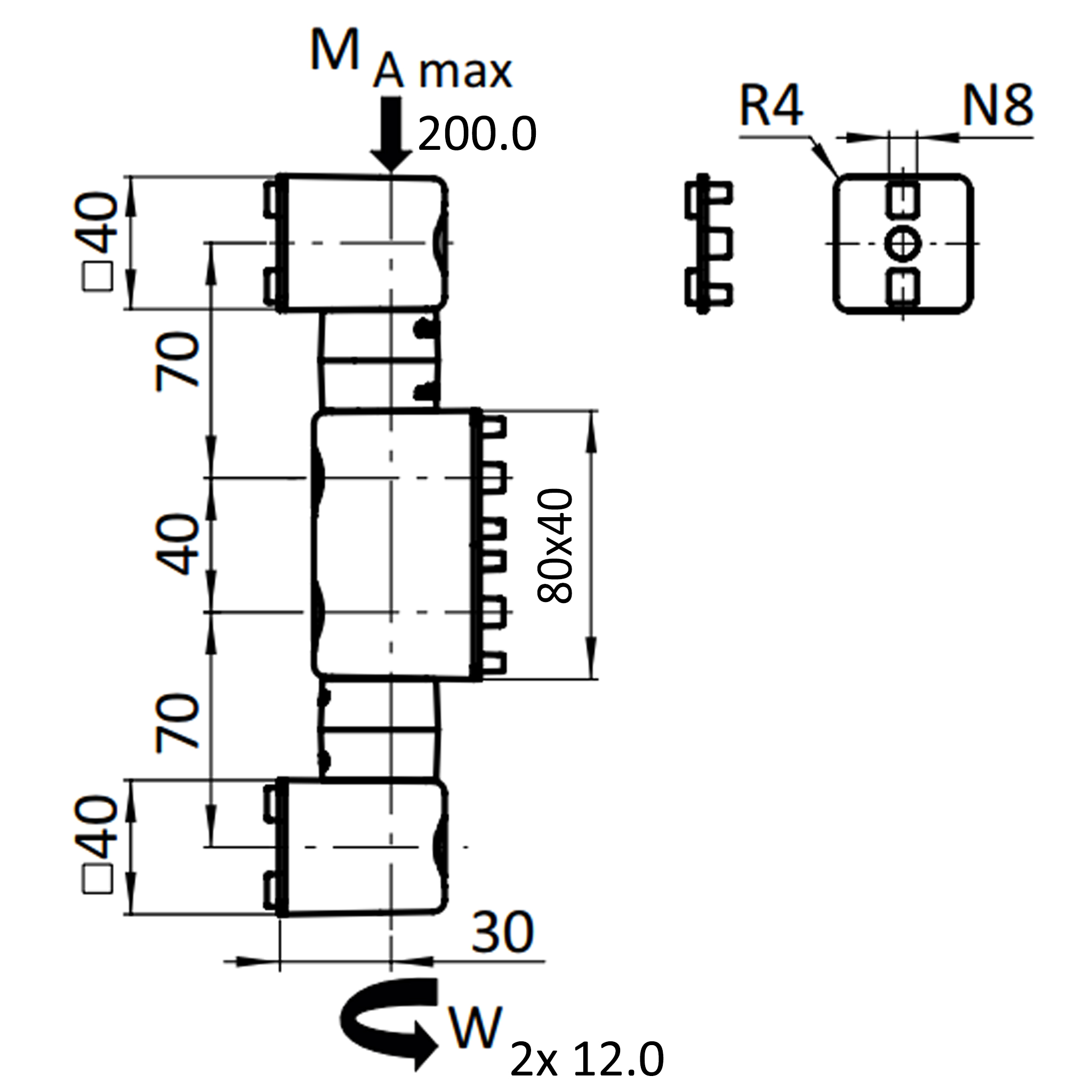

| Compatibility: | Type I |
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| F Article No.: | 144984 |
| Grid dimension: | 80 mm |
| Location - Mounting: | screw-on |
| MA max. (in Nm): | 200 |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Aluminium die-cast |
| Selection Number: | 061FGB80HN08 |
| Setinfo: | complete |
| Size (in mm): | 40x40x220 |
| Slot: | 8 |
| Surface: | lacquered |
| Technical property: | swiveling |
| W (Nm): | 2 x 12,0 |
| Weight (in g): | 1578 |
