Grounding Connector, Slot 8, Type I, Copper, tin plated
| Quantity | Unit price |
|---|---|
| To 9 |
€25.83*
|
| To 99 |
€23.24*
|
| From 100 |
€17.43*
|
Product number:
11539
EAN:
4054775115397
Grounding Connector, 324x24x19, Copper, tin plated, to electrically connect movable parts to each other as flexible grounding wire, and to create ESD electrically conductive connections between juxtaposed frames as equipotential bonding; large conductor cross-section (16 mm²), current carrying capacity 120 A max.
Earth lead: Copper
Assembly material: Steel
Cover caps: Plastic PA, glass fiber reinforced
Earth Lead: Tin plated
Assembly material: Zinc plated

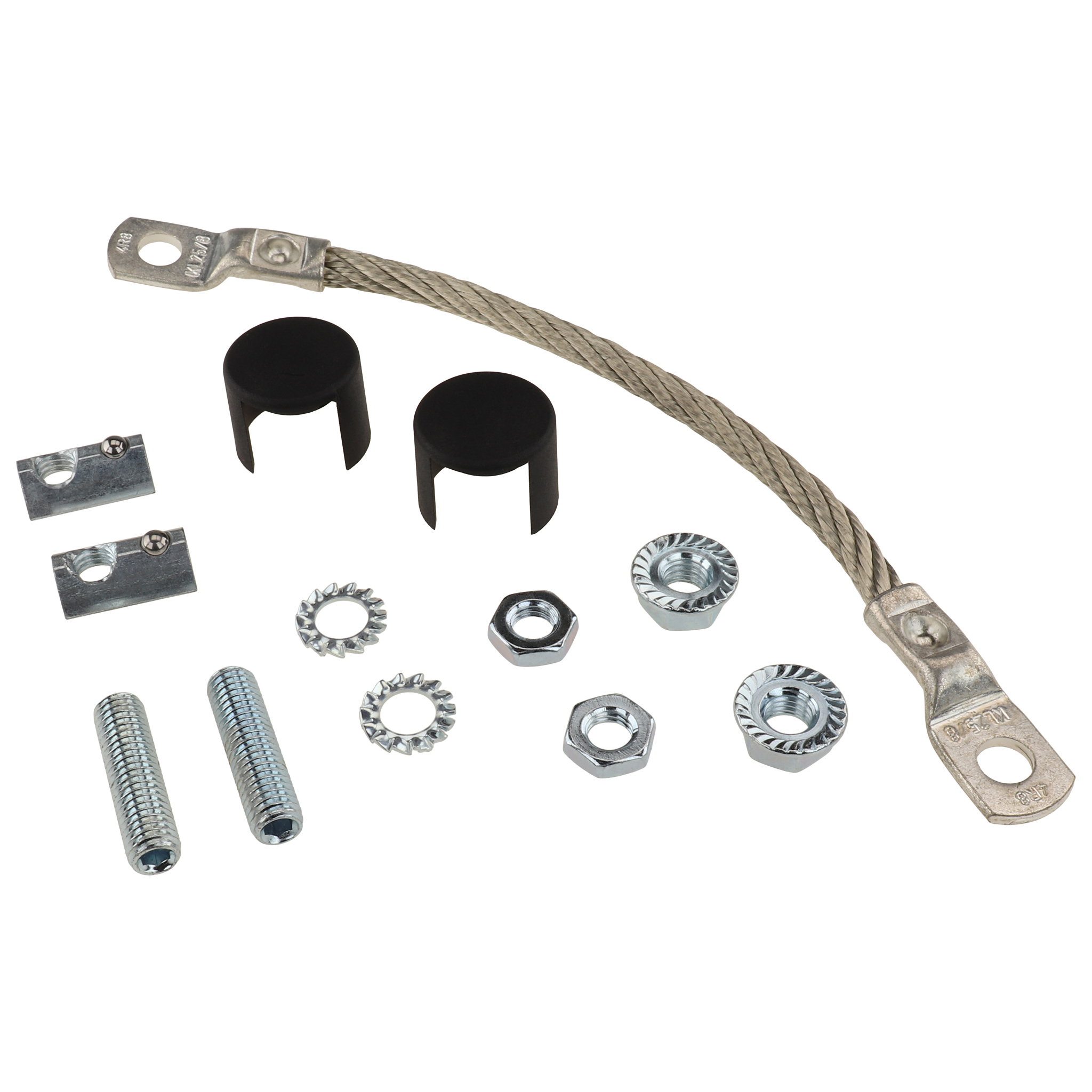

(Listed in assembly sequence incl. tightening torques):
2 T-slot nuts - slot 8 - M8,
2 threaded pins DIN 916 - M8 x 30 (M = 10 Nm),
2 flanged hexagon nuts DIN 6923 - M8 (M = 34 Nm),
1 earth lead 300 mm,
2 serrated lock washers DIN 6798 - 8.4,
2 hexagon nuts DIN 439 B - M8 (M = 25 Nm),
2 cover caps
Earth lead: Copper
Assembly material: Steel
Cover caps: Plastic PA, glass fiber reinforced
Earth Lead: Tin plated
Assembly material: Zinc plated
(Listed in assembly sequence incl. tightening torques):
2 T-slot nuts - slot 8 - M8,
2 threaded pins DIN 916 - M8 x 30 (M = 10 Nm),
2 flanged hexagon nuts DIN 6923 - M8 (M = 34 Nm),
1 earth lead 300 mm,
2 serrated lock washers DIN 6798 - 8.4,
2 hexagon nuts DIN 439 B - M8 (M = 25 Nm),
2 cover caps
| 3DMC Article No.: | 3DMC30608, 3DMC30608, 3DMC30613 |
|---|---|
| Compatibility: | Type I |
| ESD: | Yes |
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| F Article No.: | 142051 |
| Grid dimension: | 30 mm |
| Location - Mounting: | screw-on |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Kupfer |
| Selection Number: | 093099S03 |
| Setinfo: | complete |
| Size (in mm): | 324x24x19 |
| Slot: | 8 |
| Surface: | tin plated |
| Weight (in g): | 145 |
