Holder, Variable Holding Bracket AL, 97x44x45, Steel, zink plated
Product number:
11693
EAN:
4054775116936
Holder, Variable Holding Bracket AL, 97x44x45, Steel, zink plated, Transition between roller track profiles with varying inclination
to mount roller track profiles AL at different angles to tubular frame profiles with D 28 mm outer diameter
preventing inserts from slipping out
to mount roller track profiles AL at different angles to tubular frame profiles with D 28 mm outer diameter
preventing inserts from slipping out
| Compatibility: | Type I |
|---|---|
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| F Article No.: | 148870 |
| Grid dimension: | D30 mm |
| Location - Mounting: | attachable |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Steel |
| Selection Number: | 062AYFD30MS01 |
| Setinfo: | 2 self-drilling screw DIN 7504 Form N - 3.9 x 16 1 washer DIN EN ISO 7089 (DIN 125) 1 T-slot nut slot 8 - M5 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14 |

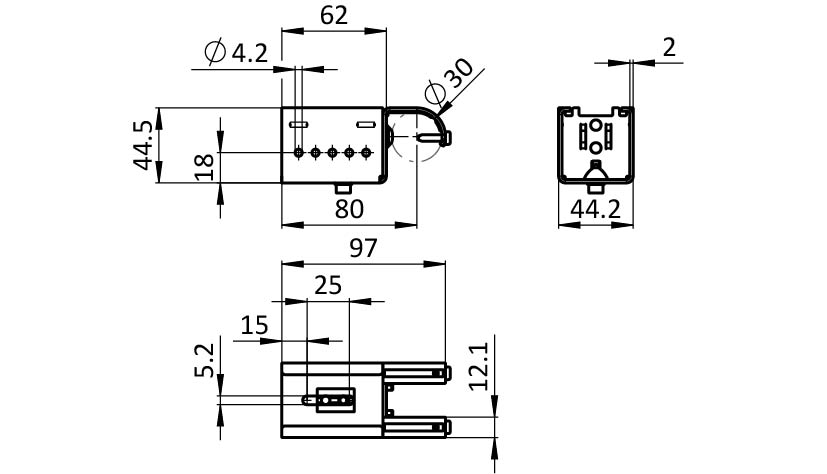

| Size (in mm): | 97x44x45 |
| Surface: | zink plated |
| Weight (in g): | 183 |
