angle

Cover Cap, 30x30x30, Plastic PA reinforced, grey

Colour: grey | Selection: I-30 Version B

Cover Cap, 30x30x30, Plastic PA reinforced, grey, To cover the 3-way connection angle

Variants from €0.94*

€1.44*

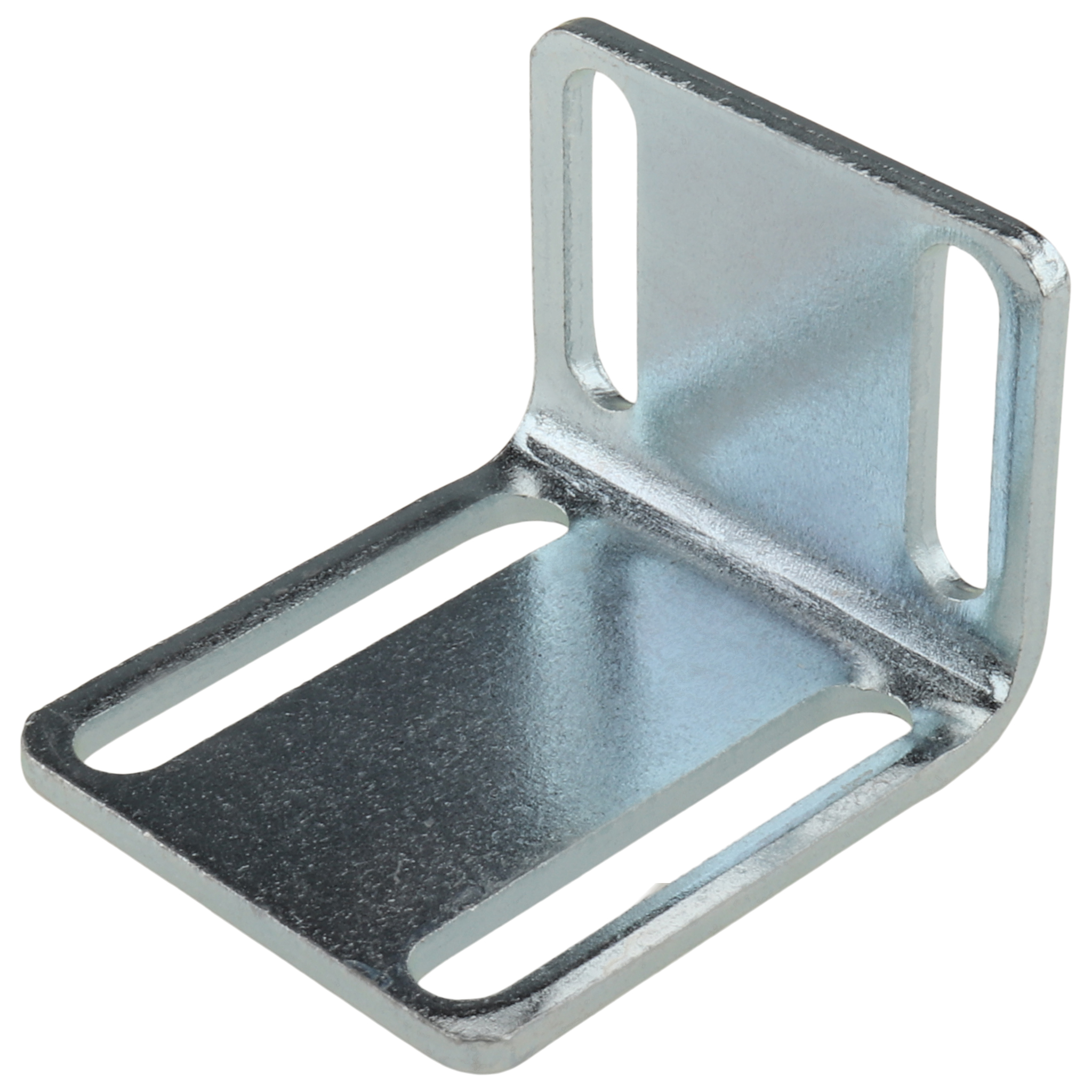

Angle, Angle Bracket for magnetic catch 30, 50x43x35, Steel, zink plated

Angle, Angle Bracket for magnetic catch 30, 50x43x35, Steel, zink plated, to versatile position the magnetic catch 30

From €2.23*

Details

Angle, Angle Bracket for Ball Catch 30, 50x50x35, Steel, zink plated

Angle, Angle Bracket for Ball Catch 30, 50x50x35, Steel, zink plated, to position the ball catch

From €2.23*

Details

Mounting, Angle Bracket, 77.9x39x40.9, Steel, powder-coated, black

Mounting, Angle Bracket, 77.9x39x40.9, Steel, powder-coated, black, to flexibly position the housing or ball pin of the ball catch 30 or a safety switch Schmersal AZ 16

From €6.35*

Details

Angle, 100x79.8x79.8, Aluminum die-cast, powder-coated, aluminum colored

Selection: ohne Montagesatz | Threat: M12

Angle, 100x79.8x79.8, Aluminum die-cast, powder-coated, aluminum colored, for height-adjustable mounting of leveling feet on the side of the profile frame, for small floor distance and low center of gravity

From €20.16*

Details

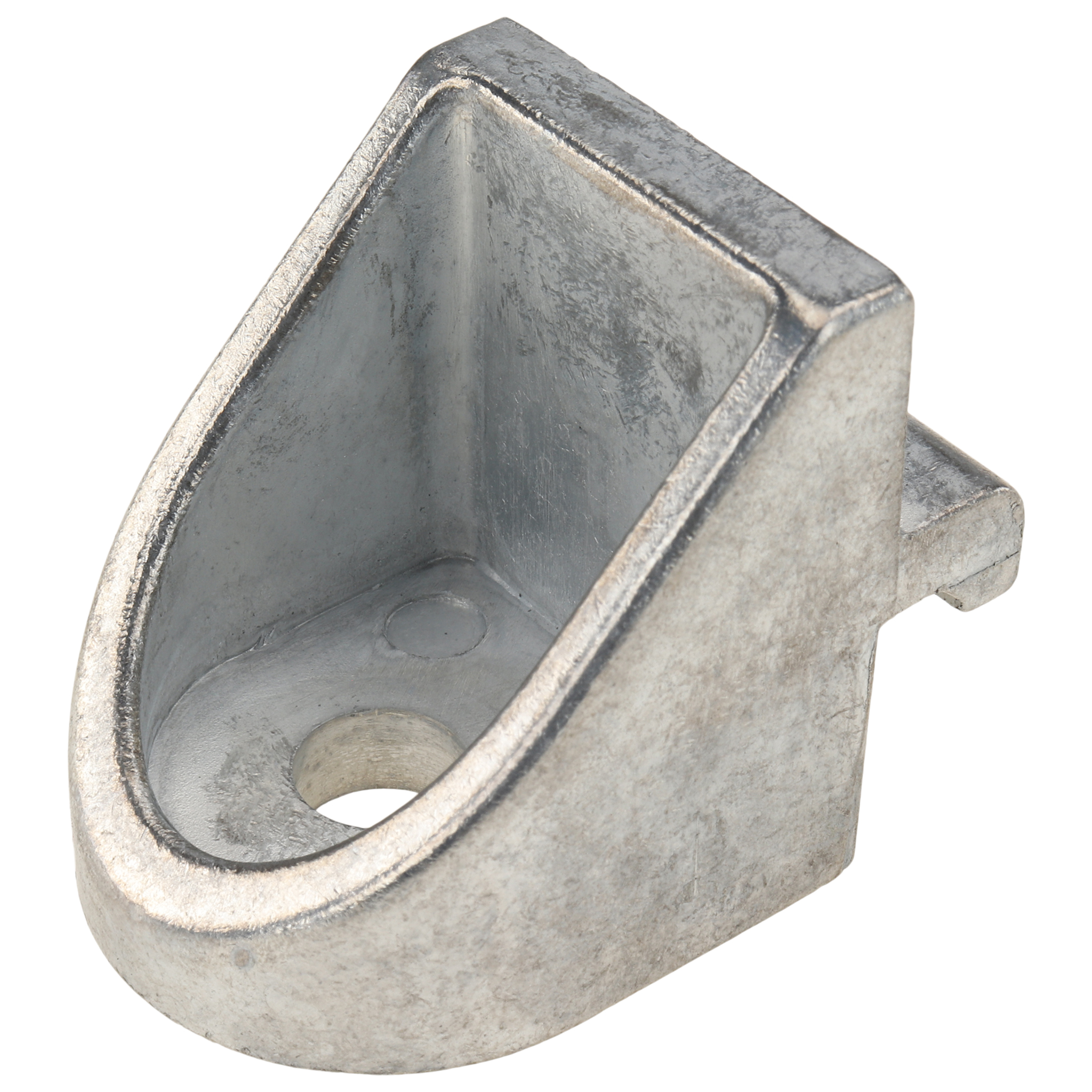

Angle, Angle Clamp, 36x36x32, Zinc die-cast, blanc

Selection: ohne Klemmhebel | Surface: Oberfläche blank

Angle, Angle Clamp, 36x36x32, Zinc die-cast, blanc, To connect aluminum profiles easily and with flexibility

From €3.59*

Details

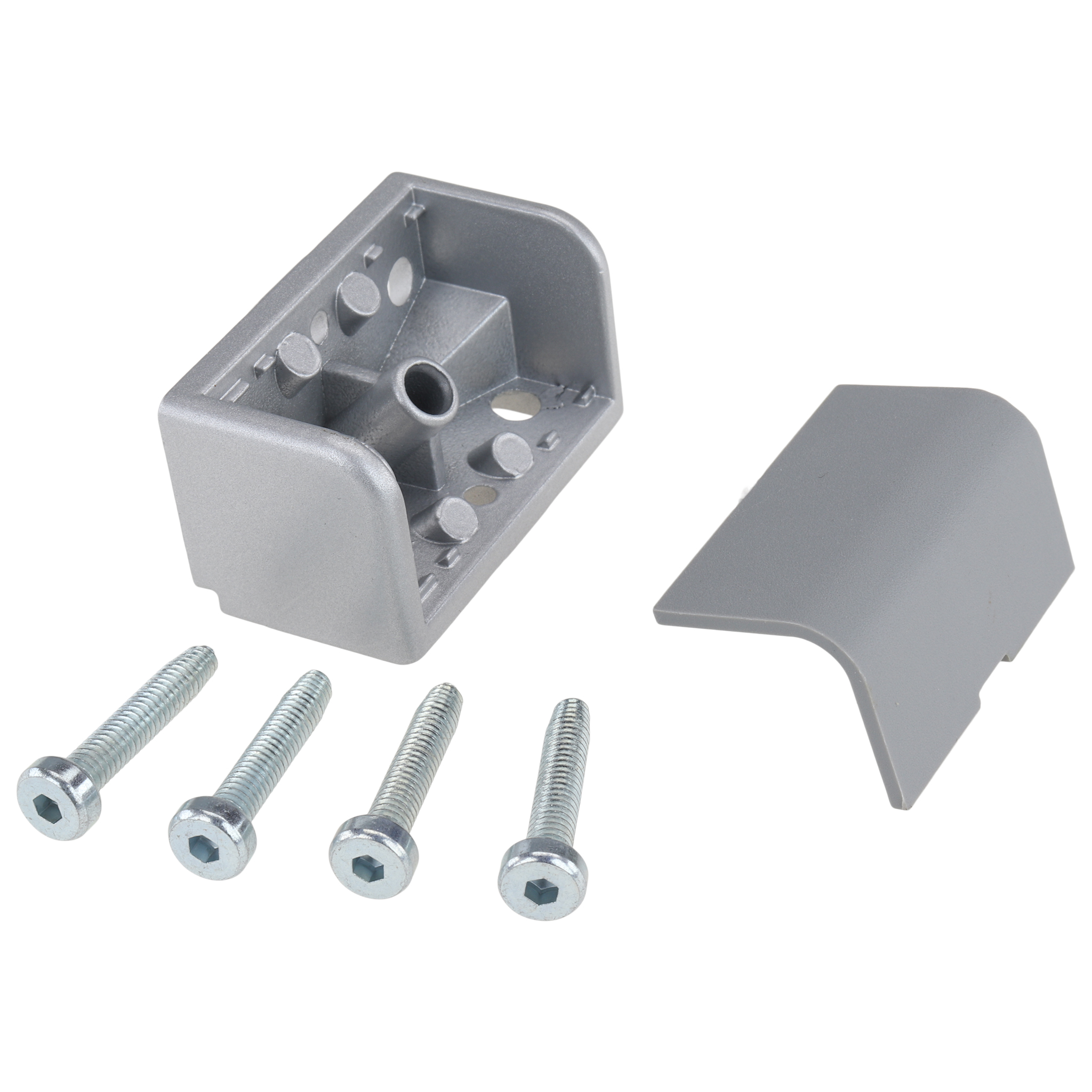

Connector, Frame Corner Connector, 40x20x20, Aluminum die-cast, powder-coated, aluminum colored

Selection: Typ I | Size (in mm): 20 x 40

Connector, Frame Corner Connector, 40x20x20, Aluminum die-cast, powder-coated, aluminum colored, To connect two aluminum profiles at right angles 20 x 40

Variants from €2.57*

From €4.55*

Details

Angle, 19x19x19, Zinc die-cast, blanc

Selection: Typ I | Size (in mm): 20

Angle, 19x19x19, Zinc die-cast, blanc, To connect up to three aluminum profiles at right angles

From €2.67*

Details

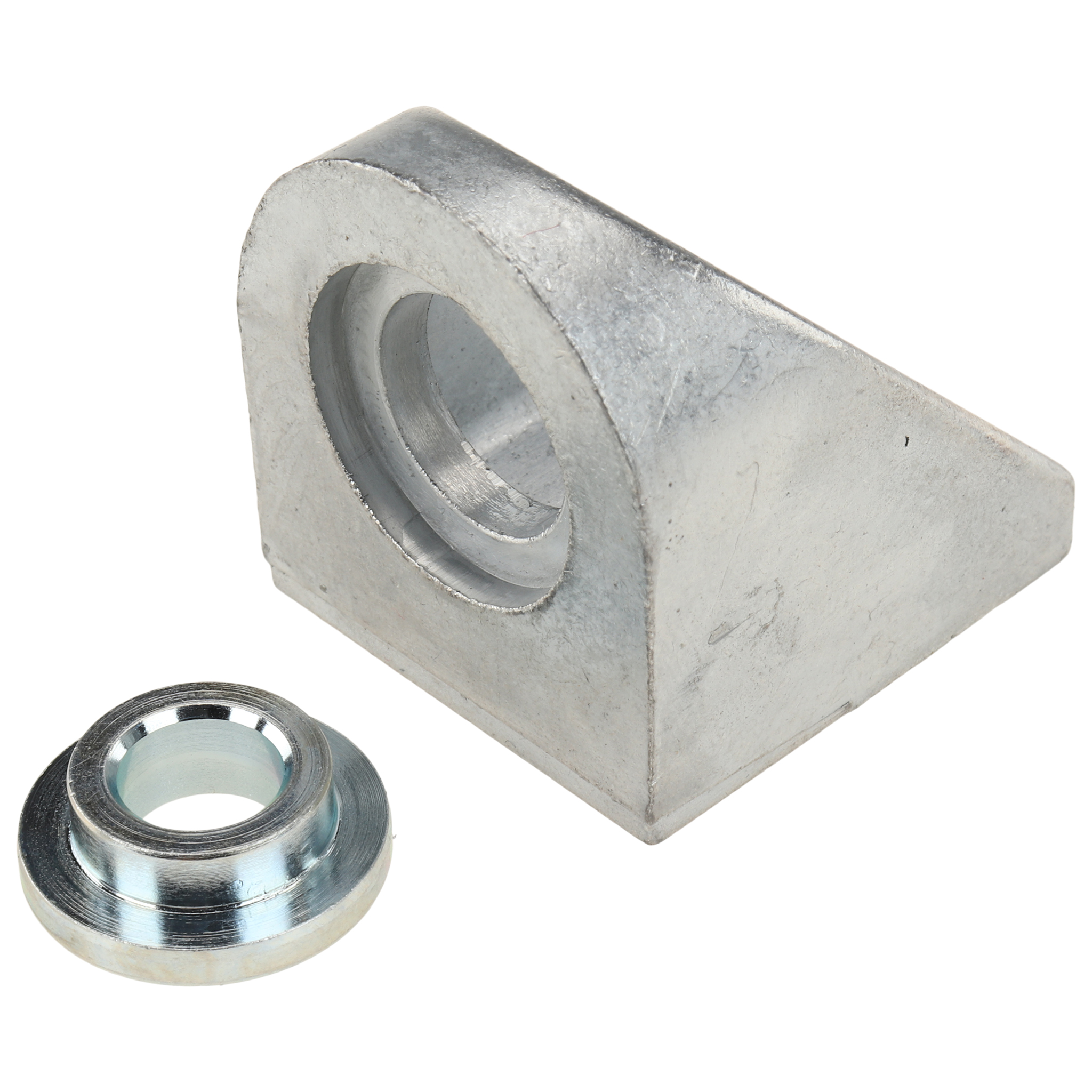

Angle, Adjustable Angle, 36x36x32, Zinc die-cast, blanc

Selection: Oberfläche blank | Size (in mm): 40

Angle, Adjustable Angle, 36x36x32, Zinc die-cast, blanc, To connect aluminum profiles at various anglescan be turned freely when mounted

Variants from €4.71*

From €5.57*

Details

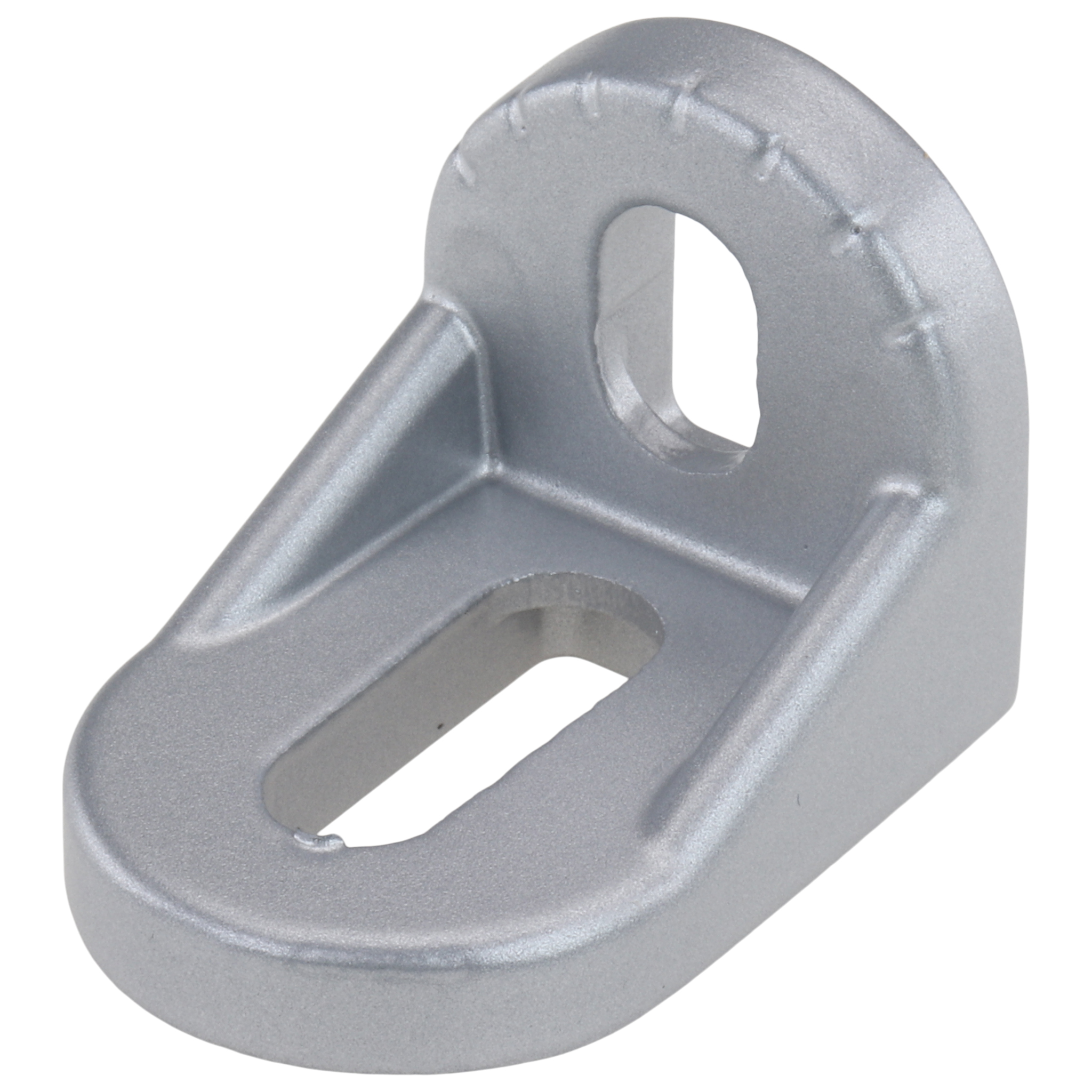

Angle, Turning Angle, 28x28x38, Aluminum die-cast, powder-coated, aluminum colored

Selection: Oberfläche pulverbeschichtet | Slot: 8

Angle, Turning Angle, 28x28x38, Aluminum die-cast, powder-coated, aluminum colored, To connect aluminum profiles at angle between 0° to 180°

Variants from €1.83*

From €2.65*

Details

Pivot Angle, 130x65x30, Steel, zink plated

Pivot Angle, 130x65x30, Steel, zink plated, To connect aluminum profiles at an adjustable angle; can be fixed with a optional locking lever

From €6.00*

Details

Angle, Turning Angle, 43x43x40, Aluminum die-cast, blanc

Slot: 10

Angle, Turning Angle, 43x43x40, Aluminum die-cast, blanc, To connect aluminum profiles at angle between 0° to 180°

From €2.95*

Details

Angle, Inner Angle, 21,6x21,6x15,8, Zinc die-cast, zink plated

Selection: Zink-Druckguss | Slot: 8

Angle, Inner Angle, 21,6x21,6x15,8, Zinc die-cast, zink plated, To connect two aluminum profilesassembly without machining

Variants from €0.77*

From €2.04*

Details

Mounting, 150x13,7x7, Steel, zink plated

Selection: Nutenstein mit Führungssteg

Mounting, 150x13,7x7, Steel, zink plated, Roll-in T-slot nut self-aligning

From €3.77*

Details

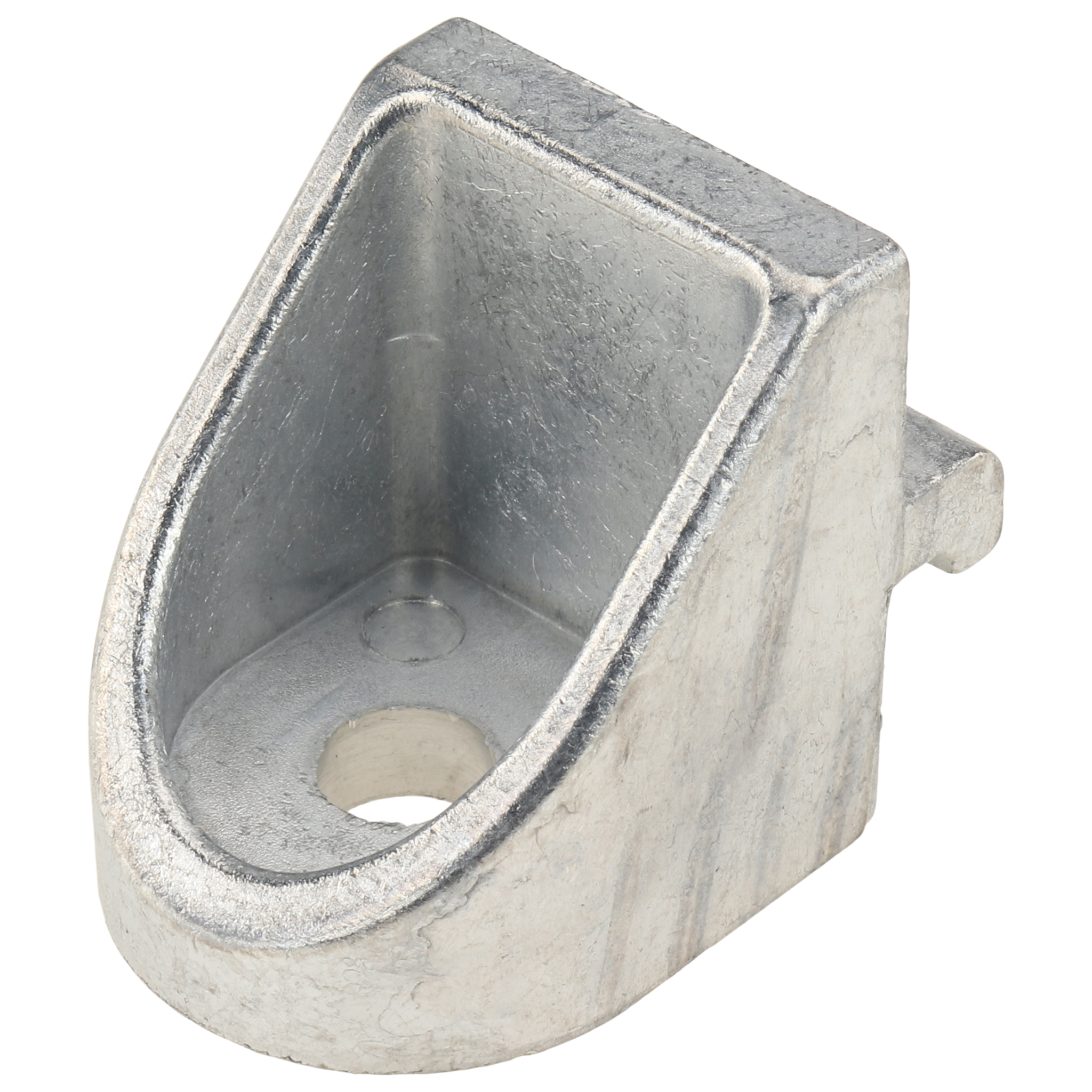

Angle, Angle Clamp, 27x27x24, Zinc die-cast, powder-coated, aluminum colored

Selection: ohne Klemmhebel | Surface: Oberfläche pulverbeschichtet

Angle, Angle Clamp, 27x27x24, Zinc die-cast, powder-coated, aluminum colored, To connect aluminum profiles easily and with flexibility

Variants from €2.81*

From €4.32*

Details

Angle Locking Bracket, 80x80x40, Aluminum die-cast, powder-coated, aluminum colored

Angle Locking Bracket, 80x80x40, Aluminum die-cast, powder-coated, aluminum colored, To connect aluminum profiles at an adjustable angle,can be fixed in 2.5° steps by means of a knurled screw

From €20.15*

Details

angle

...aluminium or steel, they provide stable connections for frames, racks and other structures. These angle profiles allow for precise alignment and easy assembly of profiles at different angles. Versatile and easy to install, they contribute to the stability and flexibility of machine building constructions.
