Uniblocks

Panel element fasteners for aluminium profiles and mechanical engineering are crucial ...

Uniblock 25, Slot 8, Type I, Plastic PA reinforced

Profile step dimension (in mm): 7.9 | Threat size: M4

Uniblock 25, 25x25x18,5, Plastic PA reinforced, black, To attach panels easily to aluminum profiles

From €1.13*

Details

Clamping Spring, Slot 10, Type I, Stainless steel, blanc

Clamping Spring, 80x12x11, Stainless steel, blanc, To fix panels 2 - 9 mm in the slot

From €0.65*

Details

Spacer, Slot , Plastic PA reinforced

Colour: black | Thickness (in mm): 3

Spacer, 16x12,5x3, Plastic PA reinforced, black

From €0.14*

Details

Vario Clip Block 18, Slot 8, Type B, Plastic PA reinforced

Vario Clip Block 18, 20x20x24, Plastic PA reinforced, black, To attach panels safely to aluminum profiles; optional screwless mounting with clip clamp

From €1.36*

Details

Uniblock 25 CS, Slot 8, Type I, Plastic PA reinforced

Profile step dimension (in mm): 7.9

Uniblock 25 CS, 25x25x18,5, Plastic PA reinforced, grey, To attach panels safely to aluminum profiles, with screw reatiner to comply with Machinery Directive 2006/42/EC

From €1.37*

Details

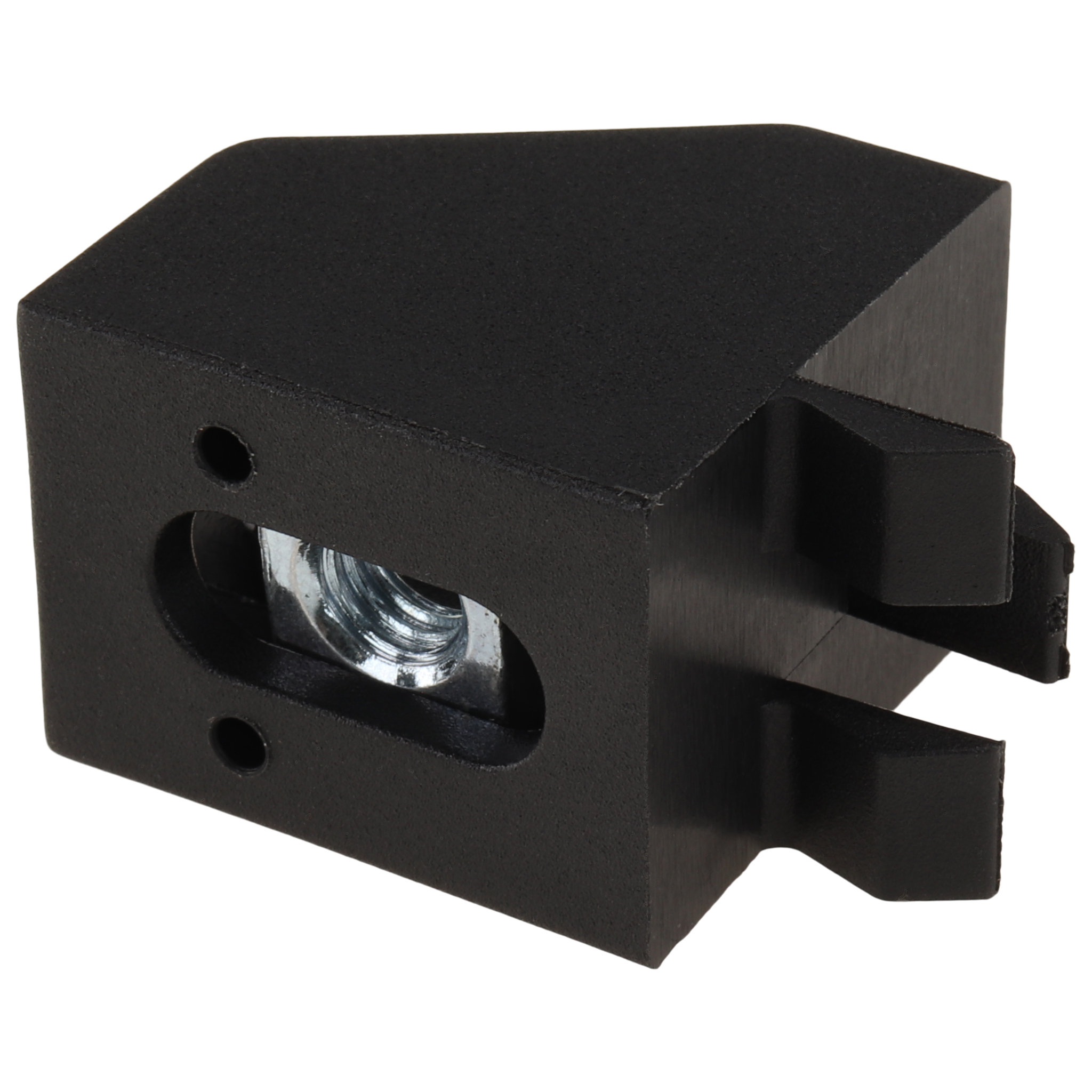

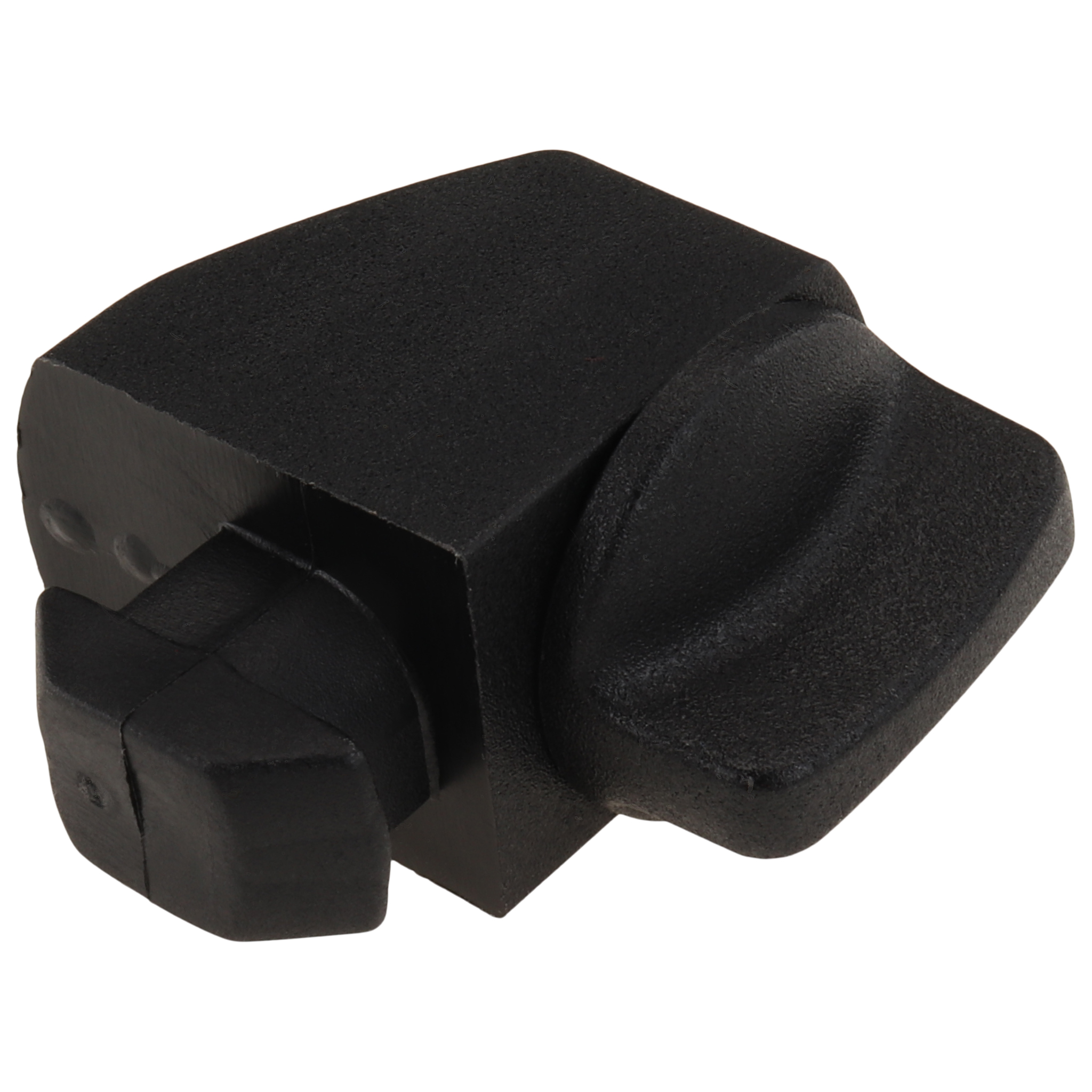

Quick Block, Slot 10, Type B, Plastic PA reinforced

Centre offset (in mm): 8.5 | Slot: 10

Quick Block, 25x19x25, Plastic PA reinforced, black, 'to attach panels quickly 1 - 12 mm to aluminum profiles

Variants from €1.84*

From €1.89*

Details

Uniblock 14, Slot 5, Type I, Plastic PA reinforced

Colour: black

Uniblock 14, 16x14x12,5, Plastic PA reinforced, black, To attach panels easily to aluminum profiles

From €0.90*

Details

Uniblock 18, Slot 8, Type B, Plastic PA reinforced

Profile step dimension (in mm): 2.2 | Threat size: M4

Uniblock 18, 25x18,5x18,5, Plastic PA reinforced, black, To attach panels easily to aluminum profiles.

From €1.13*

Details

Uniblock 18 CS, Slot 6, Type I, Plastic PA reinforced

Profile step dimension (in mm): 3.0

Uniblock 18 CS, 25x18,5x18,5, Plastic PA reinforced, black, To attach panels safely to aluminum profiles.With screw reatiner to comply with Machinery Directive 2006/42/EG

From €1.24*

Details

Uniblock 18 CS, Slot 6, Type I / B, Plastic PA reinforced

Profile step dimension (in mm): 3.0

Uniblock 18 CS, 25x18,5x18,5, Plastic PA reinforced, grey, To attach panels safely to aluminum profiles.With screw reatiner to comply with Machinery Directive 2006/42/EG

From €1.37*

Details

Uniblock 25, Slot 8, Type I, Plastic PA reinforced

Profile step dimension (in mm): 8 | Threat size: M4

Uniblock 25, 25x25x18,5, Plastic PA reinforced, grey, To attach panels easily to aluminum profiles

From €1.25*

Details

Uniblock 25, Slot 8, Type I, Plastic PC

Profile step dimension (in mm): 12

Uniblock 25, 25x25x18,5, Plastic PC, crystal clear, To attach panels easily to aluminum profiles

From €1.86*

Details

Uniblock 26 CS, Slot 8, Type I, Plastic PA reinforced

Profile step dimension (in mm): 12

Uniblock 26 CS, 26x21x24,5, Plastic PA reinforced, black, to attach panels with a thickness of 2 - 8 mm safely to aluminum profiles,with screw retainer to comply with Machinery Directive 2006/42/EC

From €2.21*

Details

Spacer, Slot , Type I / B, Plastic PA reinforced

Thickness (in mm): 2

Spacer, 15x20x22, Plastic PA reinforced, black, No further spacers can be added!

From €0.14*

Details

Clip Block 14, Slot 8, Type I, Plastic PA reinforced

Centre offset (in mm): 5 | Length in mm: 19.5

Clip Block 14, 20x16x22, Plastic PA reinforced, grey, To attach panels to aluminum profiles without screws or tools

From €1.25*

Details

Spacer, Slot , Type I / B, Plastic PA reinforced

Thickness (in mm): 3

Spacer, 15x20x22, Plastic PA reinforced, grey, No further spacers can be added!

Variants from €0.15*

From €0.17*

Details

Clip Clamp, Slot , Type B, Plastic PC

Clip Clamp, 20x20x11, Plastic PC, crystal clear, Fit to Vario Clip Block 18

From €0.68*

Details

Uniblock ZN 40 CS, Slot 8, Zinc, zink plated

Dim H in mm: 1.7 | Slot: 8

Uniblock ZN 40 CS, 30x30x30, Zinc, zink plated, black, To attach panels to aluminum profiles; especially for high load bearing (up to 2000 N) on the panels; with screw retainer to comply with Machinery Directive 2006/42/EC

From €3.87*

Details

Uniblock 18, Slot 6, Type I, Plastic PA reinforced

Profile step dimension (in mm): 3 | Threat size: M4

Uniblock 18, 25x18,5x18,5, Plastic PA reinforced, grey, To attach panels easily to aluminum profiles

From €1.18*

Details

Uniblock 25 CS, Slot 8, Type I, Plastic PA reinforced

Profile step dimension (in mm): 7.9

Uniblock 25 CS, 25x25x18,5, Plastic PA reinforced, black, To attach panels safely to aluminum profiles, with screw reatiner to comply with Machinery Directive 2 006/42/EC

From €1.24*

Details

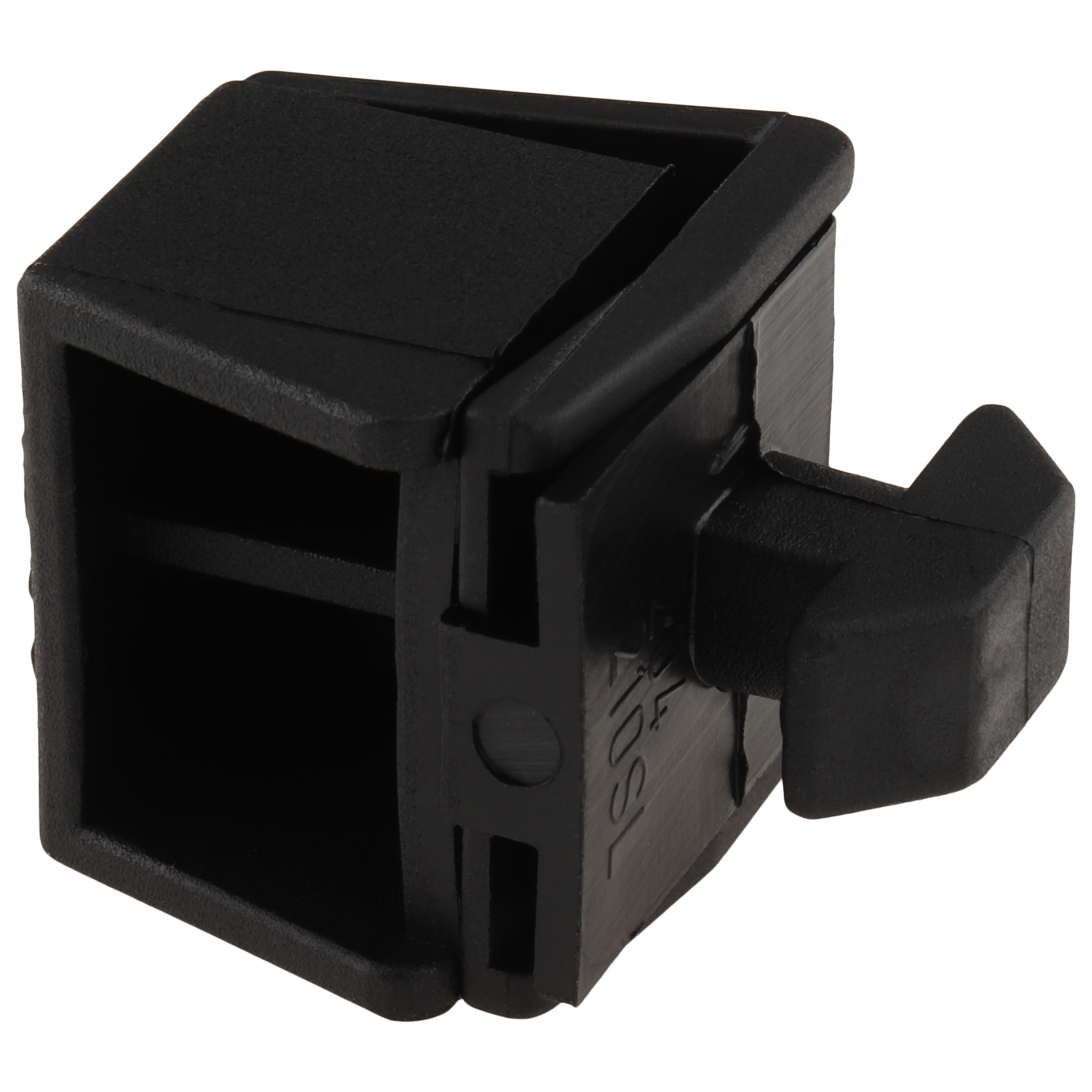

Clip Block 14, Slot 8, Type I, Plastic PA reinforced

Centre offset (in mm): 5 | Length in mm: 19.5

Clip Block 14, 20x16x22, Plastic PA reinforced, black, To attach panels to aluminum profiles without screws or tools

From €1.13*

Details

Klemmblock 14 SL, Slot 8, Type I, Plastic PA reinforced

Centre offset (in mm): 5 | Length in mm: 19.5

Klemmblock 14 SL, 20x16x22, Plastic PA reinforced, black, To attach panels easily to aluminum profiles without screws or tools; can only be opened with the special tool SL

From €1.13*

Details

Cover and Reductionprofile, Slot 8, Type I, Plastic PP

Selection: black

Cover and Reductionprofile, 9,4x12x2000, Plastic PP, black, To cover size 8 profile slots and to secure panels with a thickness of 4 - 6 mm

€2.79*

Spacer, Slot , Plastic PA reinforced

Selection: RAL 7043 Verkehrsgrau B | Thickness (in mm): 2

Spacer, 25x18,5x18,5, Plastic PA reinforced, grey - RAL 7042, No further spacer can be added

From €0.17*

Details

Panel Holder, Slot , Aluminum, anodized

Selection: für Profil 20

Panel Holder, 39x20x17, Aluminum, anodized, To attach panels easily to aluminum profiles

From €1.25*

Details

Spacer CS, Slot , Plastic PA reinforced

Thickness (in mm): 2

Spacer CS, 25x18,5x2, Plastic PA reinforced, black, No further spacers can be added

From €0.14*

Details

Fixation Block 18, Slot 6, Type I, Plastic PA reinforced

Fixation Block 18, 15x15x20, Plastic PA reinforced, black, To attach panels easily to aluminum profiles

From €1.36*

Details

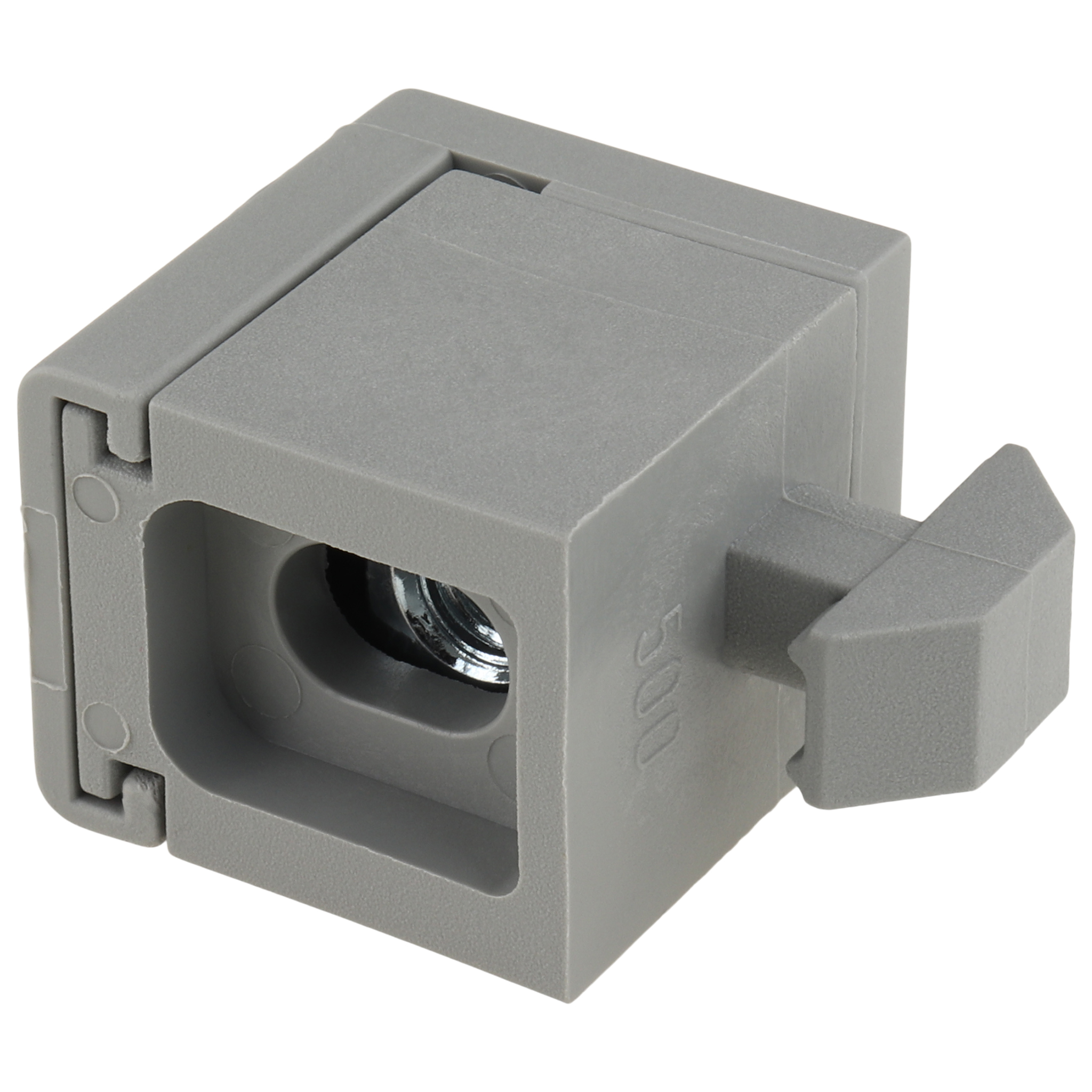

Fixation Block 25, Slot 8, Type I, Plastic PA reinforced

Fixation Block 25, 20x23,5x40, Plastic PA reinforced, grey, To attach panels easily to aluminum profiles

From €1.49*

Details

Glass Panel Clamp, Slot , Zinc, powder-coated

Glass Panel Clamp, Zinc, powder-coated, aluminum colored, To fix glass and other panels

From €7.66*

Details

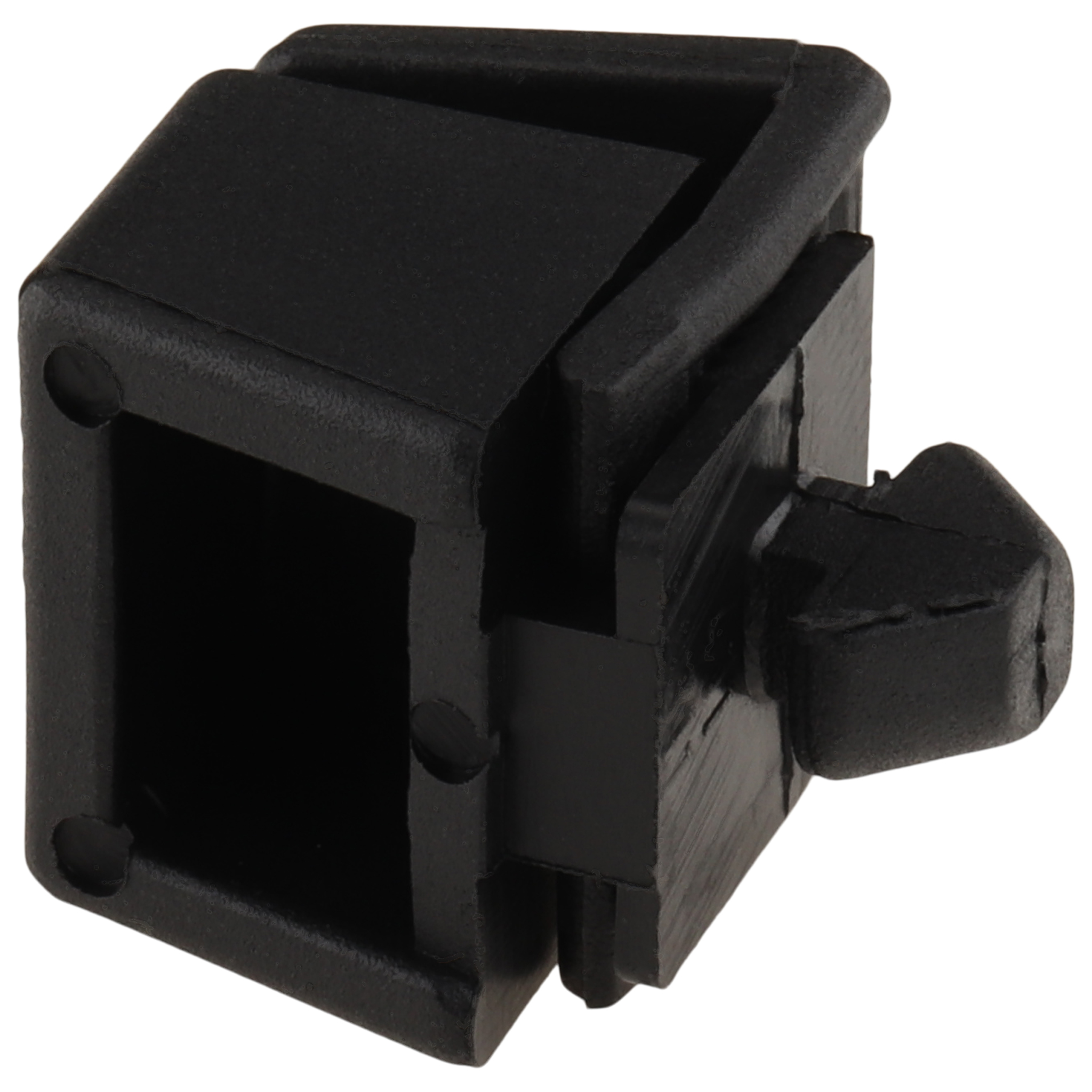

Clip Block 13, Slot 5, Type I, Plastic PA reinforced

Clip Block 13, 14x12x16, Plastic PA reinforced, grey, To attach panels to aluminum profiles without screws or tools

From €1.25*

Details

Uniblock 25 Clip, Slot 8, Type I, Plastic PA reinforced

Uniblock 25 Clip, 25x25x19, Plastic PA reinforced, black, To attach panels simply to aluminum profiles;the clip feature makes it possible to pre-mount the block to the panel

From €1.13*

Details

Clip Block 13, Slot 5, Type I, Plastic PA reinforced

Clip Block 13, 14x12x16, Plastic PA reinforced, black, To attach panels to aluminum profiles without screws or tools

From €1.13*

Details

Uniblock 25 EH, Slot 6, 8, 10, Type I / B, Universal, Plastic PA reinforced

Threat size: M5

Uniblock 25 EH, 25x25x18,5, Plastic PA reinforced, black, To join panels and aluminum profiles of various dimensions

From €1.13*

Details

Vario Block, 30x30x30, Plastic PA carbon fiber reinforced, black

Vario Block, 30x30x30, Plastic PA carbon fiber reinforced, black, To attach panels safely to tubular frame profiles with D 28 mm outer diameter;optional screwless mounting with clip clamp (Article#: 11247)

From €1.36*

Details

Corner Connector, Slot , Zinc, powder-coated

Corner Connector, 20x20x25, Zinc, powder-coated, aluminum colored, To make a corner connection with two panels using two glass panel clamps (2 sets)

From €4.71*

Details

Clip, Panel Clip, 38x38x13.5, Plastic PA glass ball reinforced, grey

Clip, Panel Clip, 38x38x13.5, Plastic PA glass ball reinforced, grey, To temporarelly attach panels to tubes or tubular frame profiles with D 30 mm outer diameterFor screwing the surface element a hexagon nut M5 can be inserted in the panel clip D30

From €0.62*

Details

Uniblocks

...for the secure installation of plates, panels or other flat construction elements. These fasteners provide a stable connection and allow flexible adjustment of positioning. Manufactured from high-quality materials such as aluminium or stainless steel, they provide reliable support and load-bearing capacity for a wide range of applications, from machine housings to protective walls. Their ease of installation and high adaptability make them an essential solution for structures that require stability and versatility.
