Grounding connectors

Grounding Connector, Slot 6, Type I, Copper, tin plated

Length in mm: 200 | Slot: 6

Grounding Connector, 224x24x14, Copper, tin plated, to electrically connect movable parts to each other as flexible grounding wire, and to create ESD electrically conductive connections between juxtaposed frames as equipotential bonding; large conductor cross-section (16 mm²), current carrying capacity 120 A max.Earth lead: CopperAssembly material: SteelCover caps: Plastic PA, glass fiber reinforcedEarth Lead: Tin platedAssembly material: Zinc plated(Listed in assembly sequence incl. tightening torques):2 T-slot nuts - slot 6 - M6,2 threaded pins DIN 916 - M6 x 22 (M = 10 Nm),2 flanged hexagon nuts DIN 6923 - M6 (M = 34 Nm),1 earth lead 200 mm,2 serrated lock washers DIN 6798 - 6,11,2 hexagon nuts DIN 439 B - M6 (M = 25 Nm),2 cover caps

From €14.99*

Details

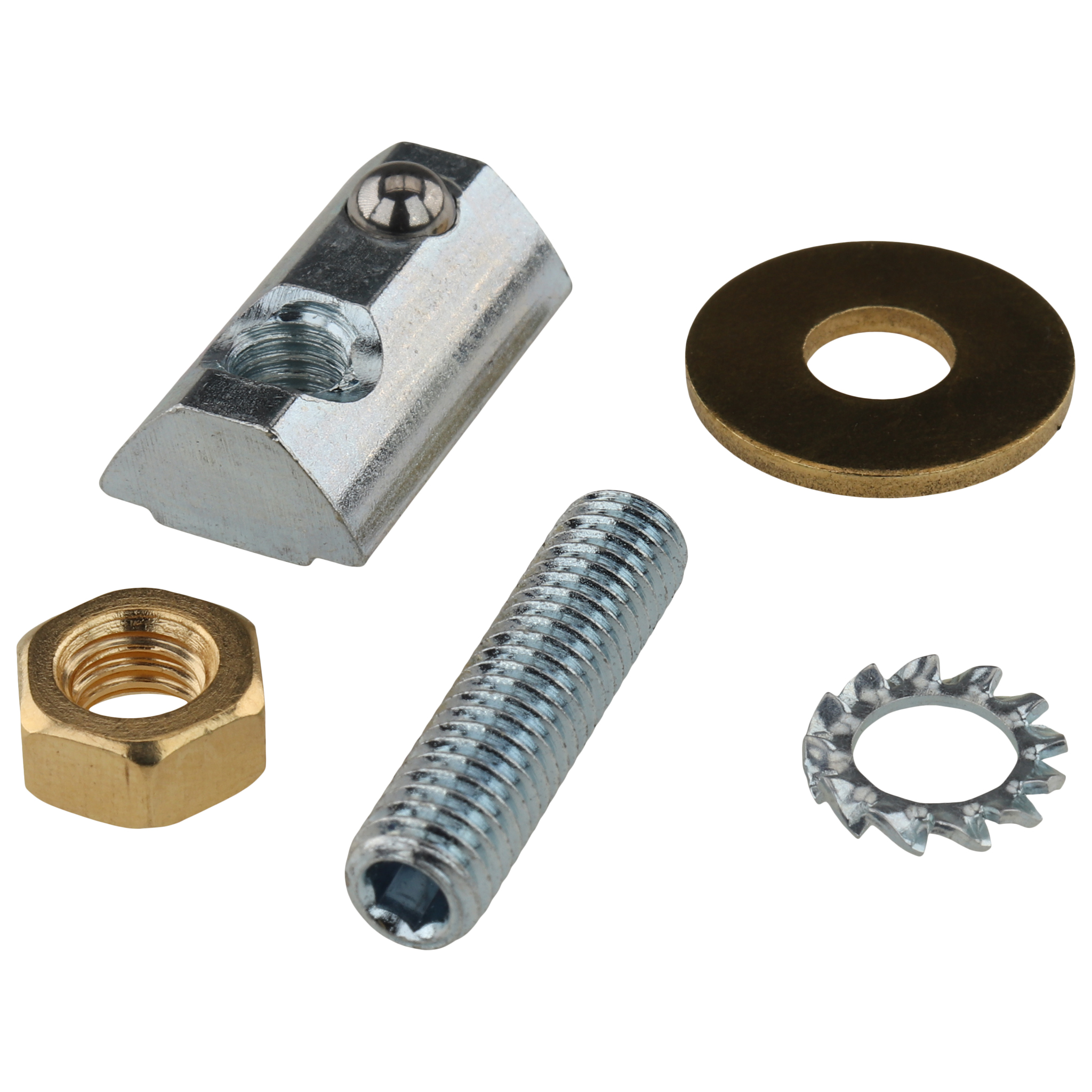

Grounding Terminal, Slot 8, Type I, Steel, zink plated

Grounding Terminal, 25x14x22, Steel, zink plated, to make an ESD electrostatic discharging connectionT-Slot Nut, grub screw, serrated washer: SteelHexagon nut, washer: Brass

From €1.52*

Details

Grounding connectors

...Dissipation of electrical charge and protection against electrostatic discharges. Manufactured from high-quality materials such as aluminium or copper, they ensure reliable earthing of systems and electrical components. These connectors are easy to install and provide a secure connection between the profiles and the earthing system. They contribute to the safety of people and systems by minimising potential risks from electrostatic charges and supporting compliance with safety standards in mechanical engineering.
