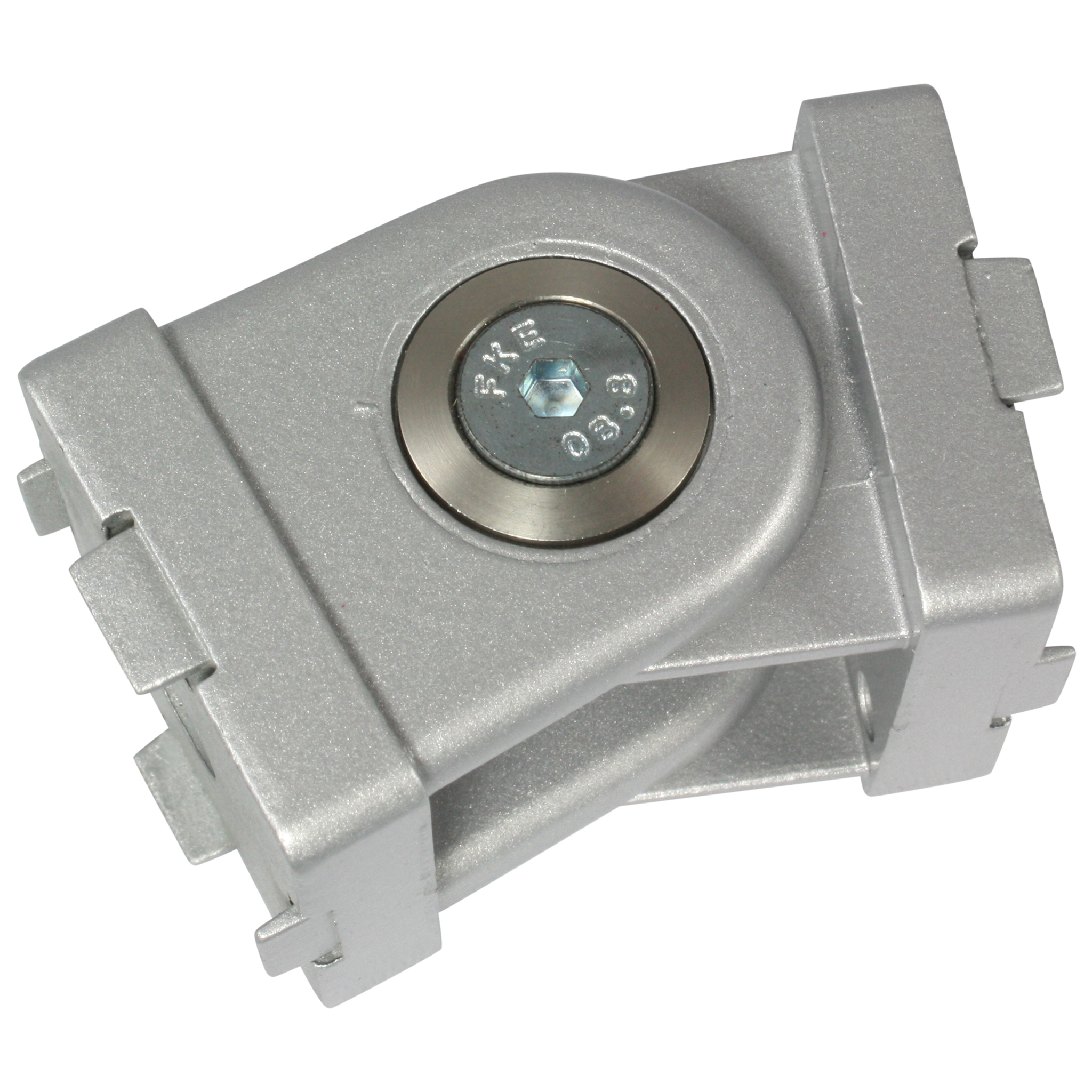

Pivot Joint, 30x30x45, Zinc die-cast, powder-coated, aluminum colored
| Quantity | Unit price |
|---|---|
| To 9 |
€19.71*
|
| To 99 |
€17.74*
|
| From 100 |
€15.08*
|
Product number:
12623
EAN:
4054775126232

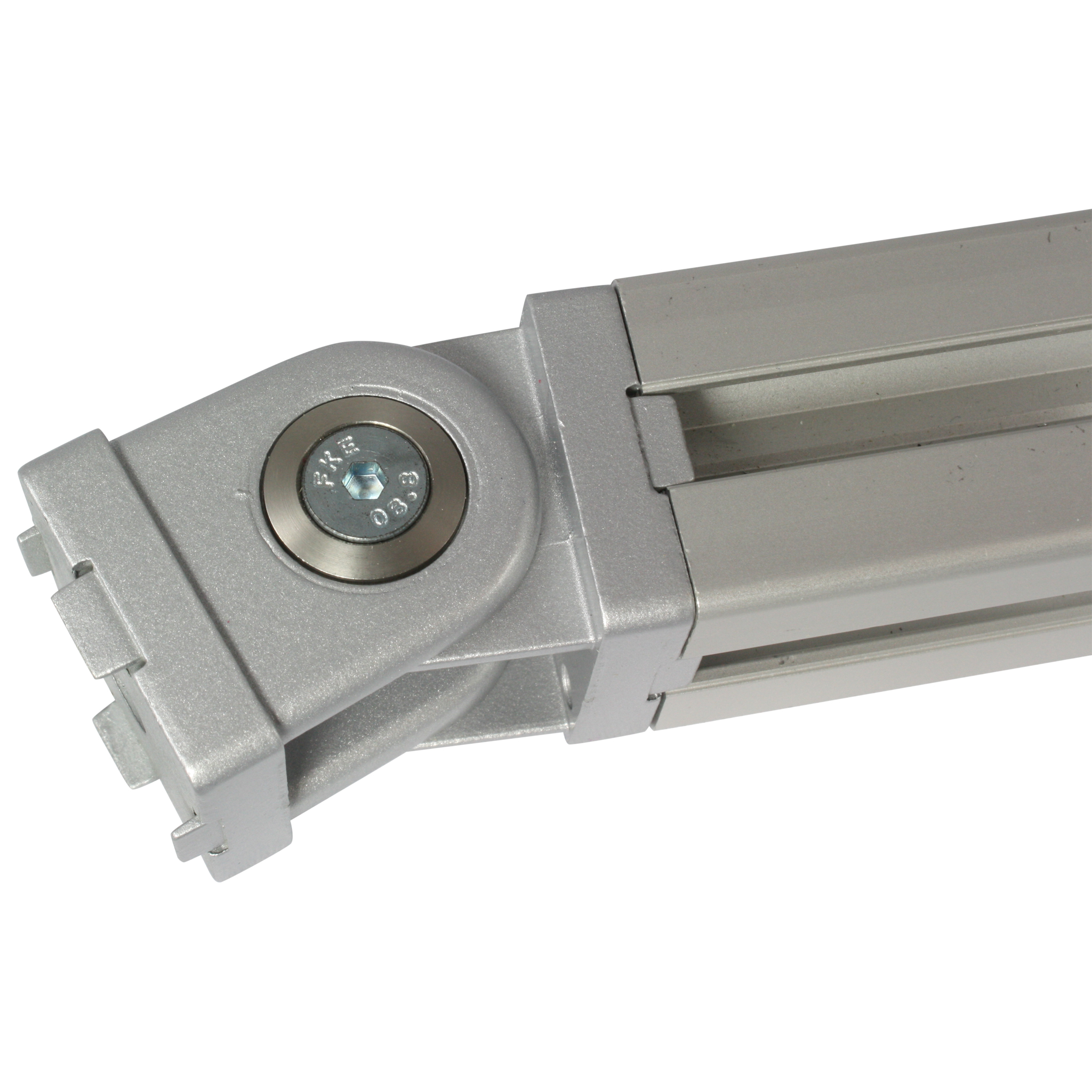

Pivot Joint, 30x30x45, Zinc die-cast, powder-coated, aluminum colored, To make a pivoting connection between 2 profiles or panels
fixed locating pins for slot 6 or 8 optional
by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position
fixed locating pins for slot 6 or 8 optional
by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position
| 3DMC Article No.: | 3DMC10805 |
|---|---|
| Additional Property: | for screw M8 |
| B Article No: | 3842502683 |
| Colour: | aluminum coloured |
| Compatibility: | Type B |
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| F Article No.: | 100593 |
| Grid dimension: | 30 mm |
| Location - Mounting: | screw-on |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Zinc die-cast |
| Selectionnummer: | 093G30AN08 |
| Setinfo: | without screw(s) |
| Size (in mm): | 30x30x45 |
| Slot: | 8 |
| Surface: | powder coated |
| Technical property: | opening angle 183° |
| Weight (in g):: | 134 |
