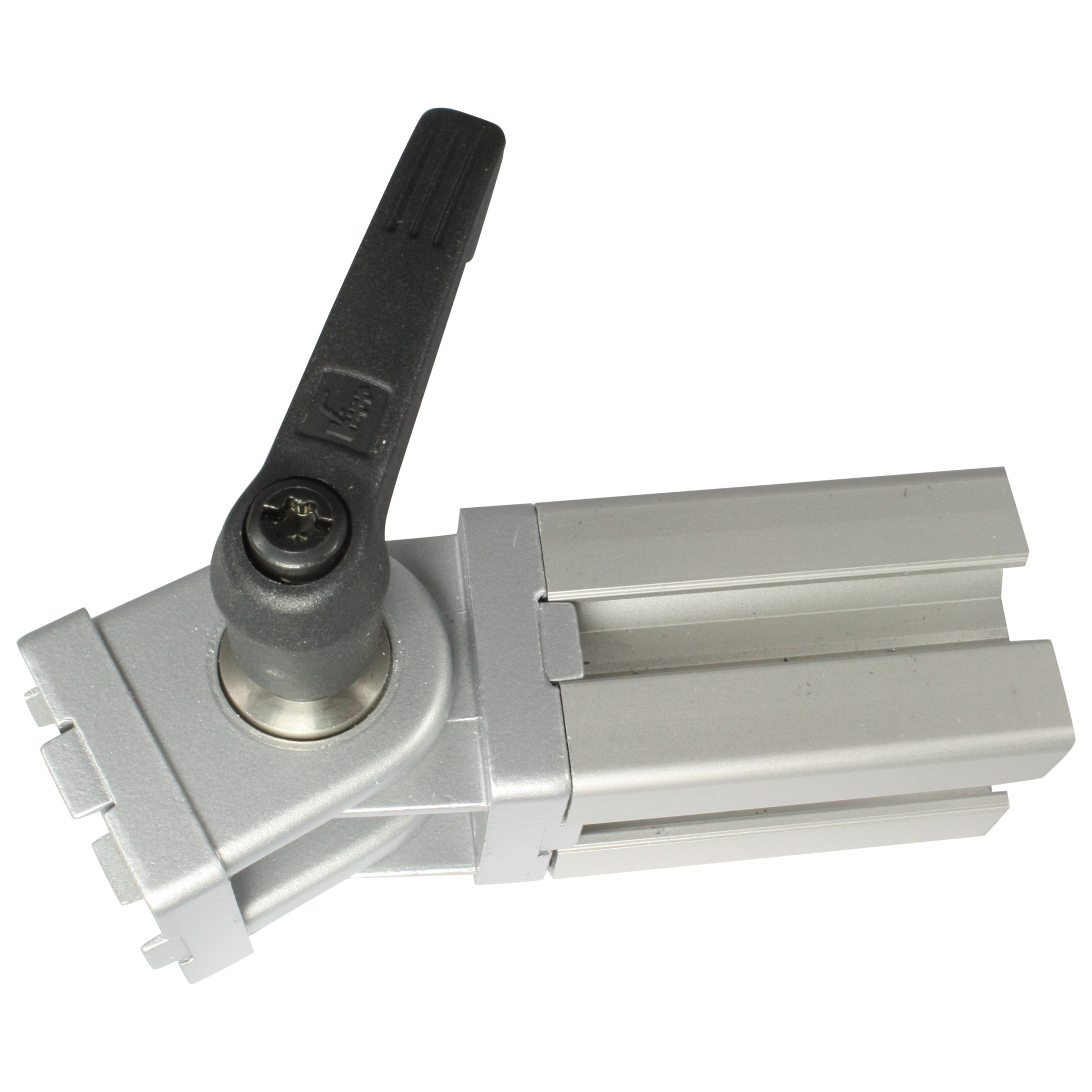

Pivot Joint, 30x30x45, Zinc die-cast, powder-coated, aluminum colored
| Quantity | Unit price |
|---|---|
| To 9 |
€27.39*
|
| To 99 |
€24.65*
|
| From 100 |
€20.96*
|
Product number:
12626
EAN:
4054775126263
Pivot Joint, 30x30x45, Zinc die-cast, powder-coated, aluminum colored, To make a pivoting connection between 2 profiles or panels which can be fixed at any angle
fixed locating pins for slot 8 optional
by tightening or loosening the screws and the locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position
fixed locating pins for slot 8 optional
by tightening or loosening the screws and the locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position
| 3DMC Article No.: | 3DMC10806 |
|---|---|
| Additional Property: | for screw M8 |
| Colour: | aluminum colored |
| Compatibility: | Type B |
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| F Article No.: | 100666 |
| Grid dimension: | 30 mm |
| Location - Mounting: | screw-on |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Zinkdruckguss |
| Selection Number: | 093GF30AN08 |
| Setinfo: | without screw(s) |

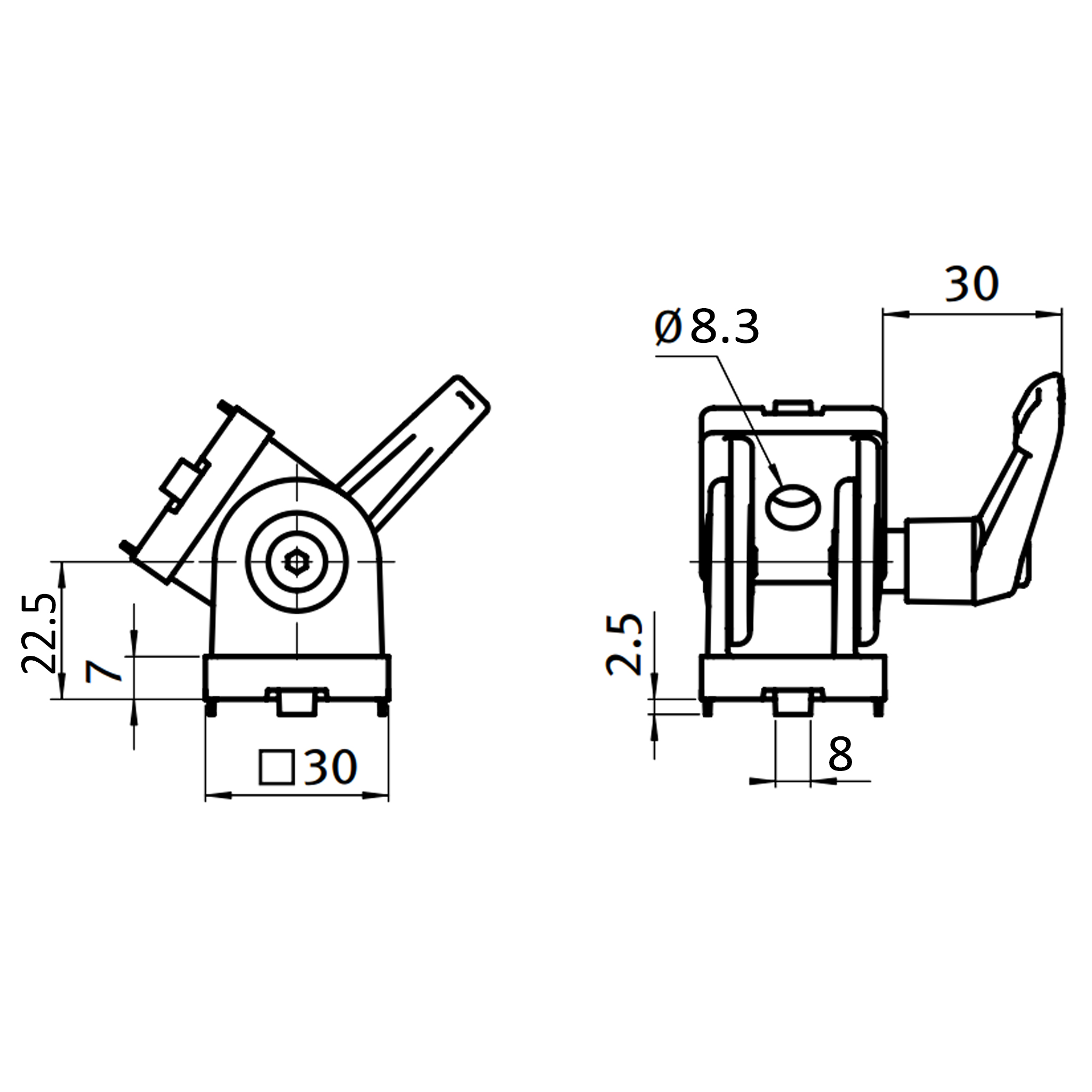

| Size (in mm): | 30x30x45 |
| Slot: | 8 |
| Surface: | powder-coated |
| Technical property: | opening angle 182° |
| Weight (in g): | 156 |
