Pivot Joint, 30x60x45, Aluminum die-cast, powder-coated, aluminum colored
| Quantity | Unit price |
|---|---|
| To 9 |
€37.91*
|
| To 99 |
€34.12*
|
| From 100 |
€29.00*
|
Product number:
12628
EAN:
4054775126287

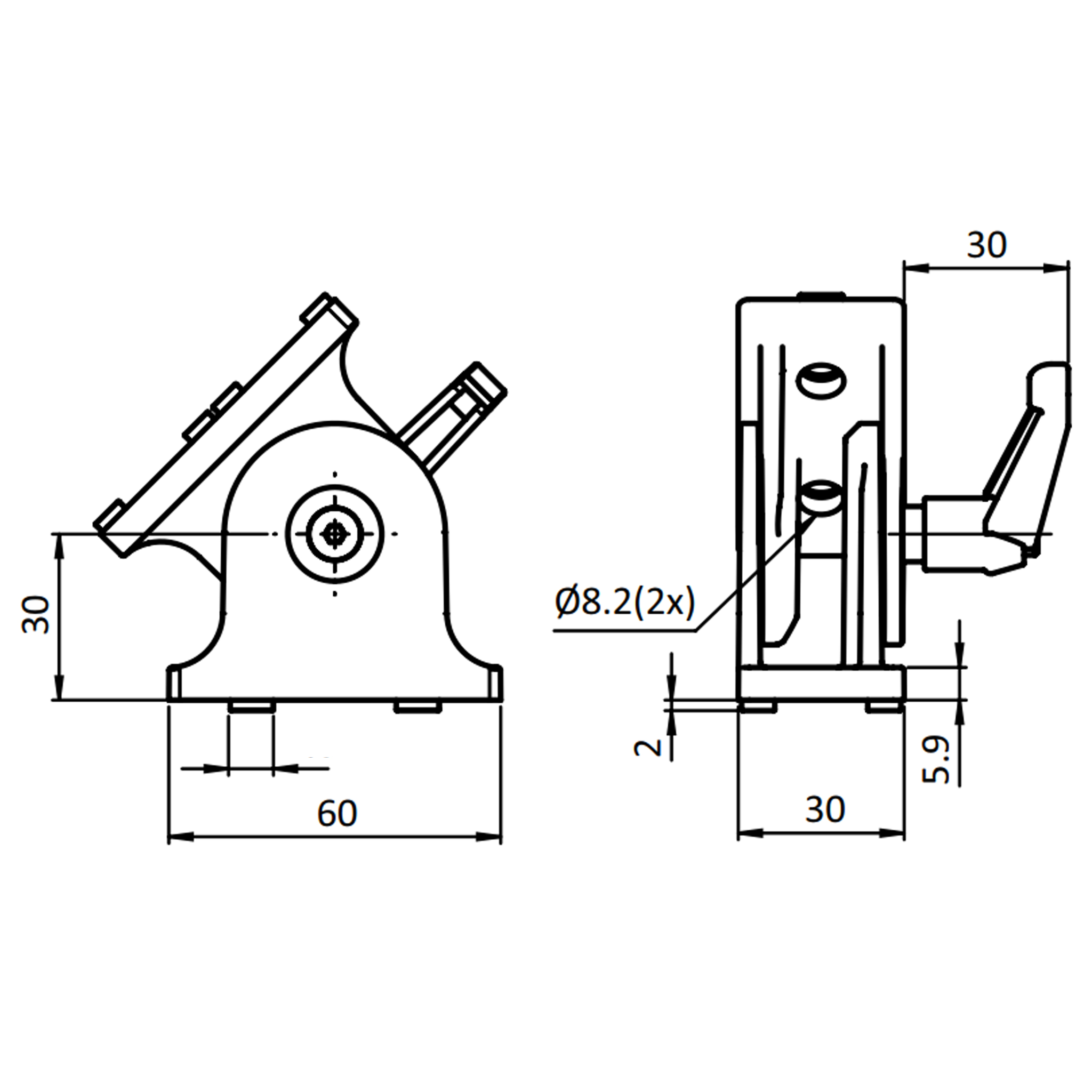

Pivot Joint, 30x60x45, Aluminum die-cast, powder-coated, aluminum colored, For connection of two profiles or panels
with attachment at any angle
by tightening or loosening the screws and the locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position
with attachment at any angle
by tightening or loosening the screws and the locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position
| Additional Property: | for screw M8 |
|---|---|
| Colour: | aluminum colored |
| Compatibility: | Type I / B |
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| F Article No.: | 136411 |
| Grid dimension: | 30 / 60 |
| Location - Mounting: | screw-on |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Aluminiumdruckguß |
| Selection Number: | 093GAF3060A |
| Setinfo: | without screw(s) |
| Size (in mm): | 30x60x45 |
| Surface: | powder-coated |
| Technical property: | opening angle 158° |
| Weight (in g): | 139 |
