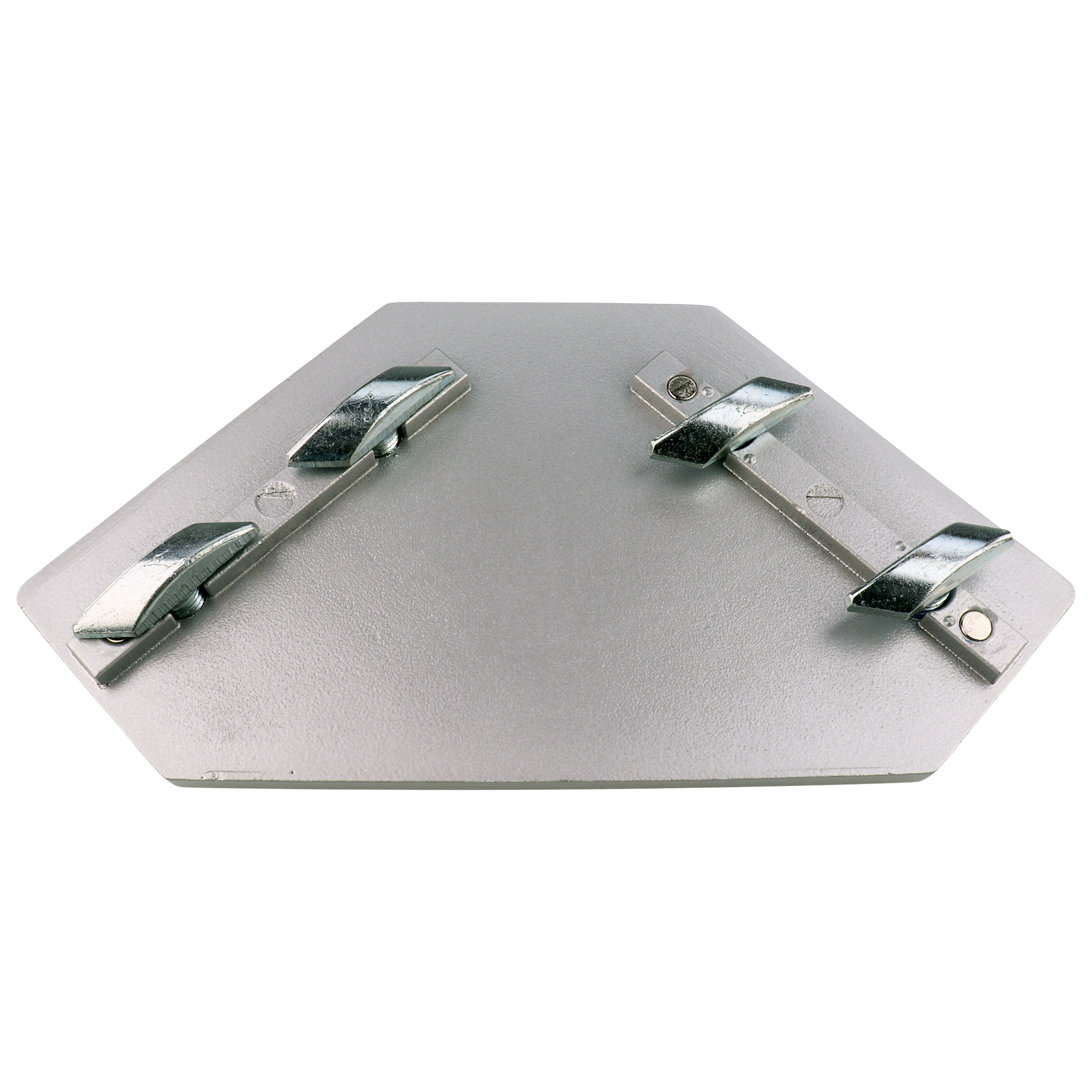

Plate, Connector Plate, 119x119x10, Aluminum die-cast, powder-coated, aluminum colored
| Quantity | Unit price |
|---|---|
| To 9 |
€23.26*
|
| To 99 |
€19.77*
|
| From 100 |
€12.85*
|
Product number:
11901
EAN:
4054775119012
Plate, Connector Plate, 119x119x10, Aluminum die-cast, powder-coated, aluminum colored, To connect two aluminum profiles quickly at right angle or parallel
direct inserting into the profile slot thanks to lengthwise or crosswise positioning of the pre-assembled magnet rhombus screws and counter sunk nuts with the 90° turnable inserts
the open screwing holes of the connection plate can be closed with the included cover caps
direct inserting into the profile slot thanks to lengthwise or crosswise positioning of the pre-assembled magnet rhombus screws and counter sunk nuts with the 90° turnable inserts
the open screwing holes of the connection plate can be closed with the included cover caps
| Colour: | aluminum colored |
|---|---|
| Compatibility: | Type I |
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| F Article No.: | 147247 |
| Grid dimension: | 40 mm |
| Location - Mounting: | screw-on |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Aluminiumdruckguß |
| Selection Number: | 093VM120120LN08 |
| Setinfo: | complete |
| Size (in mm): | 119x119x10 |
| Slot: | 8 |
| Surface: | powder-coated |
| Weight (in g): | 332 |
