Profile Slider, 80x32x15, Zinc, blanc
| Quantity | Unit price |
|---|---|
| To 9 |
€19.69*
|
| To 99 |
€17.72*
|
| From 100 |
€15.07*
|
Product number:
12819
EAN:
4054775128199

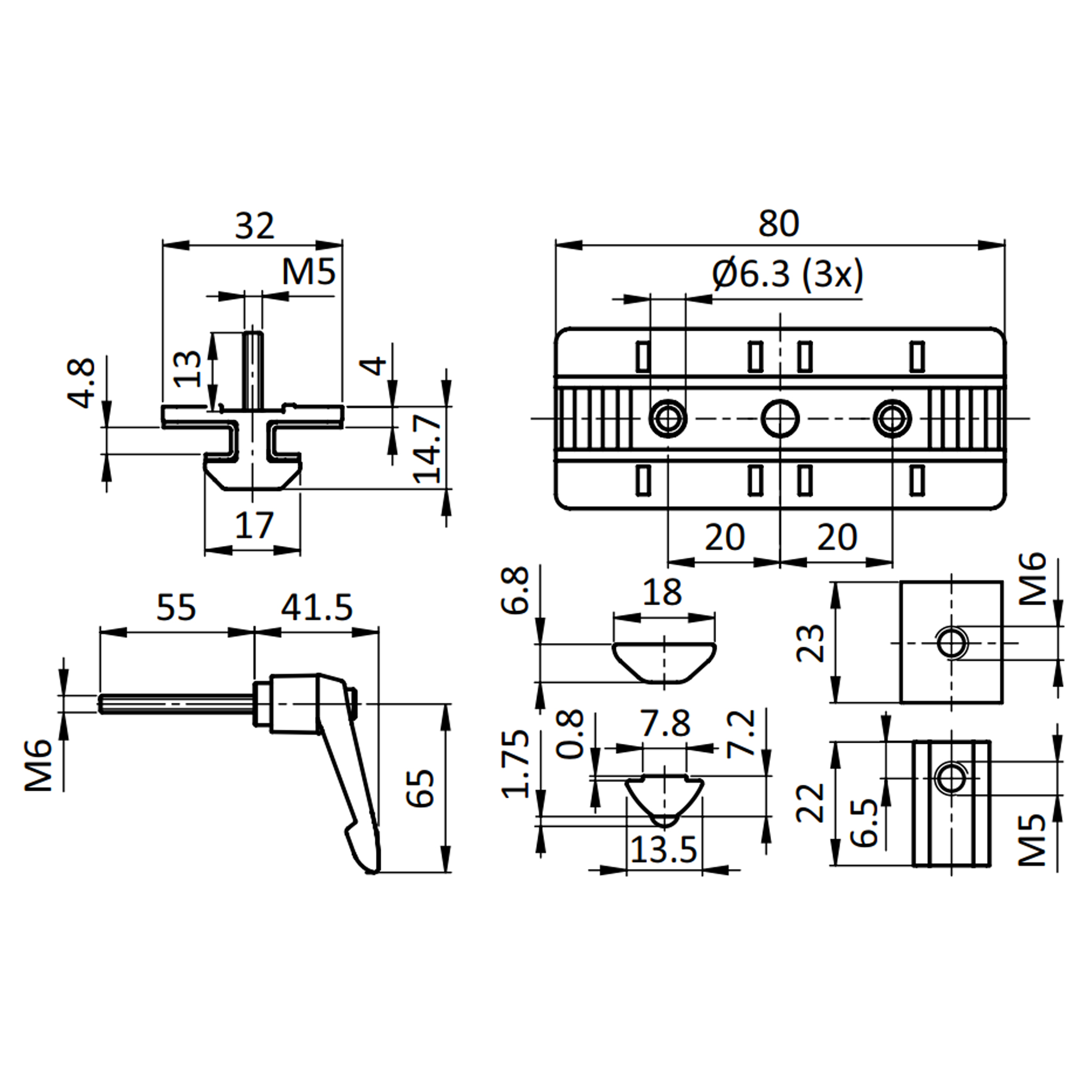

Profile Slider, 80x32x15, Zinc, blanc, To guide slidingly profiles with slot 8, loose bearing
The additional clamping feature for the slide carriage extends the range of applications, e.g as adjustable end stop
Retention force at maximum tightening torque (15 Nm) 600 N
The additional clamping feature for the slide carriage extends the range of applications, e.g as adjustable end stop
Retention force at maximum tightening torque (15 Nm) 600 N
| Compatibility: | Type I |
|---|---|
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| F Article No.: | 132883 |
| Grid dimension: | 40 mm |
| Location - Mounting: | retractable |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Zinkdruckguss |
| Selection Number: | 093PS0840LS01 |
| Setinfo: | complete |
| Size (in mm): | 80x32x15 |
| Slot: | 8 |
| Surface: | blanc |
| Weight (in g): | 160 |
