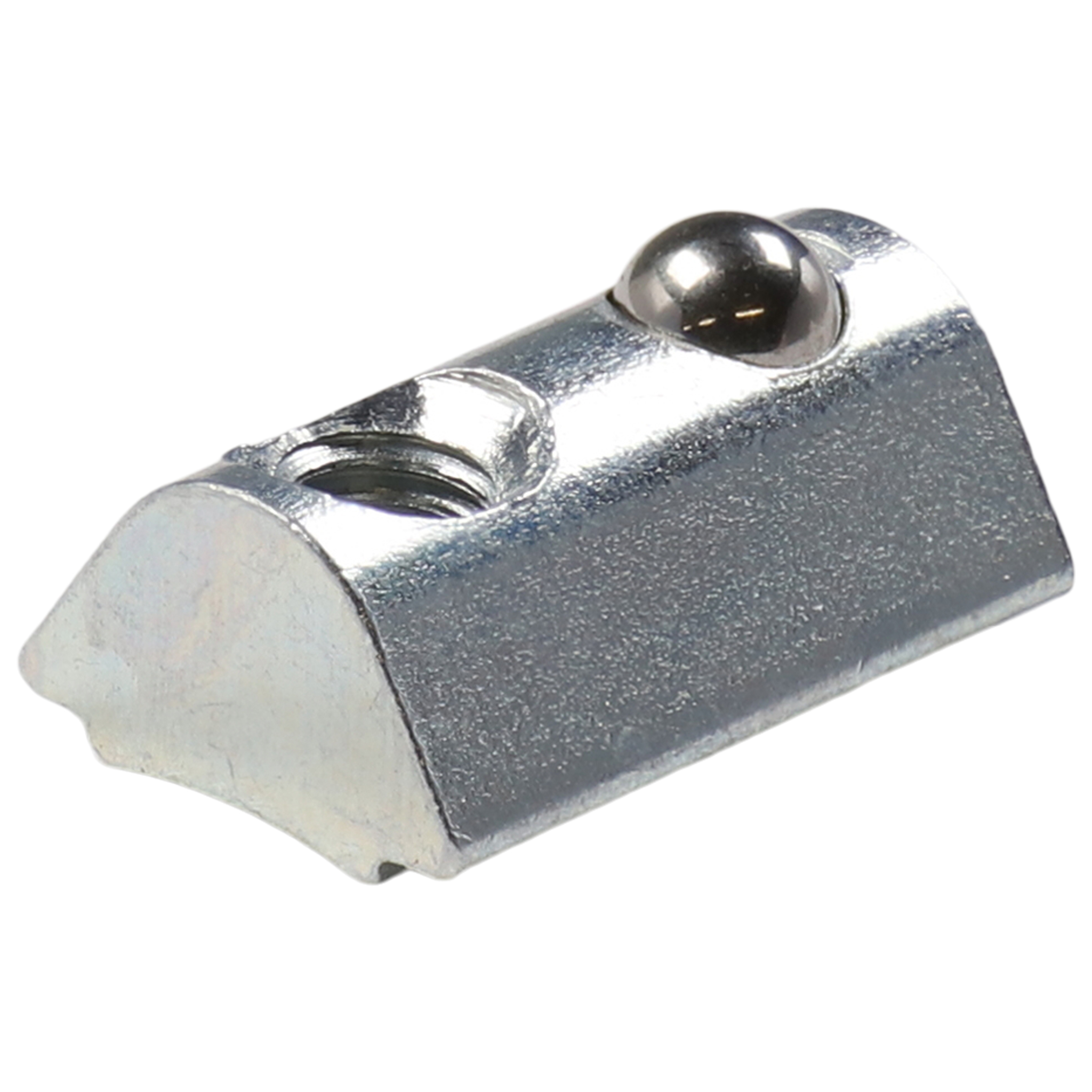

T-slot Nut M3, Slot 5, Type I, self-aligning, Steel, zink plated
T-slot Nut M3 Slot 5 Type I self-aligning steel zinc plated
Function and use in profile systems
T-slot Nut M3, Slot 5, Type I, self-aligning, steel, zinc plated is a fastening element for profiles with 5 mm slot width according to common type I profile systems. The self-aligning web centers the nut in the slot and simplifies positioning along the profile. The M3 thread enables positive-locking and durable fastening of screws and add-on parts in aluminium profiles. The zinc-plated steel design provides high strength and a robust connection for machine and equipment frames.
Typical industrial and home applications
Typical applications include frame and rack structures made from slot 5 profiles in machinery, laboratory setups and test rigs. In enclosures and guarding systems, the T-slot nuts are used to mount covers, sensors, limit switches or cable ducts. For private users they are common in 3D-printer frames, DIY CNC or laser cutter builds and workbench or shelving systems based on aluminium profiles. Engineers value the detachable, upgradeable screw connection directly in the slot, while hobby users benefit from simple, tool-based adjustments without drilling or welding.
Vorteile:
Vorteile:
- Self-aligning web for quick installation and secure positioning in 5 mm slots
- M3 thread compatible with a wide range of accessories and mounting parts
- Wide range of sizes and variants available for immediate delivery
- Zinc-plated steel for high mechanical load capacity and corrosion resistance
- Ideal for modular constructions, later modifications and extensions
Summary and availability
The component provides a reliable solution for fastening in slot 5 profile systems in both industrial and private projects. It is particularly suitable for modular, adjustable structures with reusable screw connections. At 3d24 the T-slot nut is available from stock in flexible quantities and can be ordered online at any time.
| Additional Property: | Step height 0,6 mm |
|---|---|
| Compatibility: | Type I |
| Compatible 3D Article No.: | 3DMC17136, 3DMC17140, 3DMC17144 |
| Compatible F Article No.: | 133307 |
| Compatible F Part No.: | 096523 |
| Customs Tariff Number: | 73181900 |
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Grid dimension: | 20 mm |
| Location - Mounting: | roll-in |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Steel |
| Model: | self-aligning |
| Size (in mm): | 12x7,6x4,3 |
| Slot: | 5 |
| Surface: | zinc plated |
| Threat: | M3 |
| Weight (in g): | 2 |
