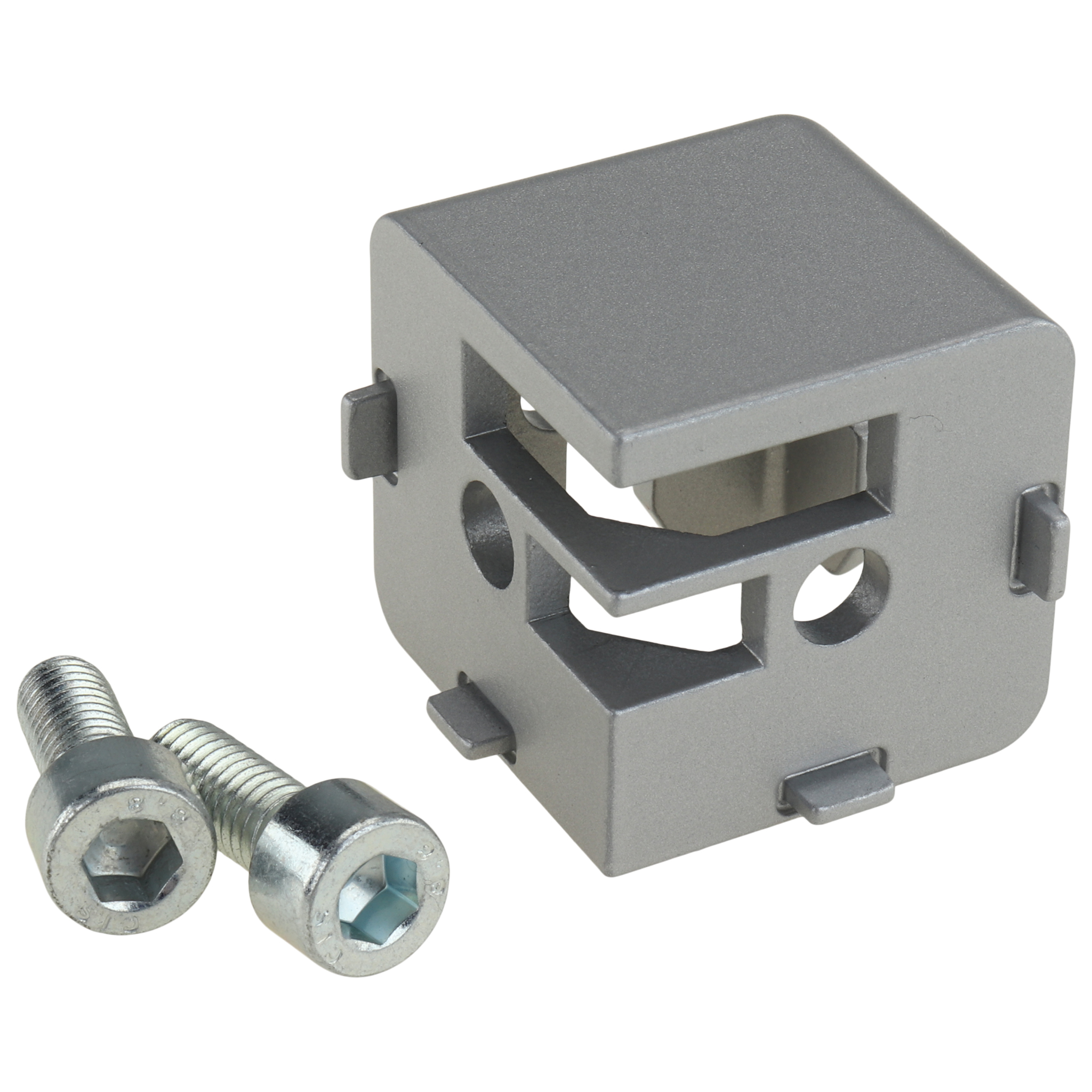

Clamp Profile Connector, 30x30x30, Zinc die-cast, powder-coated, aluminum coloured
Product number:
15777
EAN:
4054775157779
Clamp Profile Connector, 30x30x30, Zinc die-cast, powder-coated, aluminum coloured, To connect two aluminum profiles at right angles and to attach a frame element to a frame structure by means of a suitable mounting; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and locked
| Colour: | aluminum colored |
|---|---|
| Compatibility: | Type I |
| Compatible F Part No.: | 093WWC301N06S01 |
| ESD: | No |
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Grid dimension: | 30 mm |
| Location - Mounting: | Using screws M6 |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Zinc die-cast |
| Setinfo: | complete |

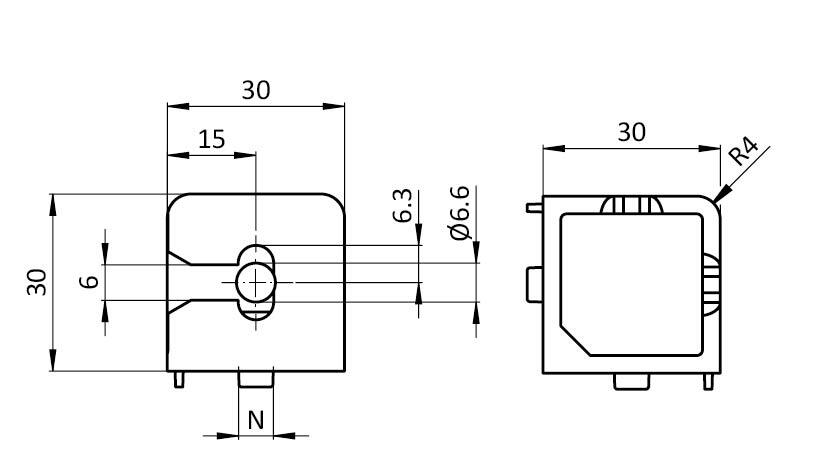

| Size (in mm): | 30x30x30 |
| Slot: | 6 |
| Surface: | powder coated |
| Weight (in g): | 71 |
