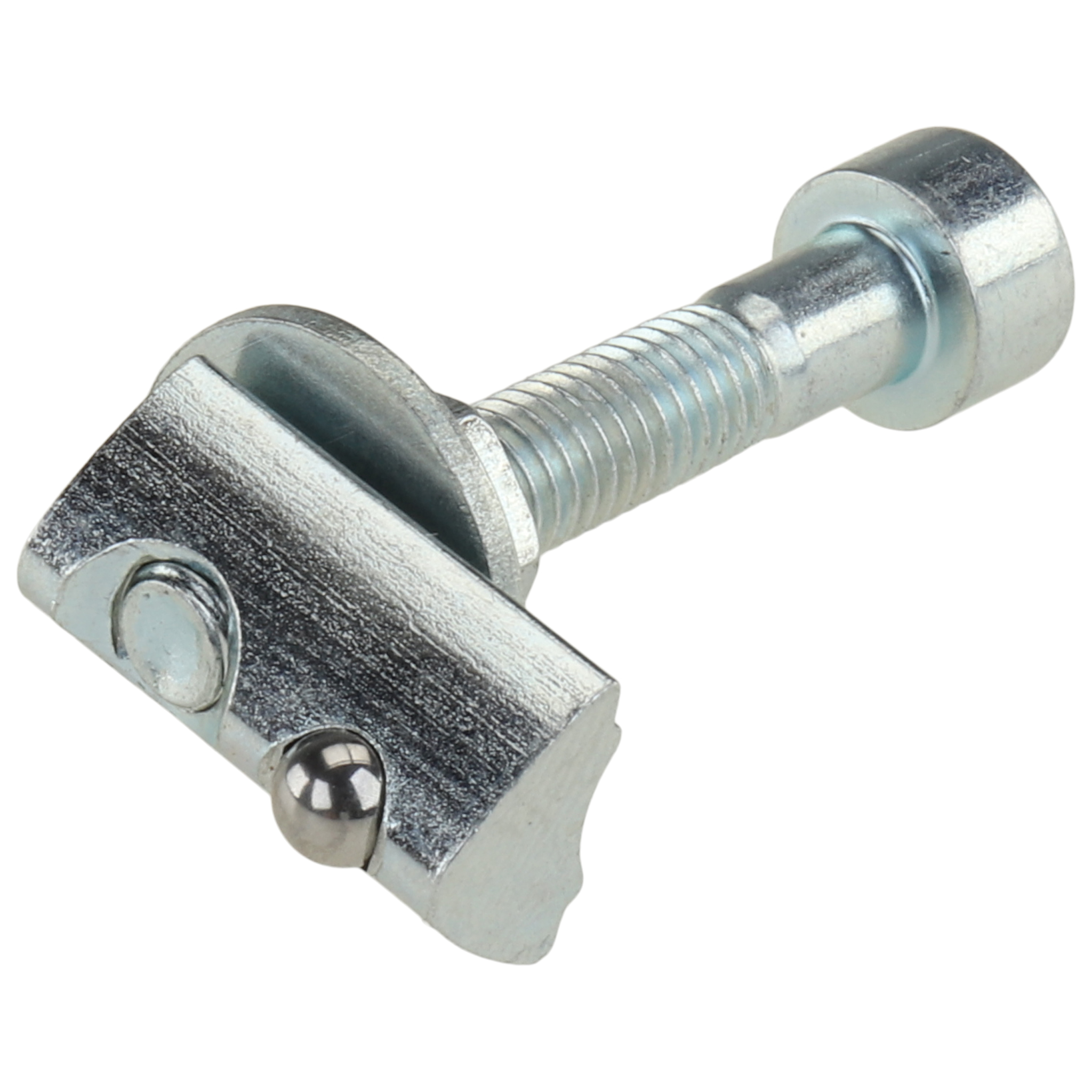

Hanger, 17x15x35, Steel, zinc plated
Product number:
15776
EAN:
4054775157762
Hanger, 17x15x35, Steel, zinc plated, To attach frame elements to a frame structureby means of clamp profile connectors; completely preassembled, for lateral insertion into the profile slot, fixation by means of a nut; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and locked; 12 mm gap between frame and structure, dimensional tolerances of +/- 3 mm can be compensated
| Compatibility: | Type I |
|---|---|
| Compatible F Article No.: | 172317 |
| Compatible F Part No.: | 093XWWC301N06 |
| Compatible I Article No.: | 0.0.441.11 |
| Customs Tariff Number: | 73269098 |
| ESD: | No |
| EU responsible person: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Grid dimension: | 30 mm |
| Location - Mounting: | Using screws M5 |
| Manufacturer information: | Inprocraft GmbH, Handwerkstr. 1, 91166 Georgensgmünd, Germany; info@inprocraft.com |
| Material: | Steel |
| Setinfo: | complete |
| Size (in mm): | 17x15x35 |
| Slot: | 6 |
| Surface: | zinc plated |
| Weight (in g): | 14 |
