Connection plates

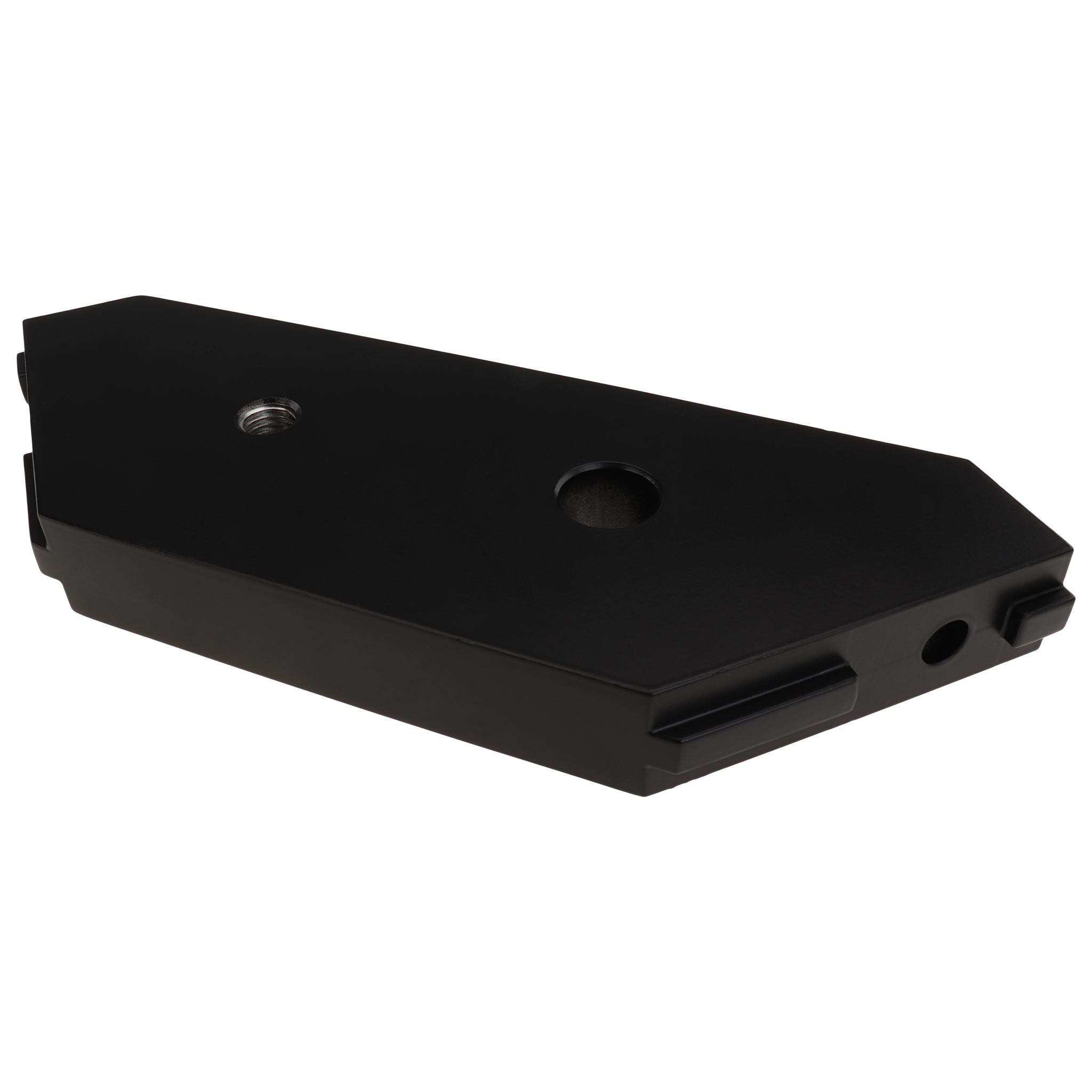

Plate, Bracing Plate 90°, 231x76.7x24, Aluminum die-cast, powder-coated, black

Plate, Bracing Plate 90°, 231x76.7x24, Aluminum die-cast, powder-coated, black, The Bracing Plate is used for leveling and floor mounting of machine frames

From €21.87*

Details

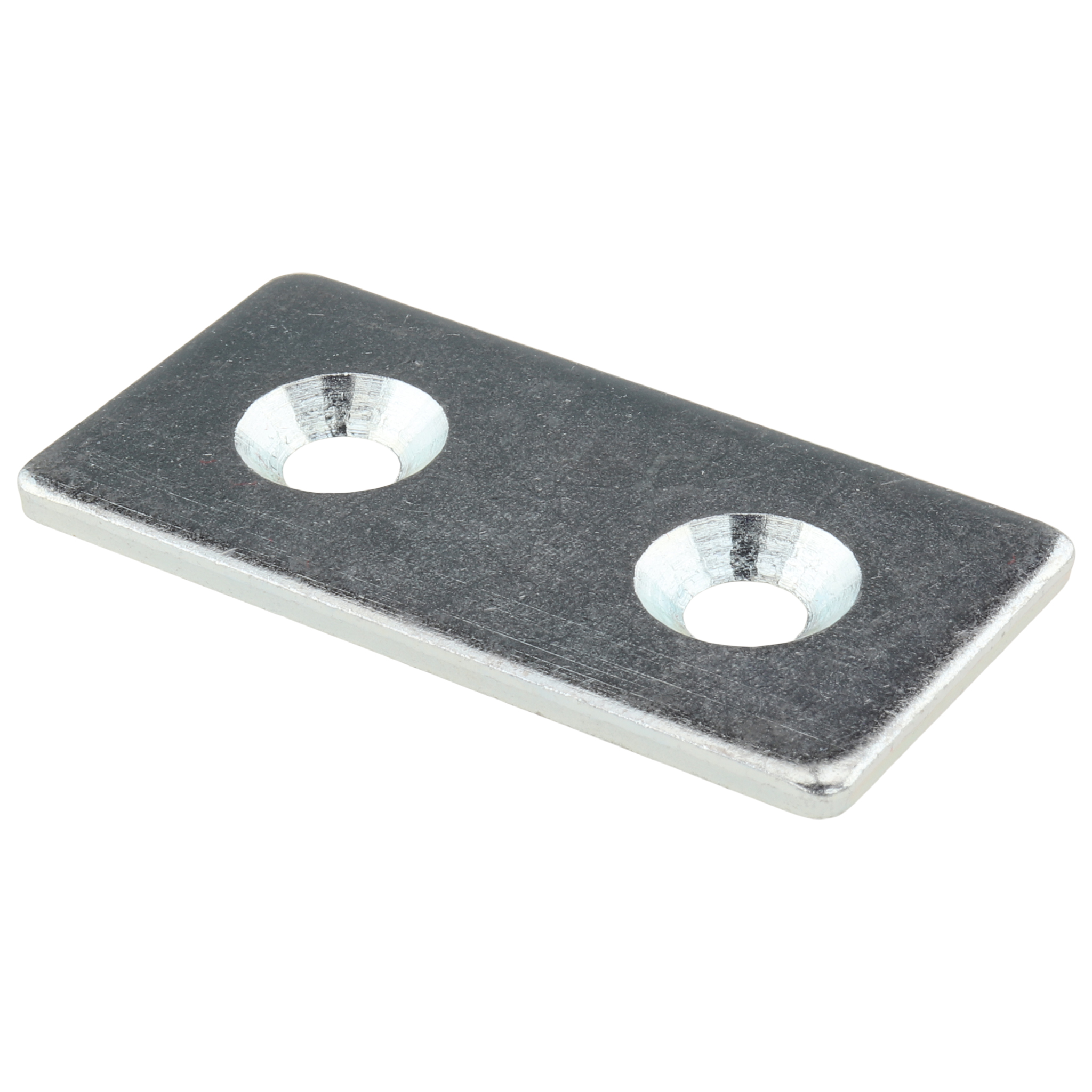

Plate, Connector Plate, 60x30x3, Steel, zink plated

Selection: verzinkt | Size (in mm): 60x30x3

Plate, Connector Plate, 60x30x3, Steel, zink plated, To connect two aluminum profiles

From €1.62*

Details

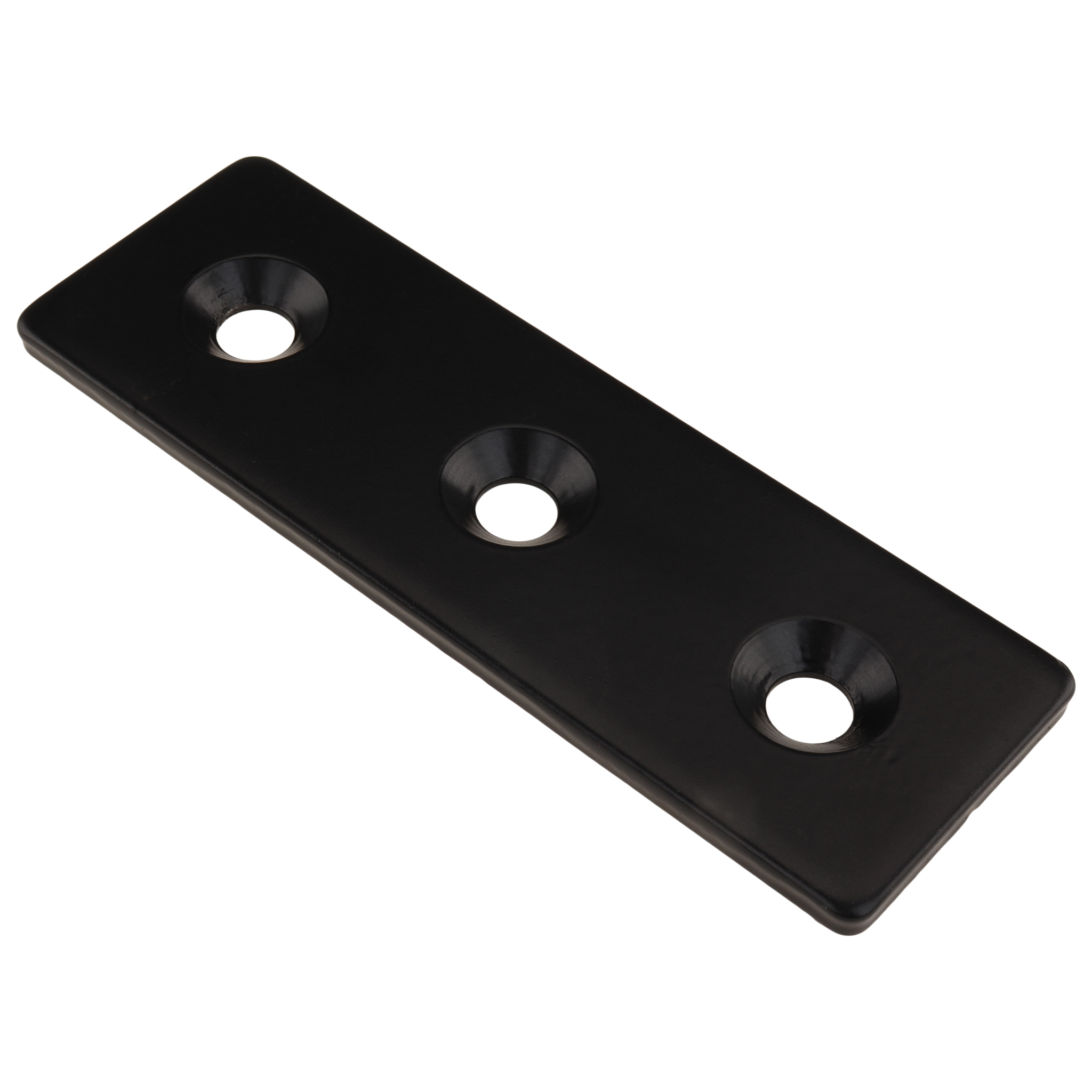

Plate, Connector Plate, 120x40x5, Steel, powder-coated, black

Selection: schwarz pulverbeschichtet | Size (in mm): 120x40x5

Plate, Connector Plate, 120x40x5, Steel, powder-coated, black, To connect two aluminum profiles

Variants from €3.22*

From €3.56*

Details

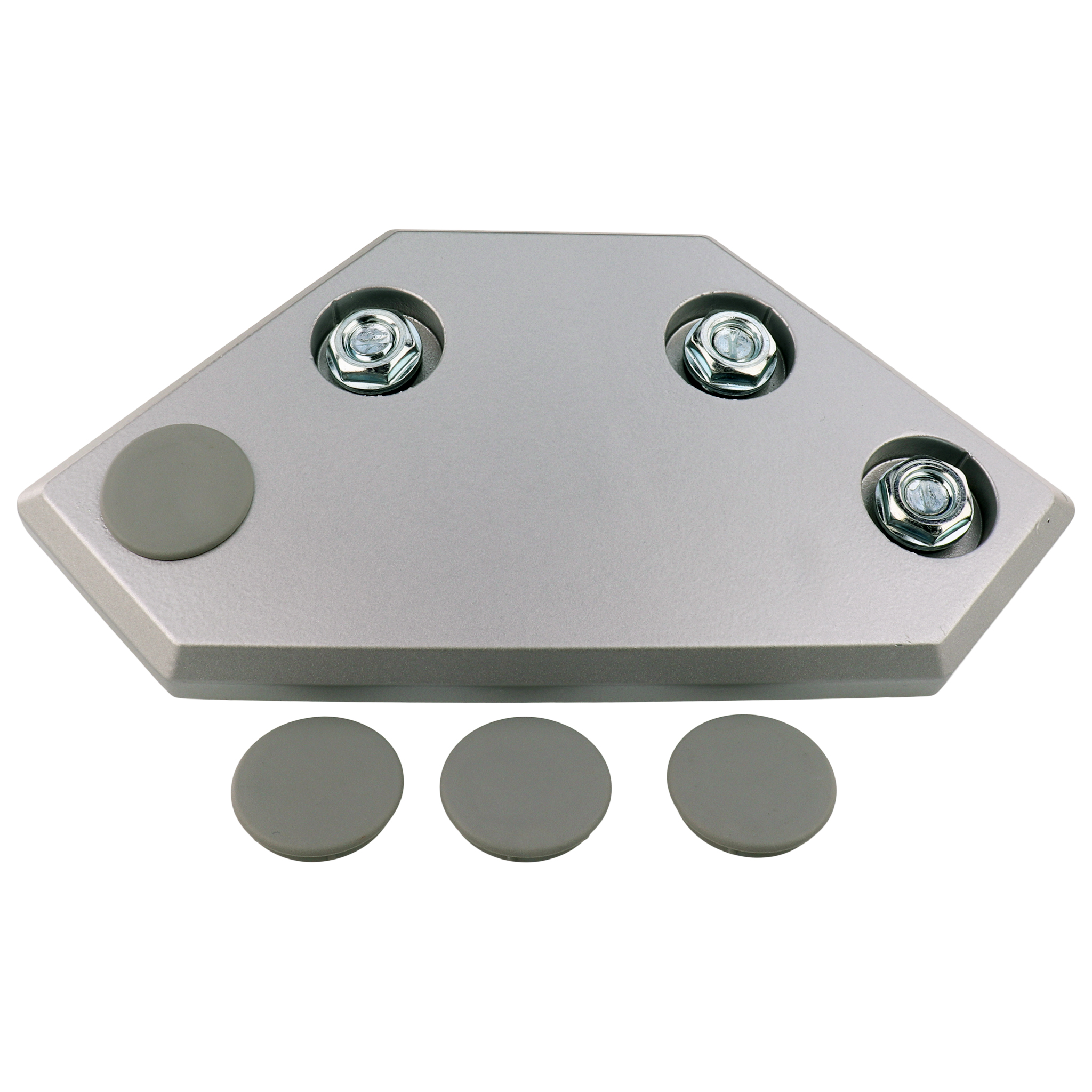

Plate, Connector Plate, 119x119x10, Aluminum die-cast, powder-coated, aluminum colored

Plate, Connector Plate, 119x119x10, Aluminum die-cast, powder-coated, aluminum colored, To connect two aluminum profiles quickly at right angle or paralleldirect inserting into the profile slot thanks to lengthwise or crosswise positioning of the pre-assembled magnet rhombus screws and counter sunk nuts with the 90° turnable insertsthe open screwing holes of the connection plate can be closed with the included cover caps

From €12.85*

Details

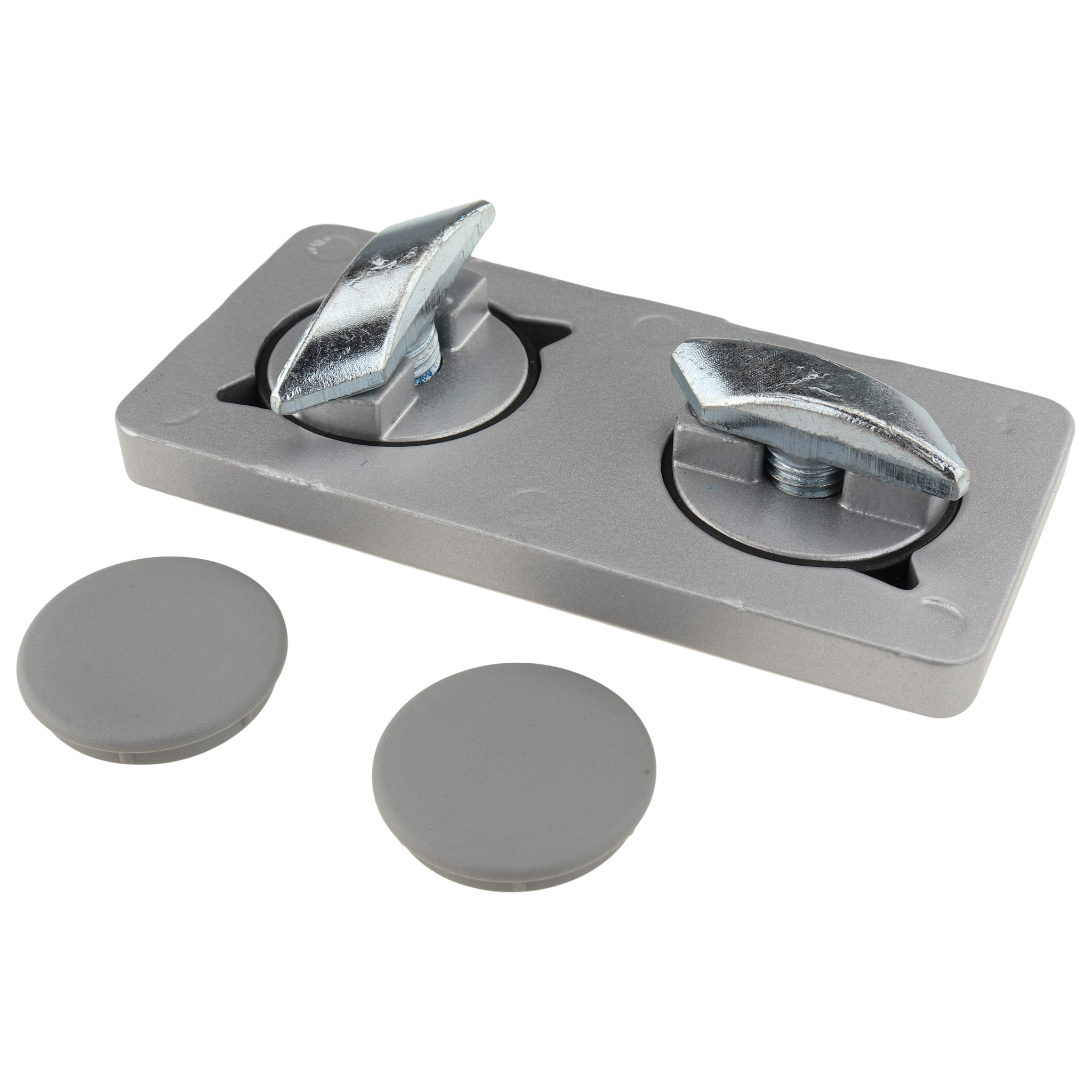

Plate, Connector Plate, 80x40x10, Aluminum die-cast, powder-coated, aluminum colored

Plate, Connector Plate, 80x40x10, Aluminum die-cast, powder-coated, aluminum colored, To connect two aluminum profiles quickly at right angle or paralleldirect inserting into the profile slot thanks to lengthwise or crosswise positioning of the pre-assembled magnet rhombus screws and counter sunk nuts with the 90° turnable insertsthe open screwing holes of the connection plate can be closed with the included cover caps

From €6.88*

Details

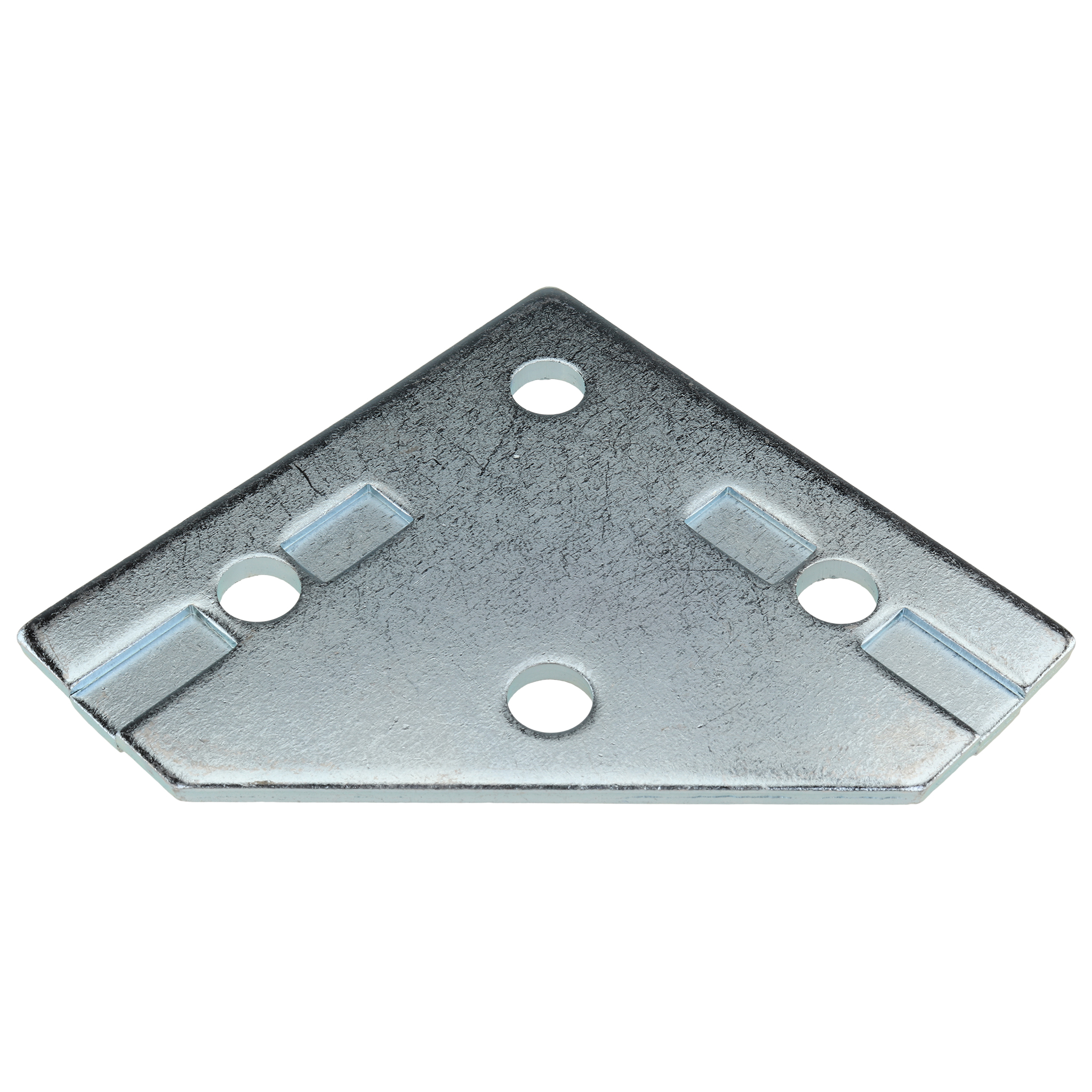

Plate, Connector Plate, 100x100x4, Steel, zink plated

Slot: 10

Plate, Connector Plate, 100x100x4, Steel, zink plated, To connect two aluminum profiles

From €2.27*

Details

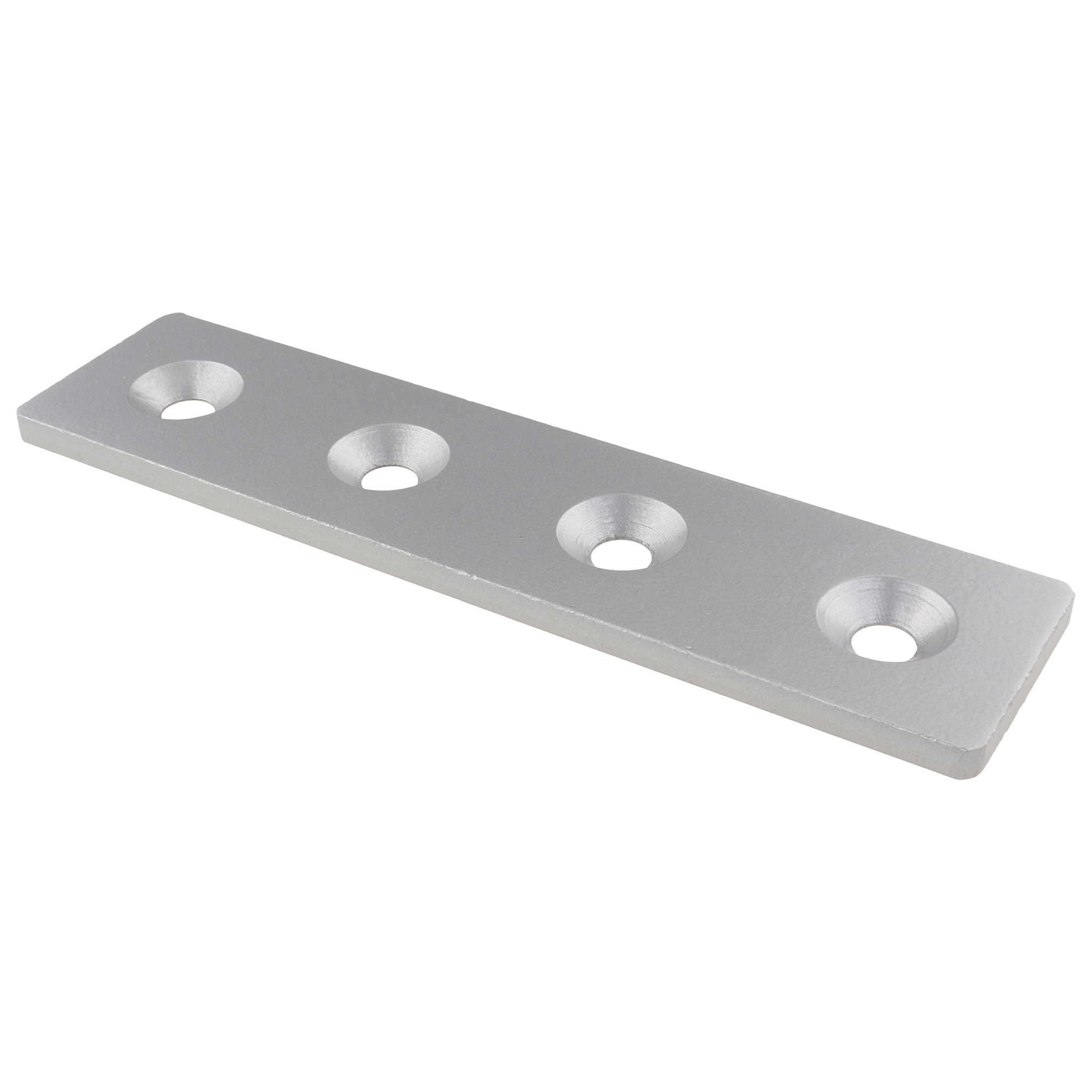

Plate, Connector Plate, 160x40x5, Steel, powder-coated, aluminum colored

Colour: aluminum colored

Plate, Connector Plate, 160x40x5, Steel, powder-coated, aluminum colored, To connect two aluminum profiles

Variants from €4.66*

From €5.14*

Details

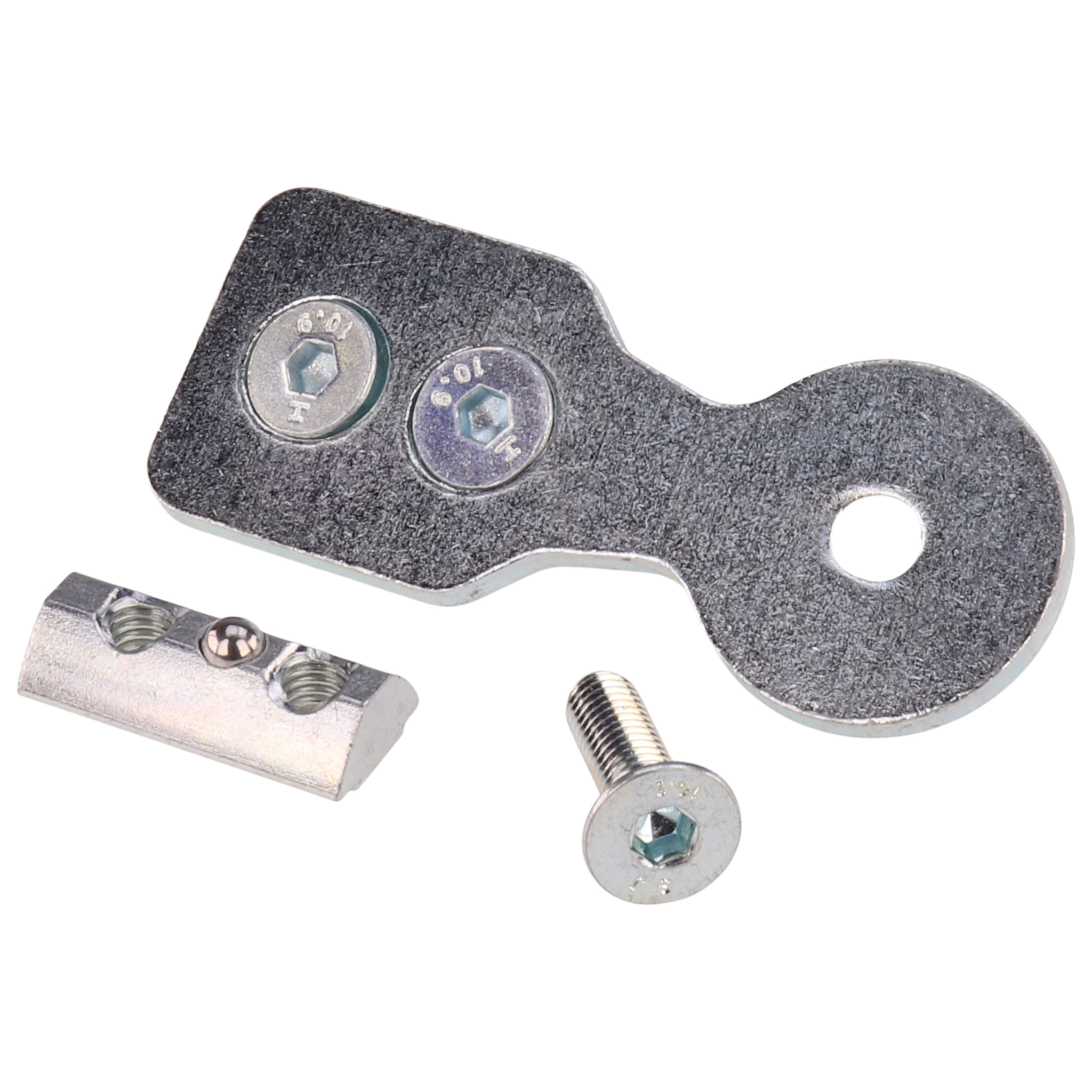

Connector Plate, 75x50x4, Steel, zink plated

Selection: Version 2

Connector Plate, 75x50x4, Steel, zink plated, To connect a tubular frame profile with D 30 mm outer diameter with an aluminum profile at right anglesScrew connetion to the core hole M6 of the tubular frame profile D 30 mm or to the threaded sleeve ALD30 M6 for tubular frame profiles

Variants from €4.81*

From €4.91*

Details

Connection plates

...profiles and stabilise constructions. Made of robust materials such as aluminium or steel, they ensure a reliable connection and allow for the easy assembly of profiles in different configurations. These plates offer a versatile solution for mechanical engineering, as they provide a fast and efficient way to adapt and expand structures. Their easy handling and high load-bearing capacity make them an ideal choice for a wide range of applications.
