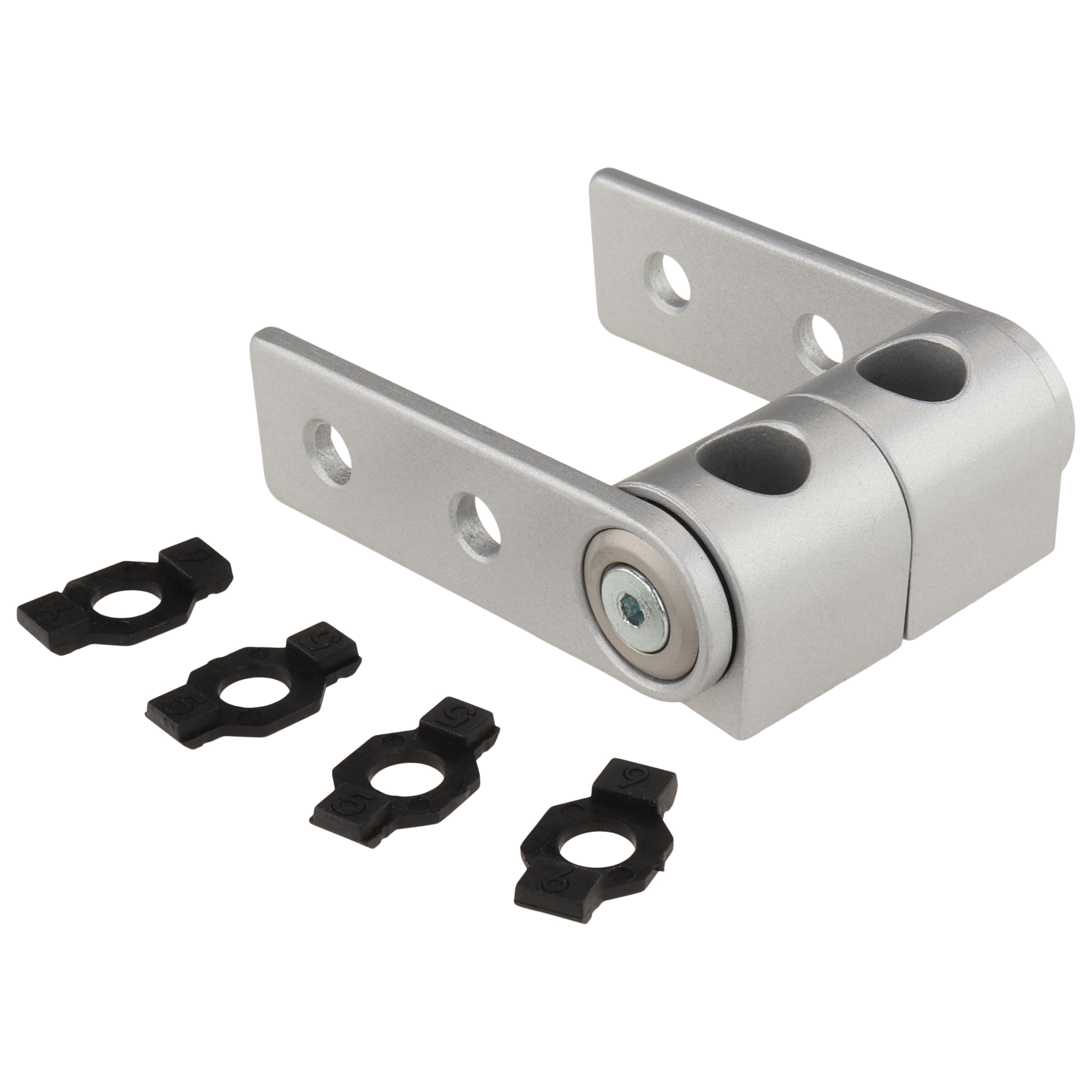

Pivot Joint, 20x40x61, Aluminum die-cast, powder-coated, aluminum colored

Size (in mm): 20

Pivot Joint, 20x40x61, Aluminum die-cast, powder-coated, aluminum colored, To make a pivoting connection between two profileswith separate locating pins

From €19.23*

Details

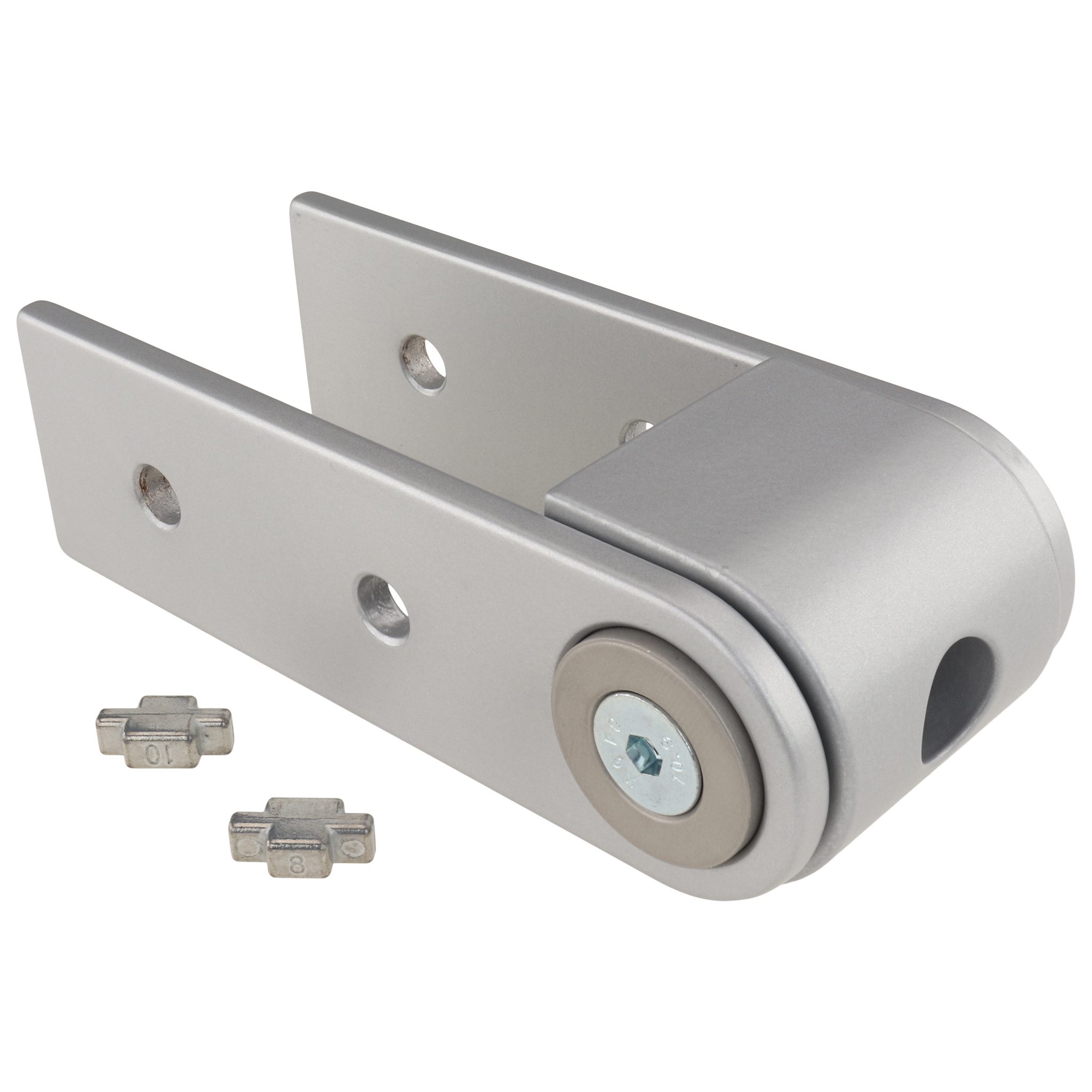

Pivot Joint, 45x45x142, Aluminum die-cast, powder-coated, aluminum colored

Size (in mm): 45

Pivot Joint, 45x45x142, Aluminum die-cast, powder-coated, aluminum colored, To make a pivoting connection between two profileswith separate locating pins

Variants from €13.73*

From €21.92*

Details

Pivot Joint, 40x40x60, Zinc die-cast, powder-coated, aluminum colored

Selection: ohne Klemmhebel | Slot: Nut - / 8 / 10

Pivot Joint, 40x40x60, Zinc die-cast, powder-coated, aluminum colored, To make a pivoting connection between two profiles or panelswith separate locating pins for slot 8 and10by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position

From €13.30*

Details

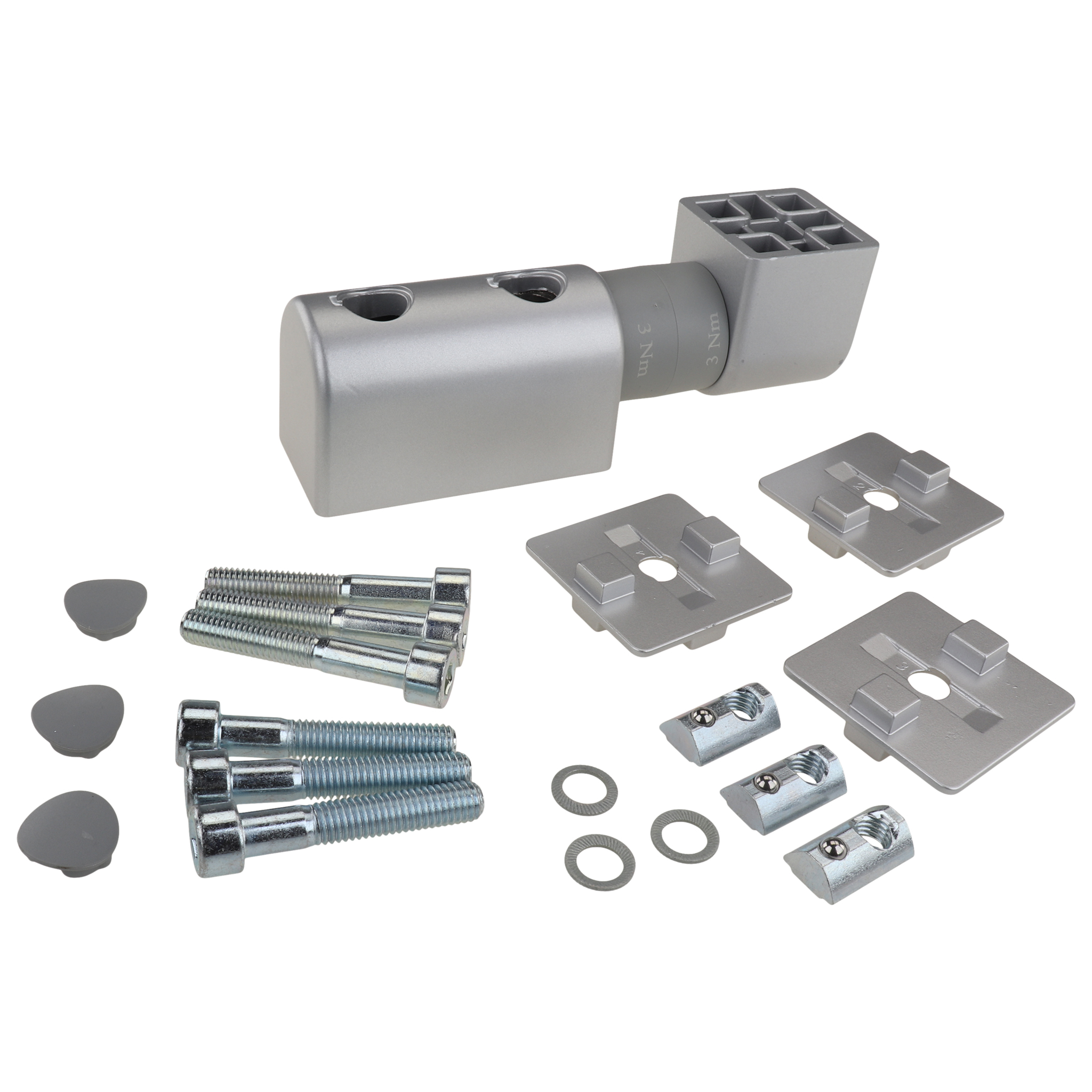

Friction Joint, 40x40x150, Aluminum die-cast, laquered, aluminum colored

Selection: Widerstandsmoment = 15,0 Nm

Friction Joint, 40x40x150, Aluminum die-cast, laquered, aluminum colored, Connection joint with friction for the creation of system arms using profile piecespivotable 360°Friction joint can be attached lateral, transverse, or on the face of the profileif attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)

From €105.32*

Details

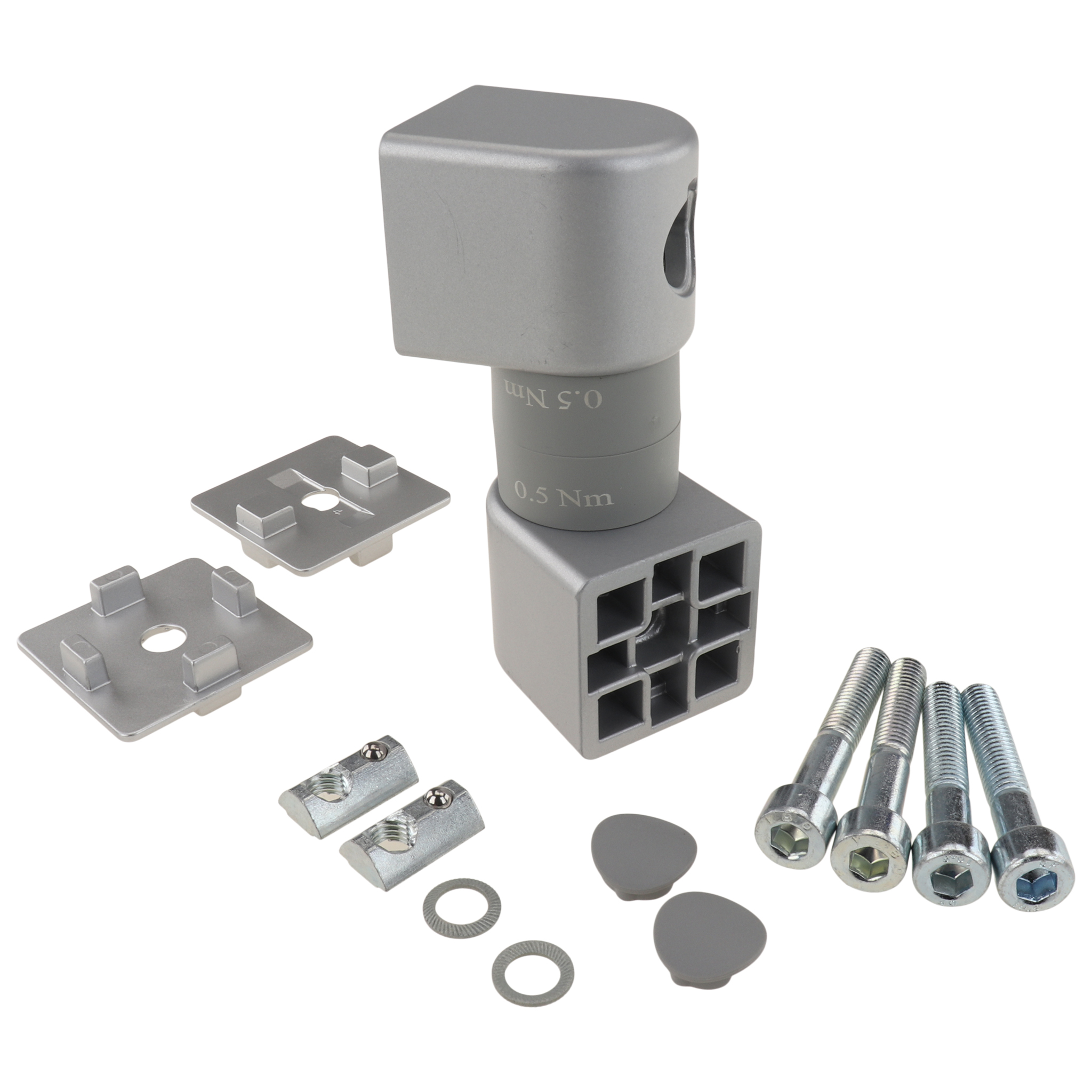

Friction Joint, 40x60x110, Aluminum die-cast, laquered, aluminum colored

Selection: Widerstandsmoment = 0,5 Nm

Friction Joint, 40x60x110, Aluminum die-cast, laquered, aluminum colored, Connection joint with friction for the creation of system arms using profile piecespivotable 360°Friction joint can be attached lateral, transverse, or on the face of the profileif attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)

From €83.15*

Details

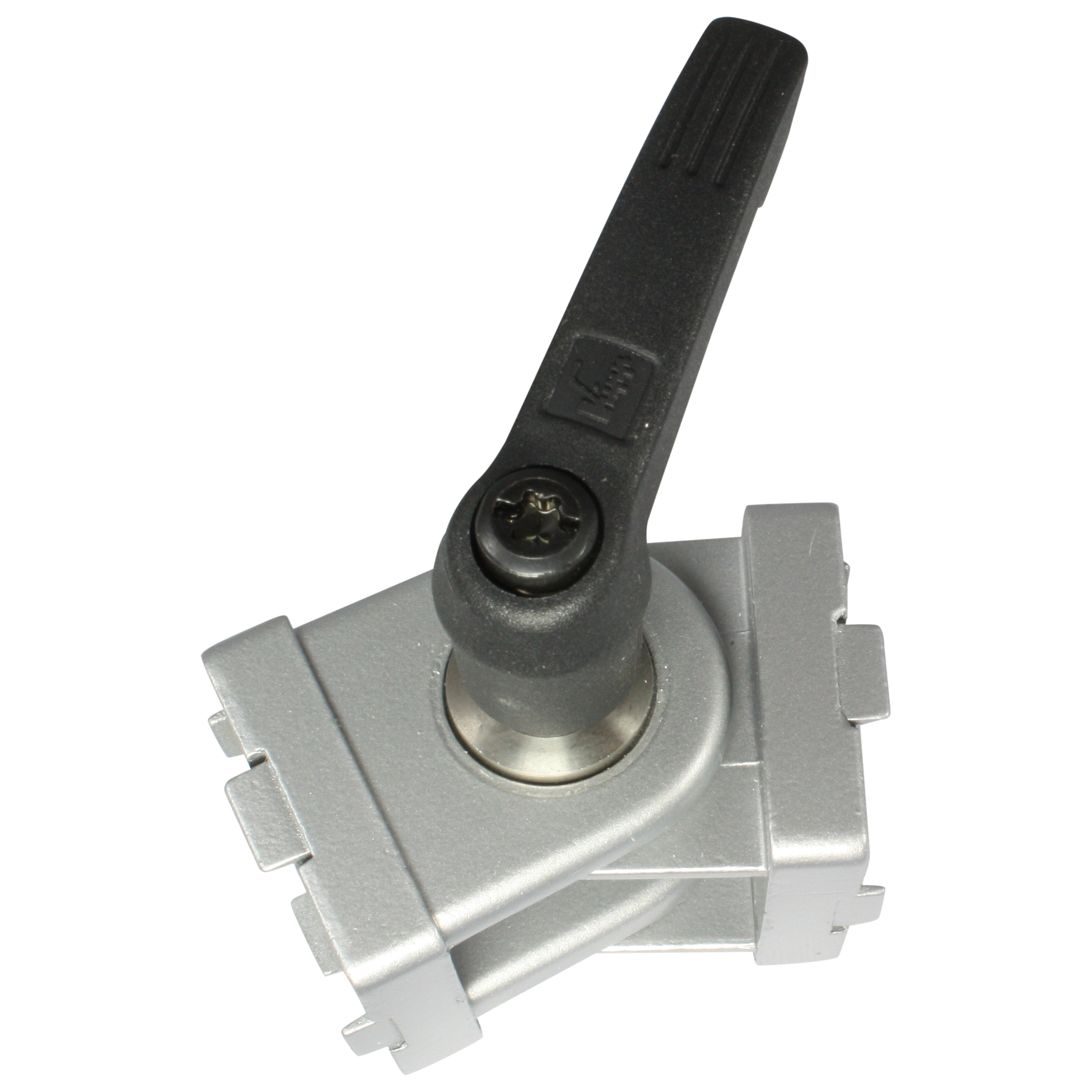

Pivot Joint, 30x30x45, Zinc die-cast, powder-coated, aluminum colored

Selection: mit Klemmhebel | Slot: Typ B - Nut 8

Pivot Joint, 30x30x45, Zinc die-cast, powder-coated, aluminum colored, To make a pivoting connection between 2 profiles or panels which can be fixed at any anglefixed locating pins for slot 8 optionalby tightening or loosening the screws and the locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position

Variants from €15.08*

From €20.96*

Details

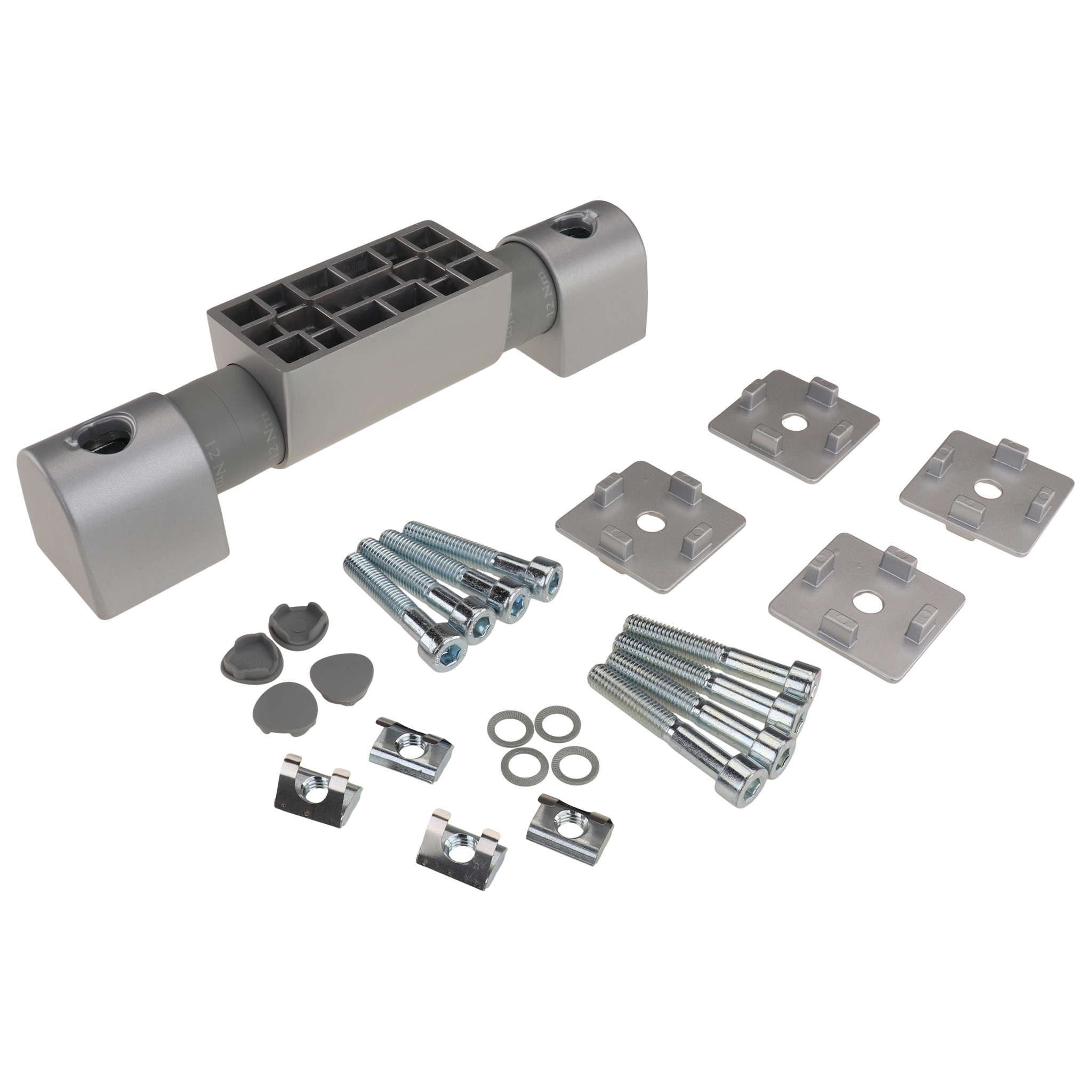

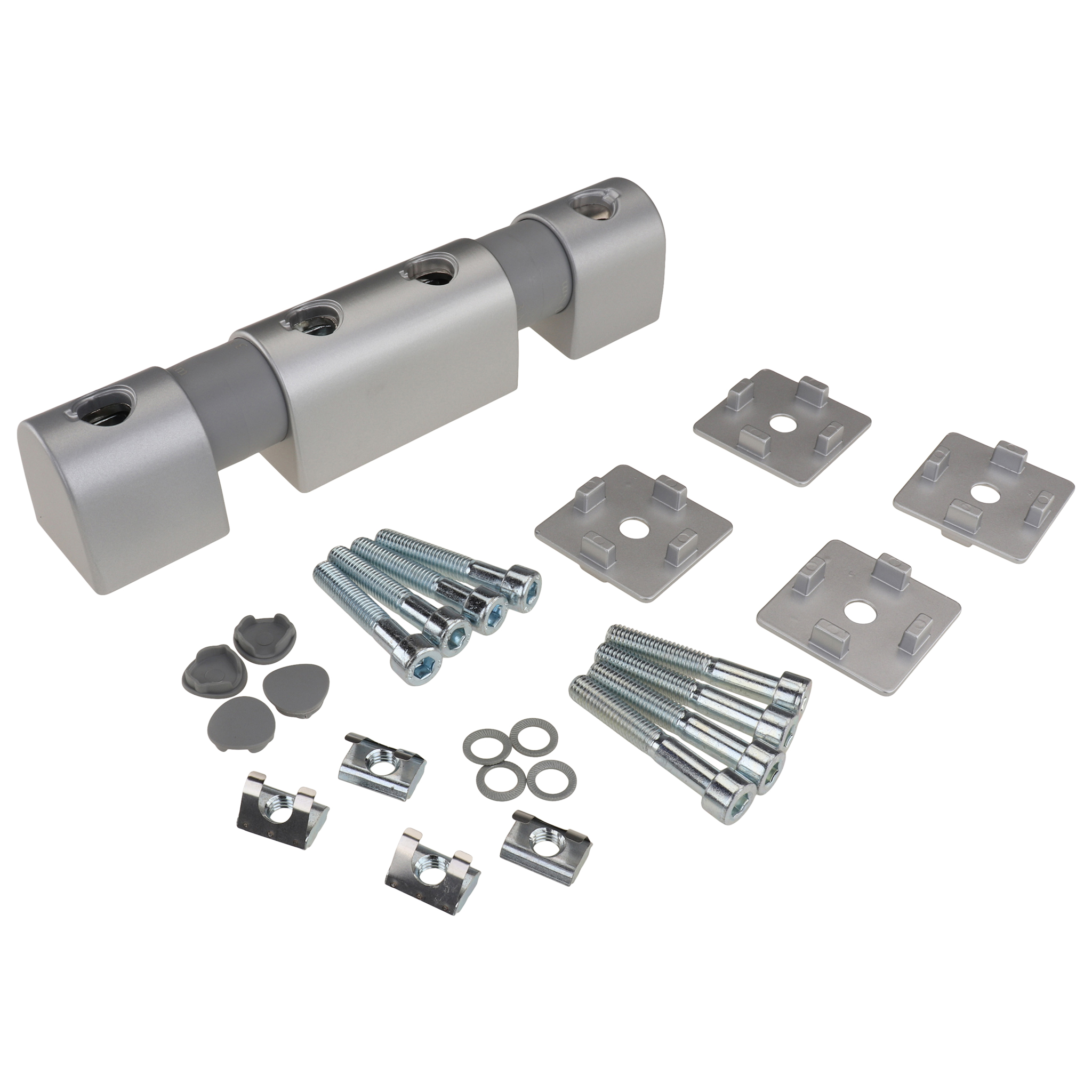

Friction Joint, 45x45x230, Aluminum die-cast, laquered, aluminum colored

Selection: Widerstandsmoment = 2 x 12,0 Nm

Friction Joint, 45x45x230, Aluminum die-cast, laquered, aluminum colored, Connection joint with friction for the creation of system arms using profile piecespivotable 360°Friction joint can be attached lateral, transverse, or on the face of the profileif attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)

From €152.99*

Details

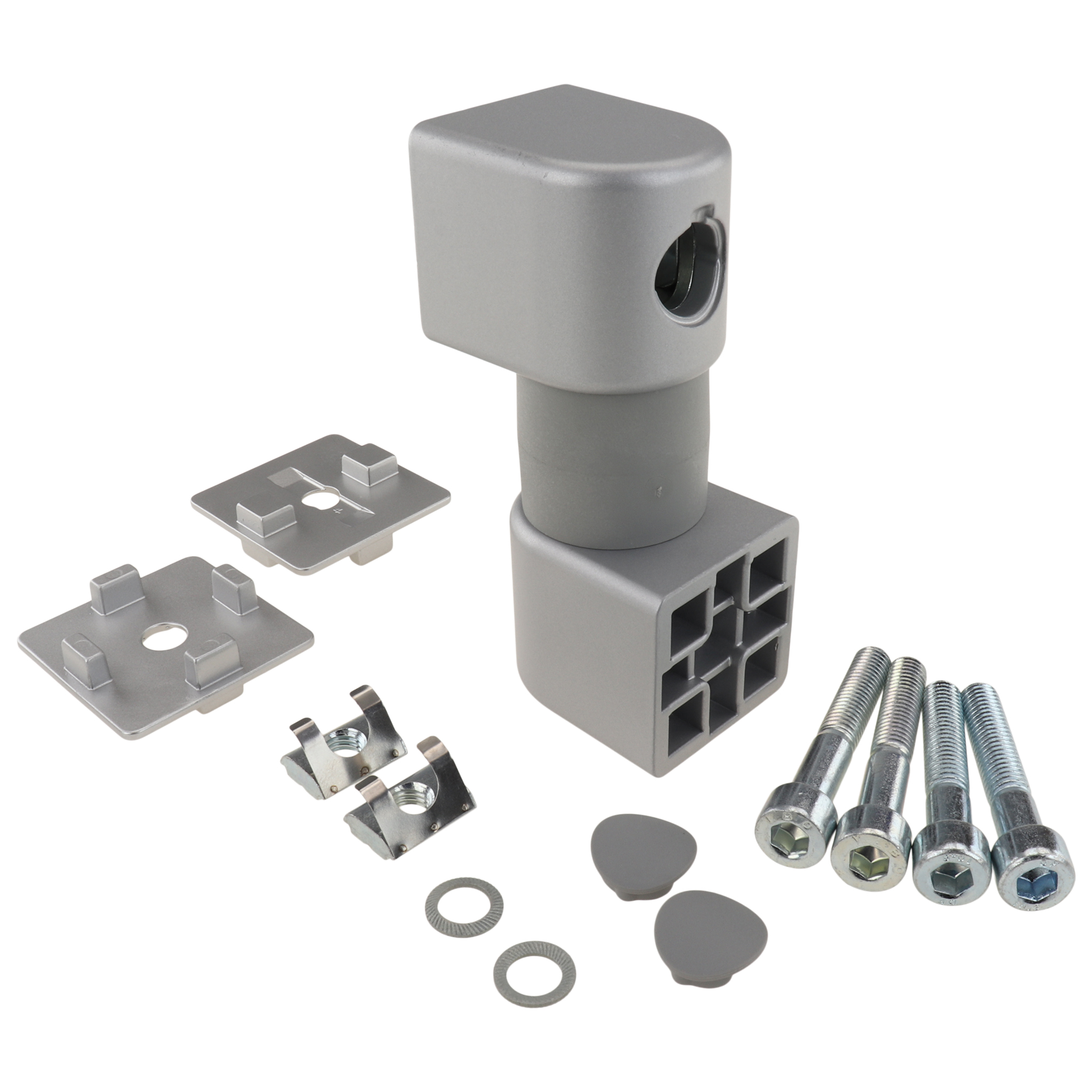

Friction Joint, 40x40x110, Aluminum die-cast, laquered, aluminum colored

Selection: Widerstandsmoment = 12,0 Nm

Friction Joint, 40x40x110, Aluminum die-cast, laquered, aluminum colored, Connection joint with friction for the creation of system arms using profile piecespivotable 360°Friction joint can be attached lateral, transverse, or on the face of the profileif attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)

From €83.15*

Details

Friction Joint, 40x40x150, Aluminum die-cast, laquered, aluminum colored

Selection: Widerstandsmoment = 3,0 Nm

From €105.32*

Details

Pivot Joint, 45x45x76, Aluminum die-cast, powder-coated, aluminum colored

Material: Aluminum die-cast | Selection: ohne Klemmhebel

Pivot Joint, 45x45x76, Aluminum die-cast, powder-coated, aluminum colored, To make a pivoting connection between two profiles or panelswith separate locating pins for slot 8 and10by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position

Variants from €15.37*

From €17.24*

Details

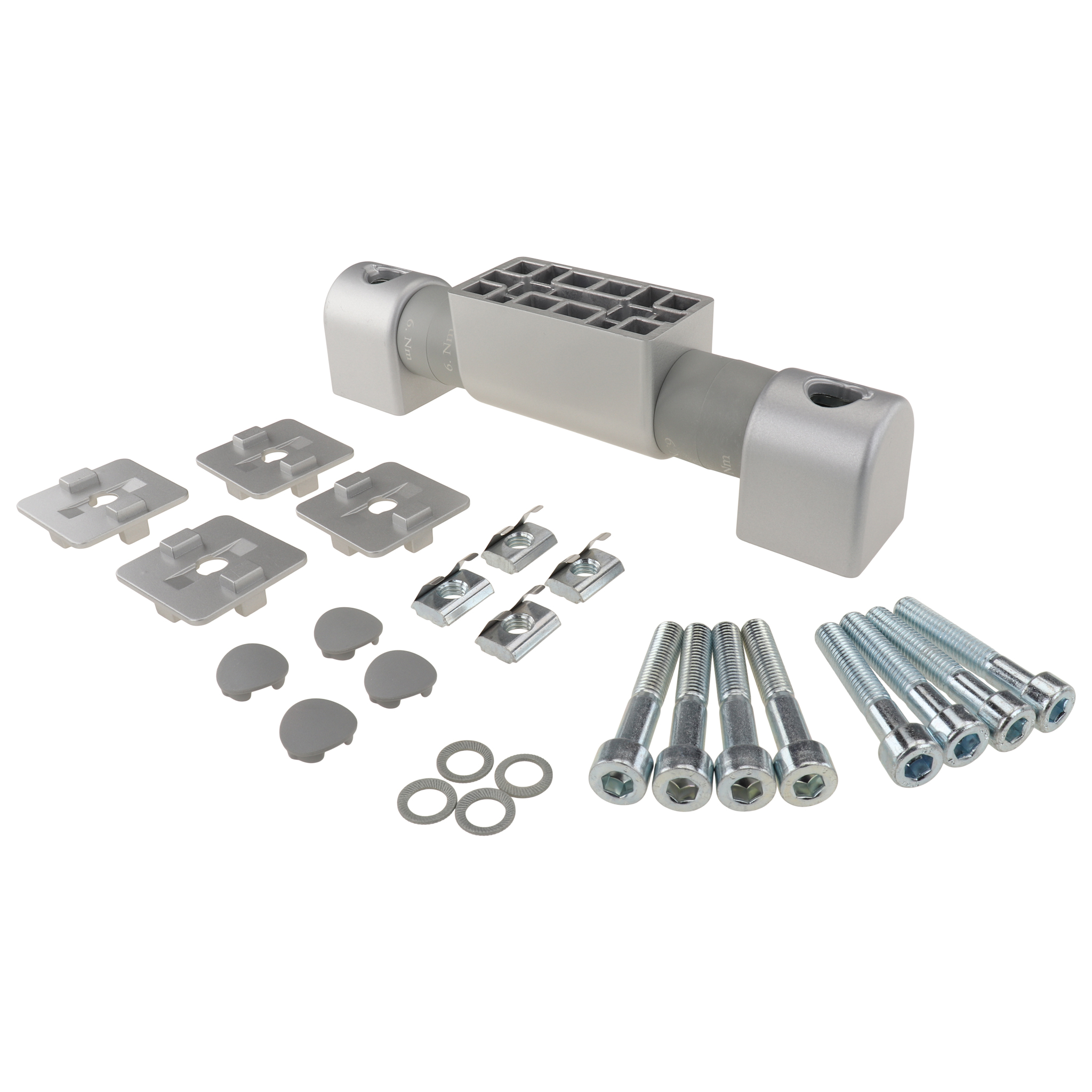

Friction Joint, 40x40x220, Aluminum die-cast, laquered, aluminum colored

Selection: Widerstandsmoment = 2 x 3,0 Nm

Friction Joint, 40x40x220, Aluminum die-cast, laquered, aluminum colored, Connection joint with friction for the creation of system arms using profile piecespivotable 360°Friction joint can be attached lateral, transverse, or on the face of the profileif attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)

From €149.67*

Details

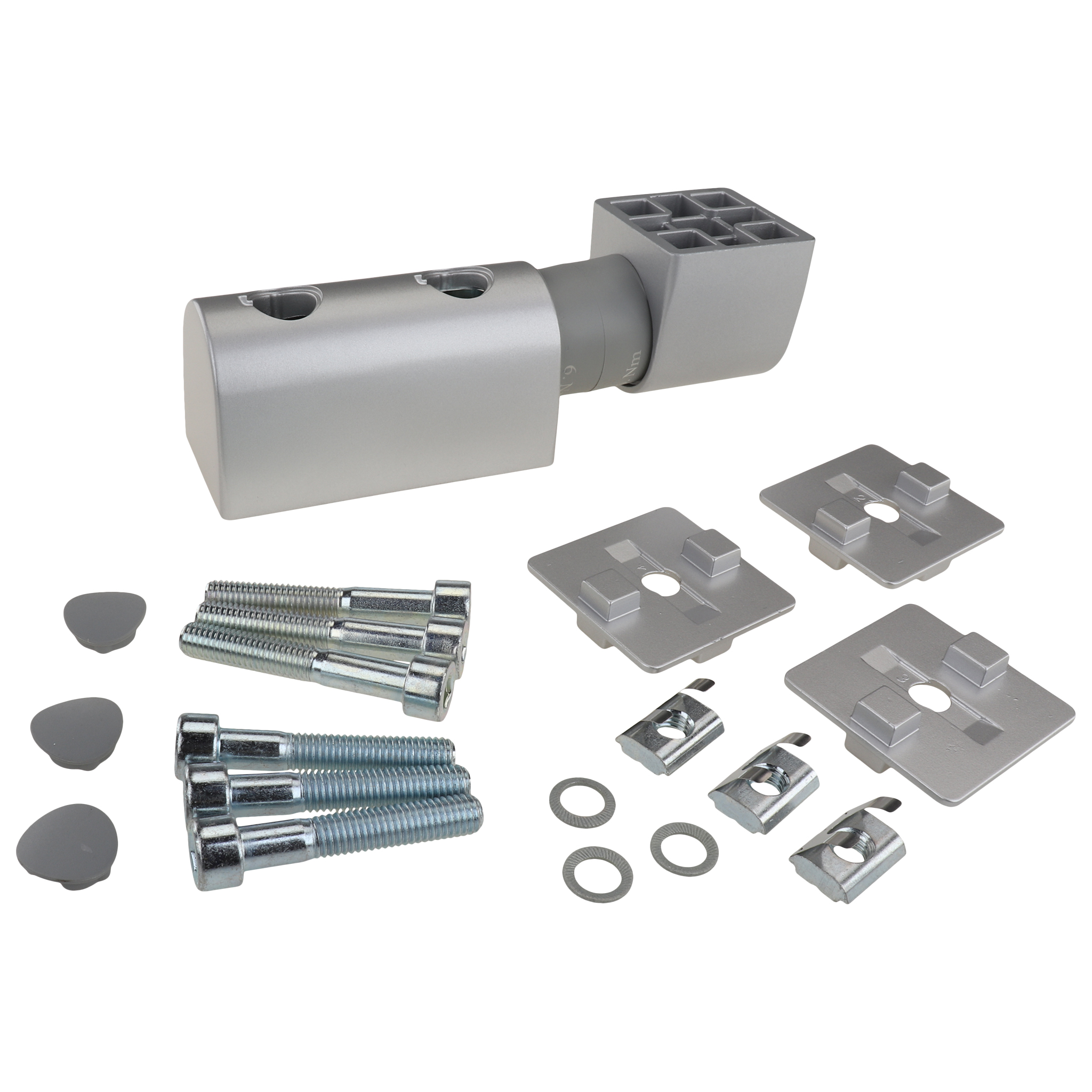

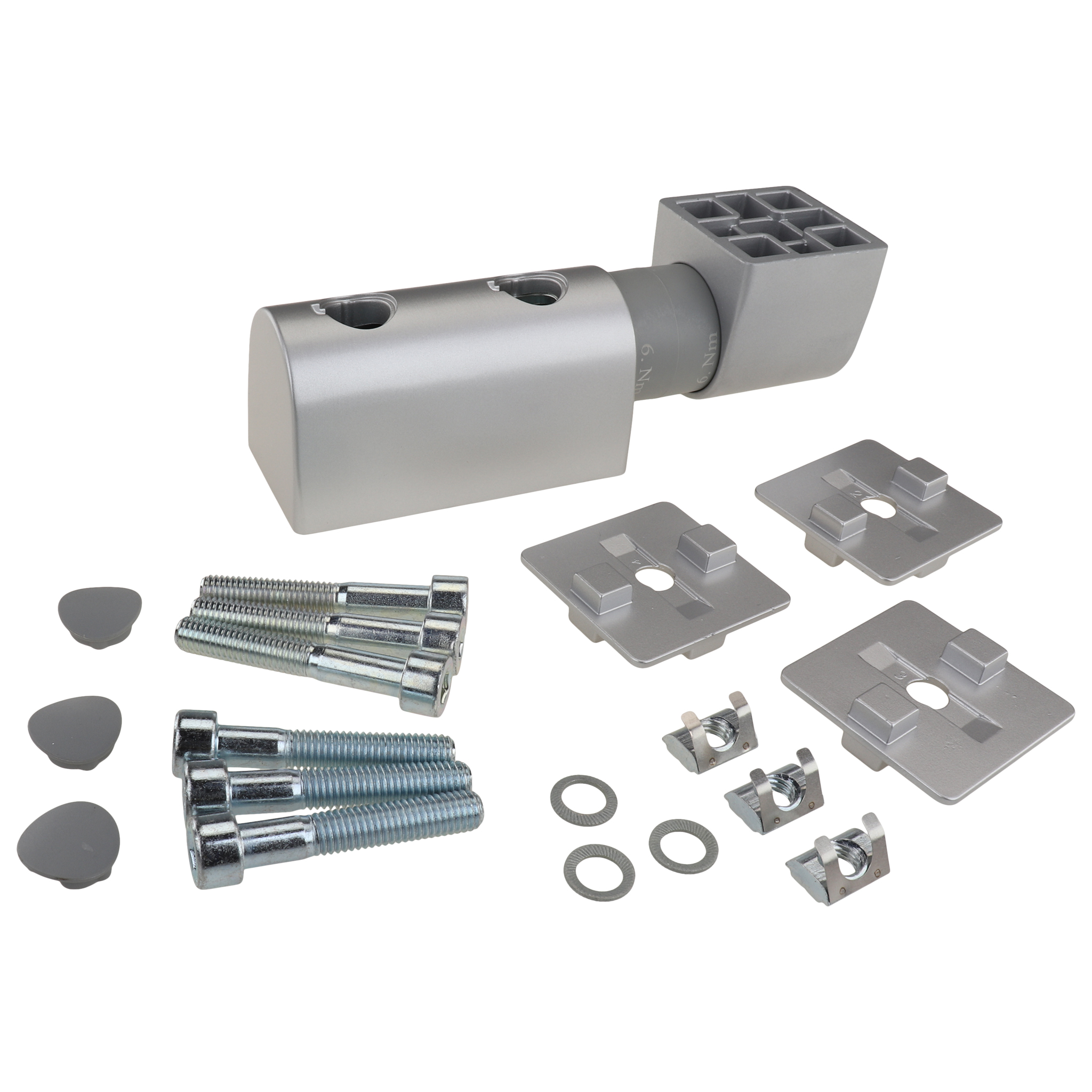

Friction Joint, 45x45x160, Aluminum die-cast, laquered, aluminum colored

Selection: Widerstandsmoment = 6,0 Nm

Friction Joint, 45x45x160, Aluminum die-cast, laquered, aluminum colored, Connection joint with friction for the creation of system arms using profile piecespivotable 360°Friction joint can be attached lateral, transverse, or on the face of the profileif attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)

From €106.43*

Details

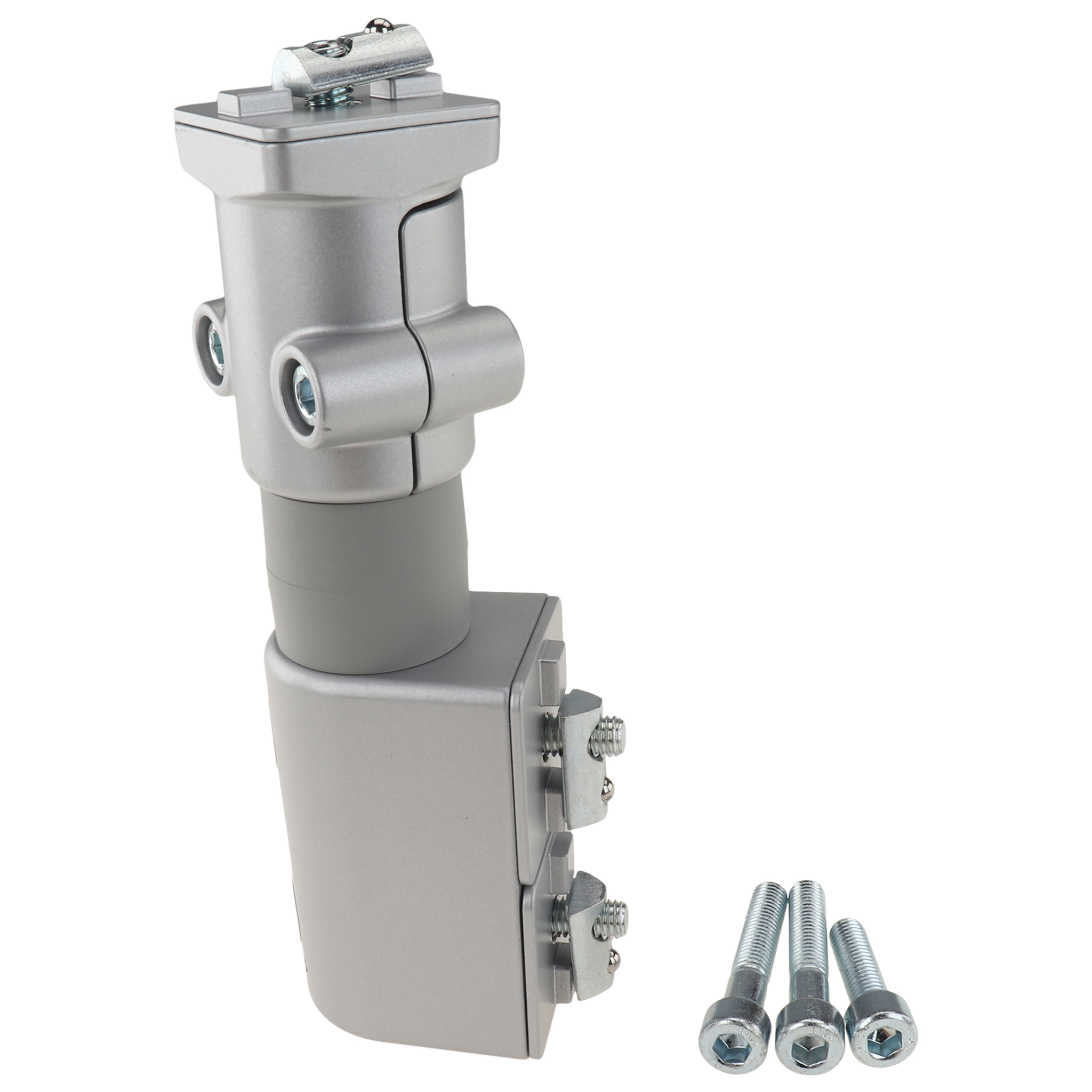

End Friction Joint, 40x40x185, Aluminum die-cast, laquered, aluminum colored

Selection: Widerstandsmoment = 12,0 Nm

End Friction Joint, 40x40x185, Aluminum die-cast, laquered, aluminum colored, Connection joint with friction for the creation of system arms using profile piecespivotable 360°End side can be attached lateral or transverse on the profile slotfriction axis is positioned at right angles to the profileFriction joint side can be attached lateral, transverse, or on the face of the profileif attached on the front face, the core hole of the respective profile must be M8 threaded (min. 20 mm deep)

From €92.93*

Details

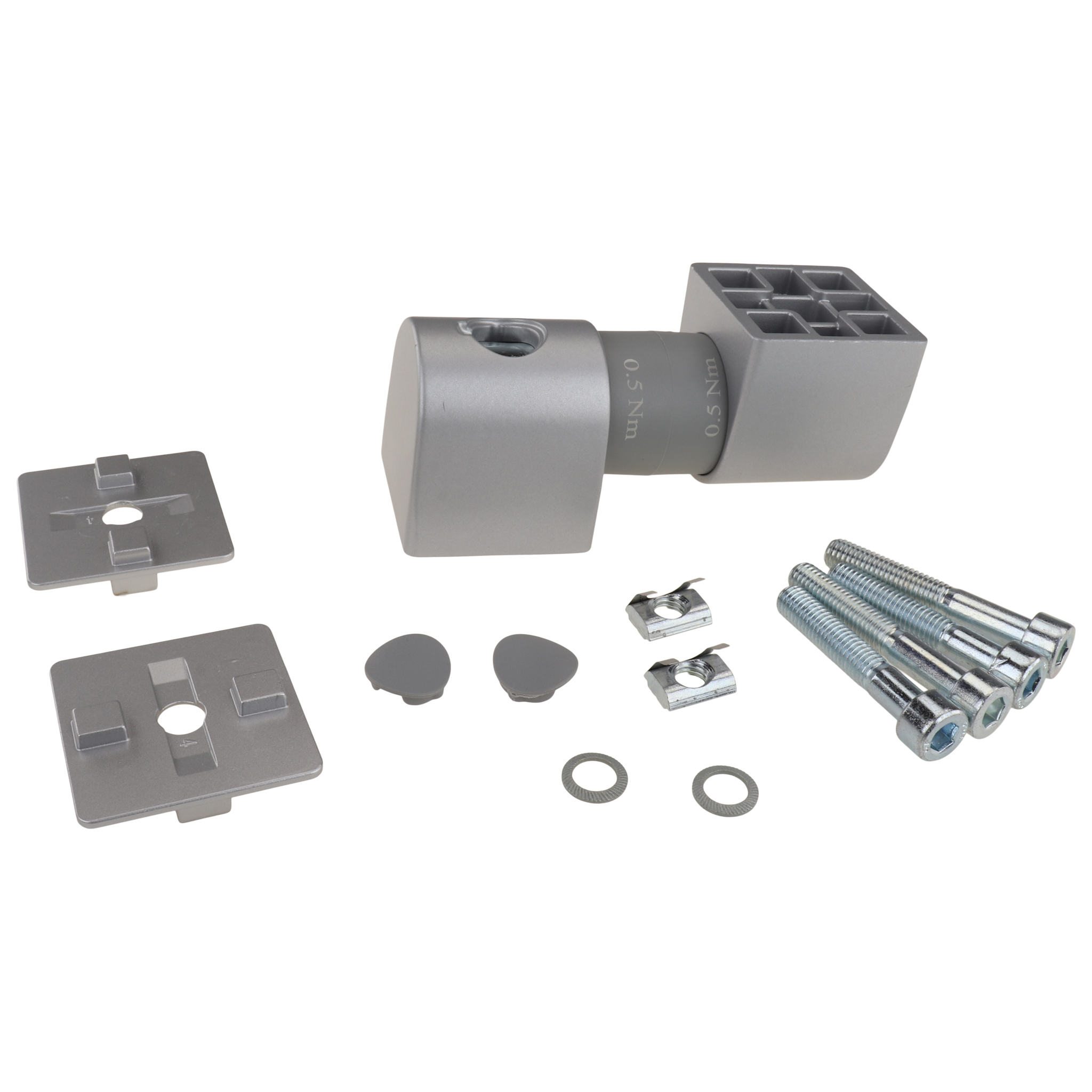

Friction Joint, 45x45x115, Aluminum die-cast, laquered, aluminum colored

Selection: Widerstandsmoment = 0,5 Nm

Friction Joint, 45x45x115, Aluminum die-cast, laquered, aluminum colored, Connection joint with friction for the creation of system arms using profile piecespivotable 360°Friction joint can be attached lateral, transverse, or on the face of the profileif attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)

From €86.48*

Details

End Friction Joint, 40x40x130, Aluminum die-cast, laquered, aluminum colored

Selection: Widerstandsmoment = 0,5 Nm

End Friction Joint, 40x40x130, Aluminum die-cast, laquered, aluminum colored, Connection joint with friction for the creation of system arms using profile piecespivotable 360°End side can be attached lateral or transverse on the profile slotfriction axis is positioned at right angles to the profileFriction joint side can be attached lateral, transverse, or on the face of the profileif attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)

From €83.15*

Details

Friction Joint, 40x40x220, Aluminum die-cast, laquered, aluminum colored

Selection: Widerstandsmoment = 2 x 6,0 Nm

From €149.67*

Details

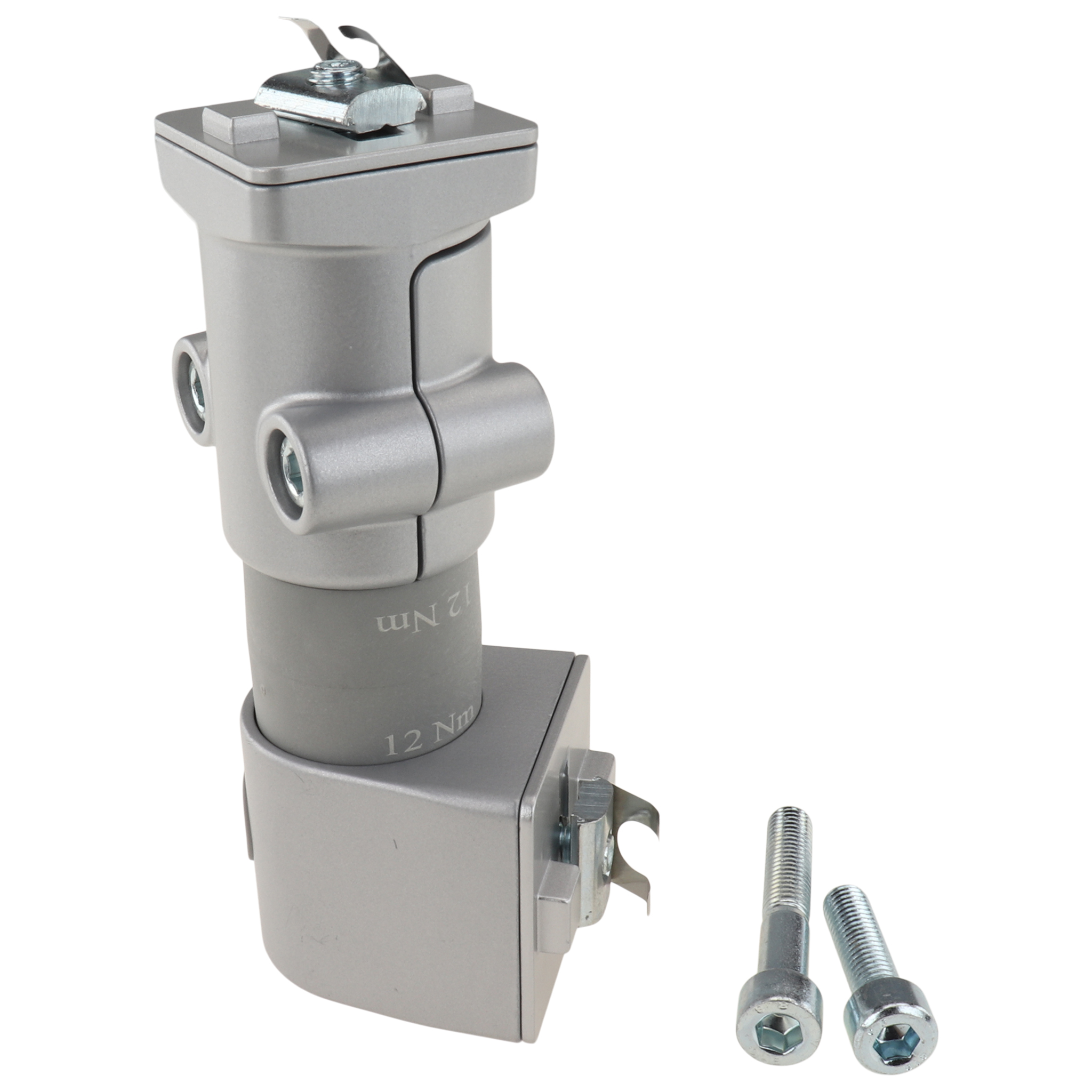

End Friction Joint, 40x40x150, Aluminum die-cast, laquered, aluminum colored

Selection: Widerstandsmoment = 12,0 Nm

End Friction Joint, 40x40x150, Aluminum die-cast, laquered, aluminum colored, Connection joint with friction for the creation of system arms using profile piecespivotable 360°End side can be attached lateral or transverse on the profile slotfriction axis is positioned at right angles to the profileFriction joint side can be attached lateral, transverse, or on the face of the profileif attached on the front face, the core hole of the respective profile must be M8 threaded (min. 20 mm deep)

From €83.15*

Details

Friction Joint, 45x45x115, Aluminum die-cast, laquered, aluminum colored

Selection: Widerstandsmoment = 6,0 Nm

From €86.48*

Details

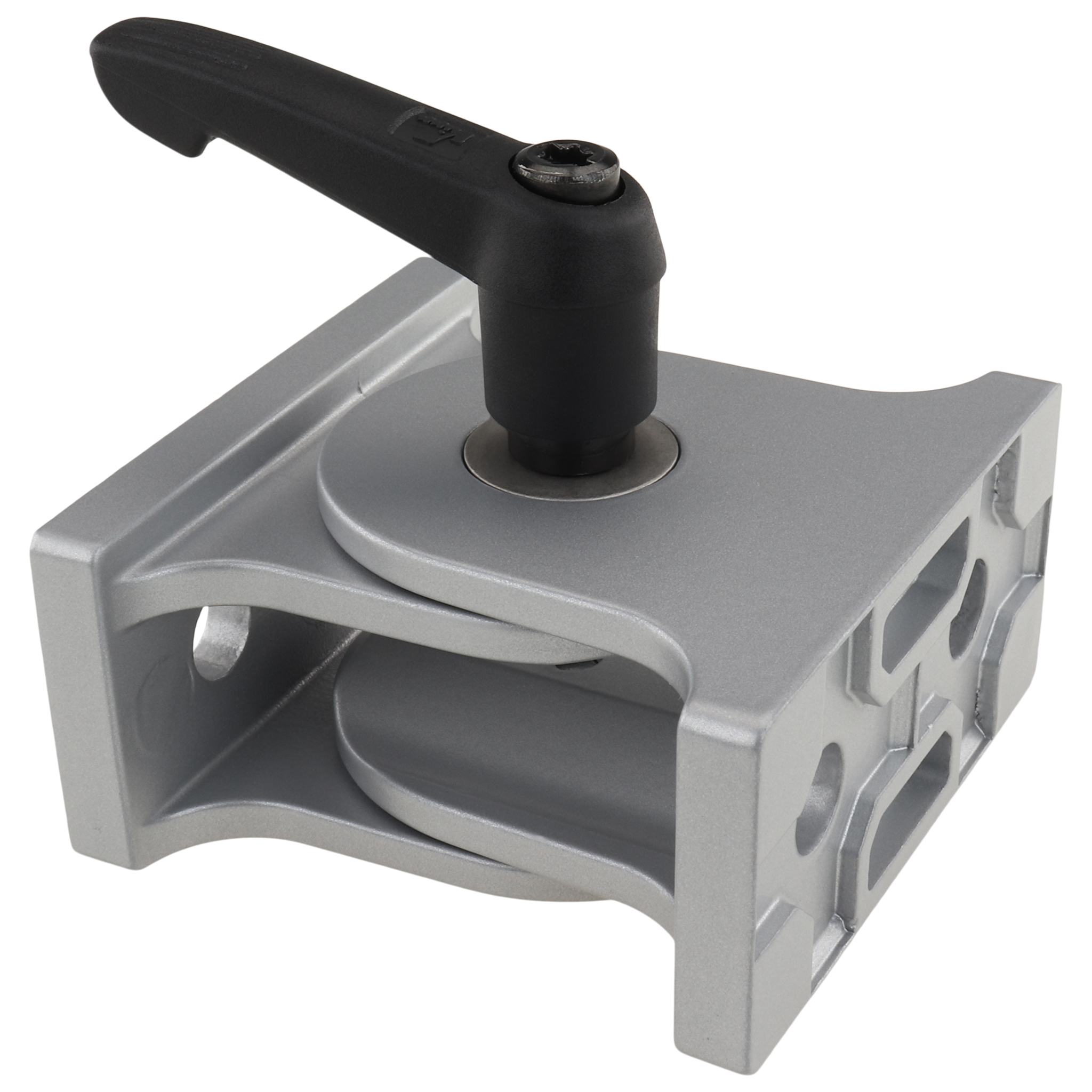

Pivot Joint, 30x60x45, Aluminum die-cast, powder-coated, aluminum colored

Selection: Nut -

Pivot Joint, 30x60x45, Aluminum die-cast, powder-coated, aluminum colored, For connection of two profiles or panelswith attachment at any angleby tightening or loosening the screws and the locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position

Variants from €25.23*

From €29.00*

Details

Friction Joint, 45x45x160, Aluminum die-cast, laquered, aluminum colored

Selection: Widerstandsmoment = 6,0 Nm

From €106.43*

Details

Friction Joint, 45x45x230, Aluminum die-cast, laquered, aluminum colored

Selection: Widerstandsmoment = 2 x 3,0 Nm

From €152.99*

Details

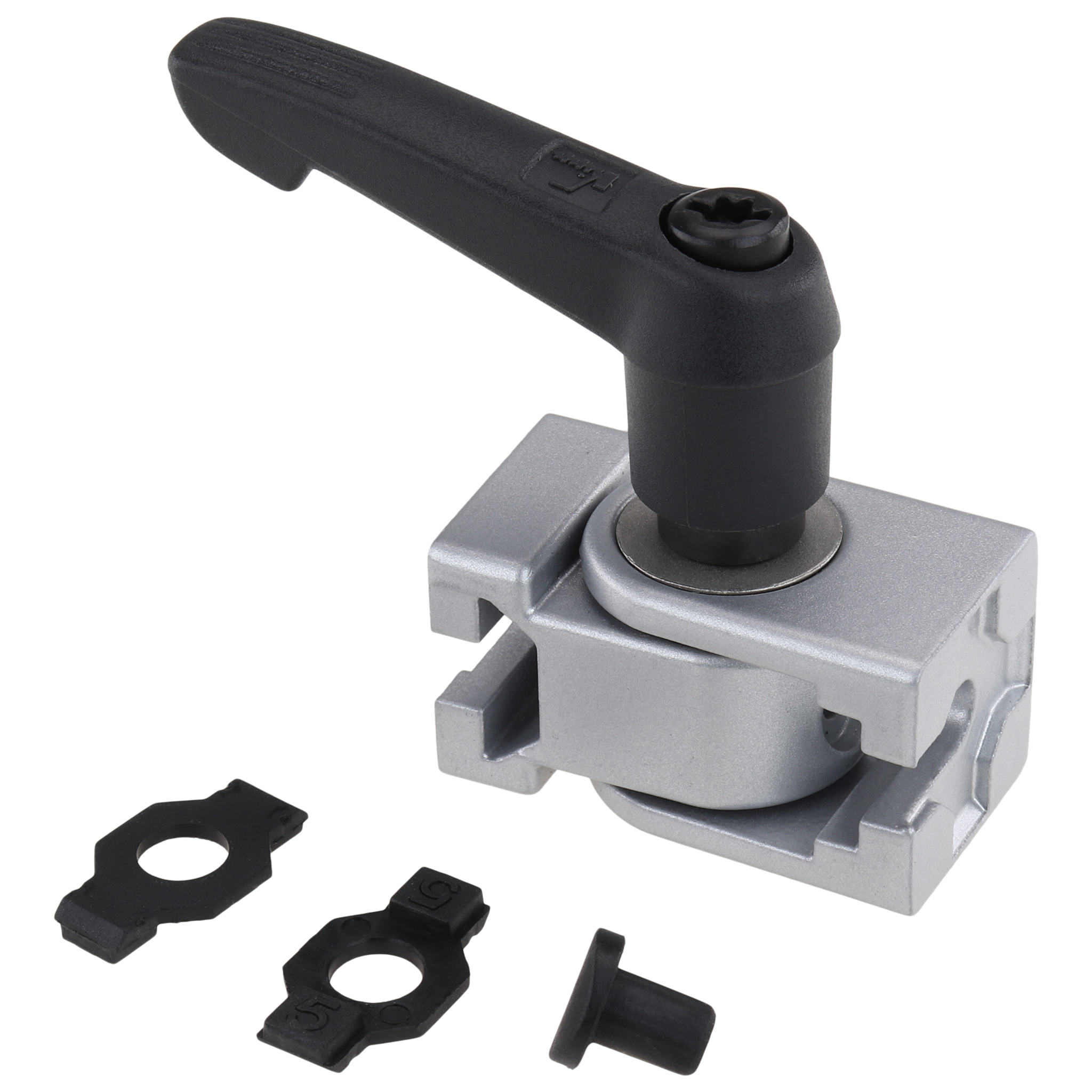

Pivot Joint, 20x20x30, Aluminum die-cast, powder-coated, aluminum colored

Selection: mit Klemmhebel | Slot: Typ I - Nut 5

Pivot Joint, 20x20x30, Aluminum die-cast, powder-coated, aluminum colored, For connection of two profiles or panelswith attachment at any anglewith separate slot fixing for slot 5 and slot 6by tightening or loosening the screws and the locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position

Variants from €13.84*

From €23.19*

Details
